3.3 - Inverter Mounting Bracket

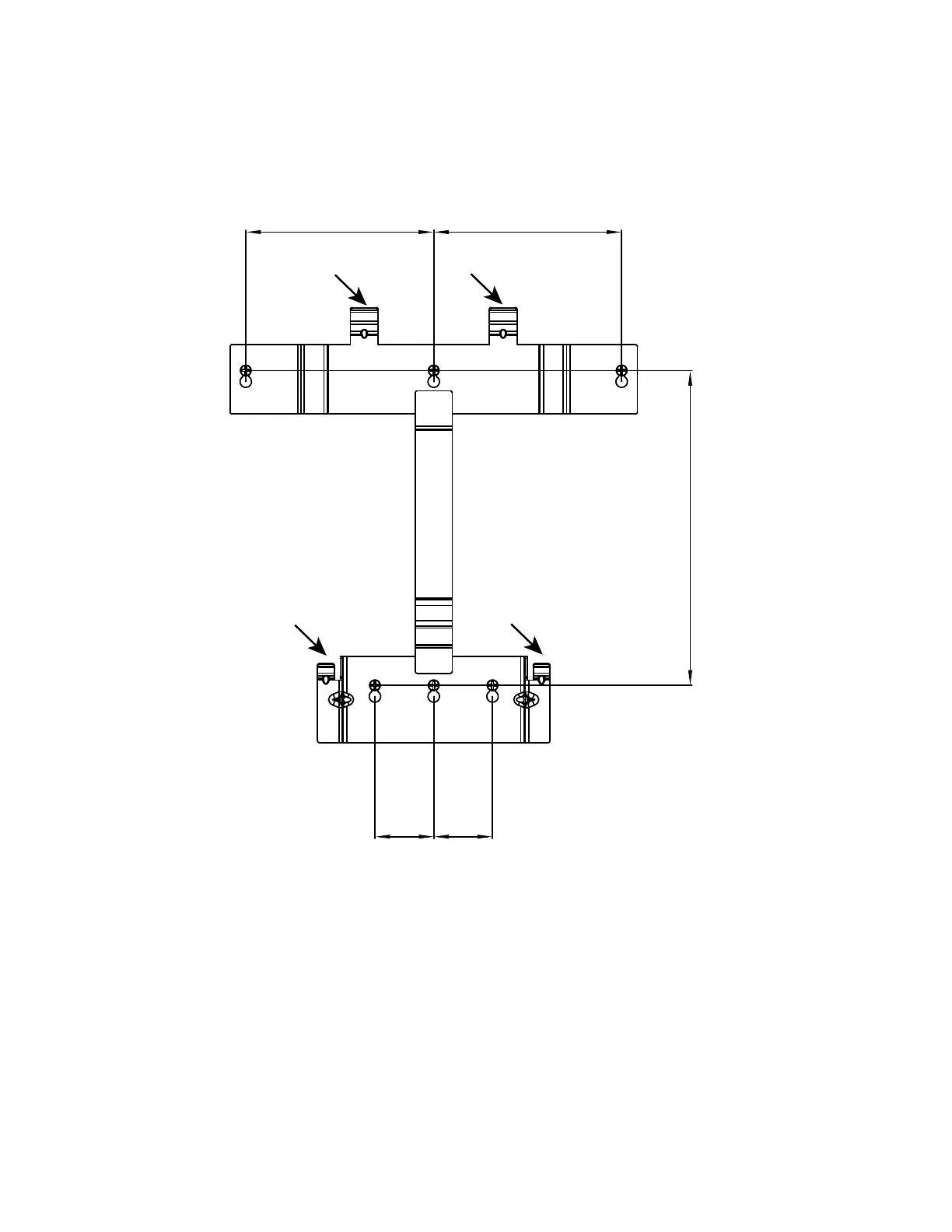

Figure 3-5 displays the Inverter Mounting Bracket for the SolarCity H6 inverter, with arrows
displaying the locations of the top and bottom inverter hooks.
Figure 3-5: SolarCity H6 Inverter Mounting Bracket with hooks
The Inverter Mounting Bracket includes the following features:
• Horizontal mounting holes spaced 16” (406mm) apart on center. Use these holes when
mounting the SolarCity H6 inverter on a standard wall with 16” stud spacing.
• Top and bottom center holes for use when mounting the SolarCity H6 inverter to a wall
with 24” stud spacing.
13.4” (340mm)
2.5”
63.5mm
2.5”
63.5mm
8” (203mm)
8” (203mm)
