9.5.2 - PV Voltage and AC Output Power
“AC Output power vs. PV input voltage range” on page 97
displays how changes in PV input
voltage affect AC power output based on current input limitations.

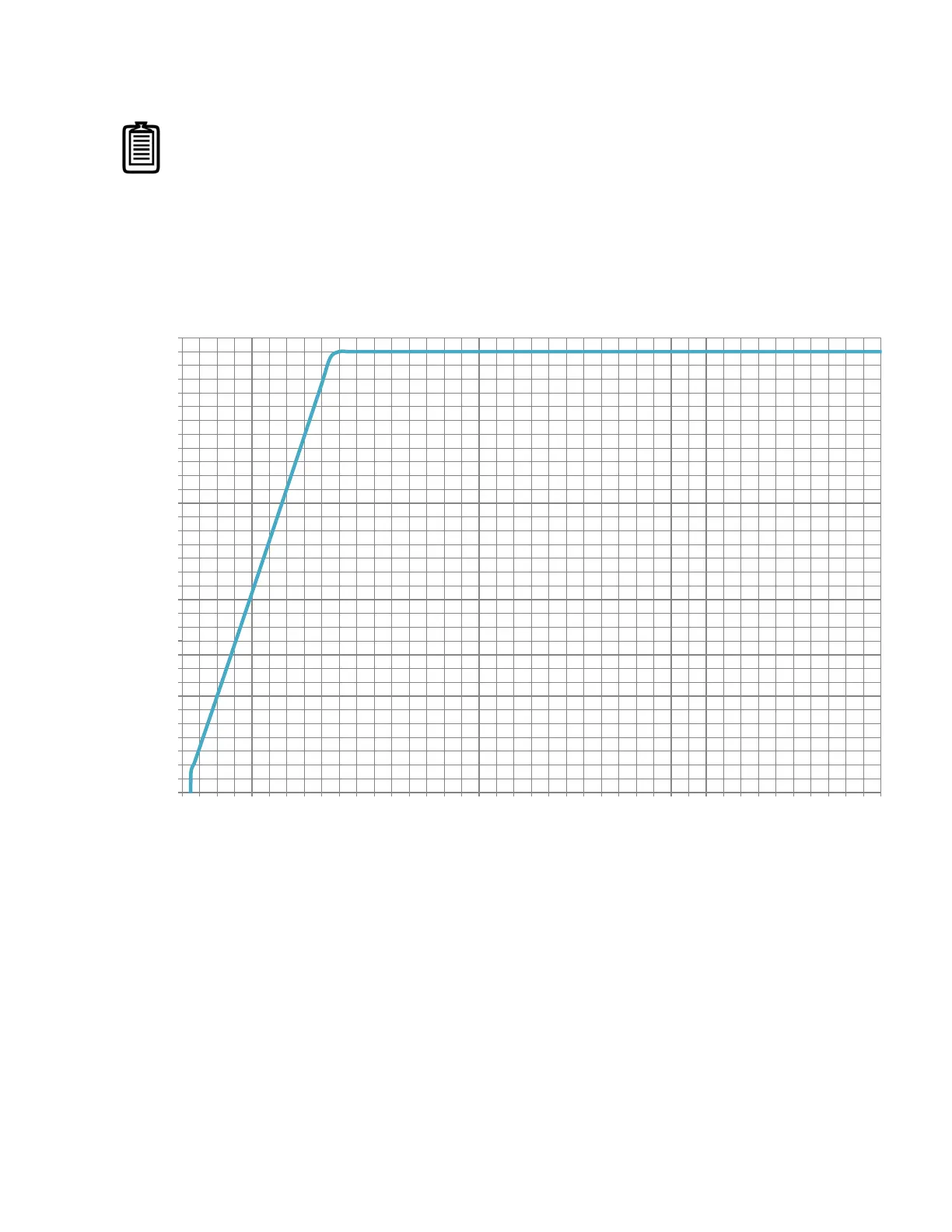

Figure 9-2: AC Output power vs. PV input voltage range
Note: SolarCity H6 inverter thermal de-rating may also be affected by
thermal de-rating of the battery pack. Please see the thermal guidelines
for the battery pack.
