SolarCity H6 - 5.8 AC Voltage Connections

57
Copyright 2017 SolarCity Corporation. All rights reserved.
Chapter 1 - Welcome
5.1 - System Wiring Diagrams
Figure 5-1 and Figure 5-2 display wiring diagrams for a complete SolarCity H6 inverter
installation.

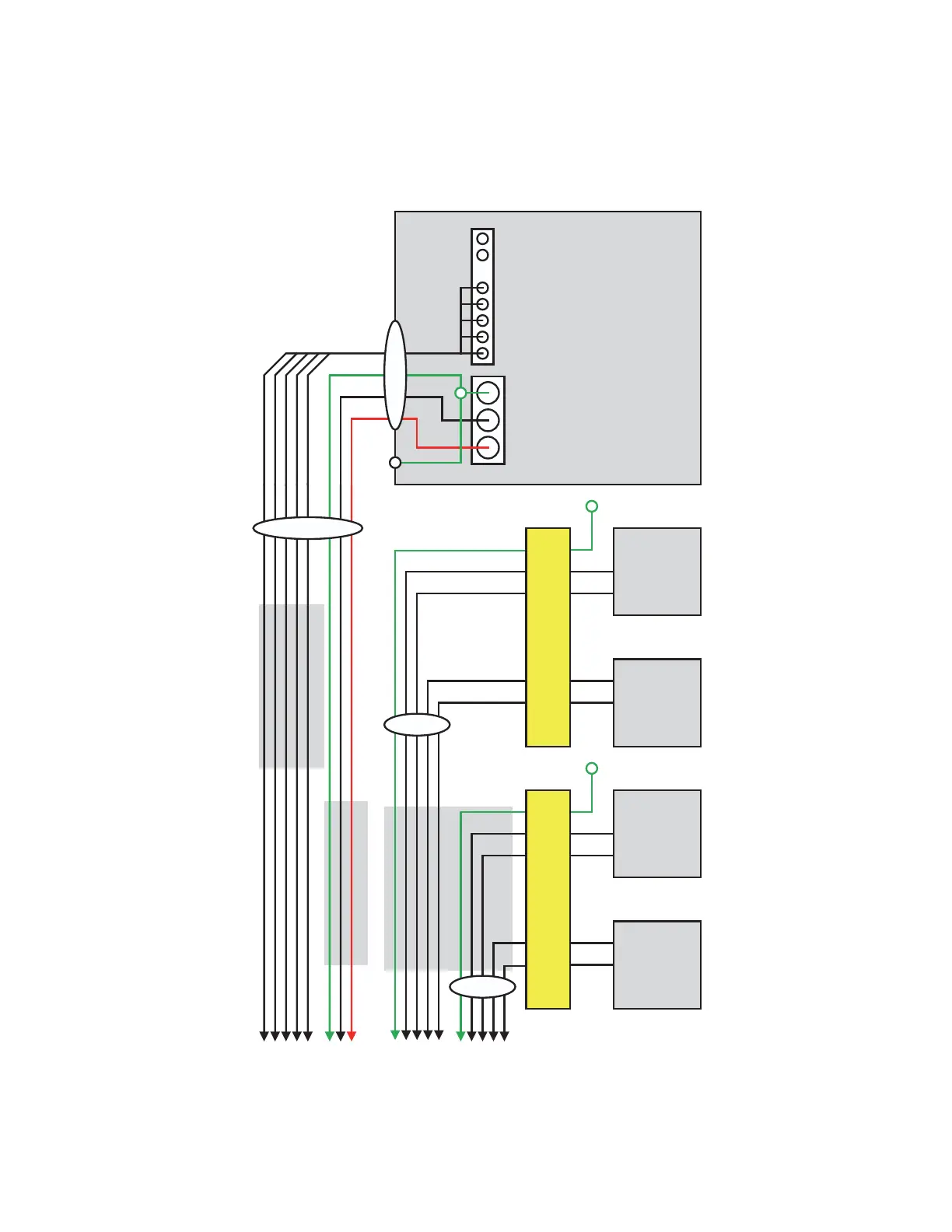

Figure 5-1: SolarCity H6 installation wiring diagram (1 of 2)
BATTERY PACK
PV
STRING
2B
PV
STRING
2A
PV
STRING
1B
PV
STRING
1A
MODULE FRAME GROUND
RAPID SHUTDOWN BOX
PLC RECEIVER
RAPID SHUTDOWN BOX
PLC RECEIVER
¾” CONDUIT
¾” CONDUIT
¾” CONDUIT
PV1A +
PV1A -
PV1B +
PV1B -
PV1 GND
PV2A +
PV2A -
PV2B +
PV2B -
PV1 GND
AWG 8-12 SINGLE WIRE
HV BATT +
HV BATT -
BATT GND
12V AUX
12V AUX GND
ENABLE/DISABLE
CAN-H
CAN-L
AWG 8-12 SINGLE WIRE
AWG 18-22 SINGLE WIRE
MAXIMUM CABLE LENGTH = 10M (30FT); 1.5M (5FT) RECOMMENDED
SEE FIGURE 5-2
MODULE FRAME GROUND
