SolarCity H6 - Figure 3-19: Backup Load Connections

33
Copyright 2017 SolarCity Corporation. All rights reserved.
Chapter 1 - Welcome

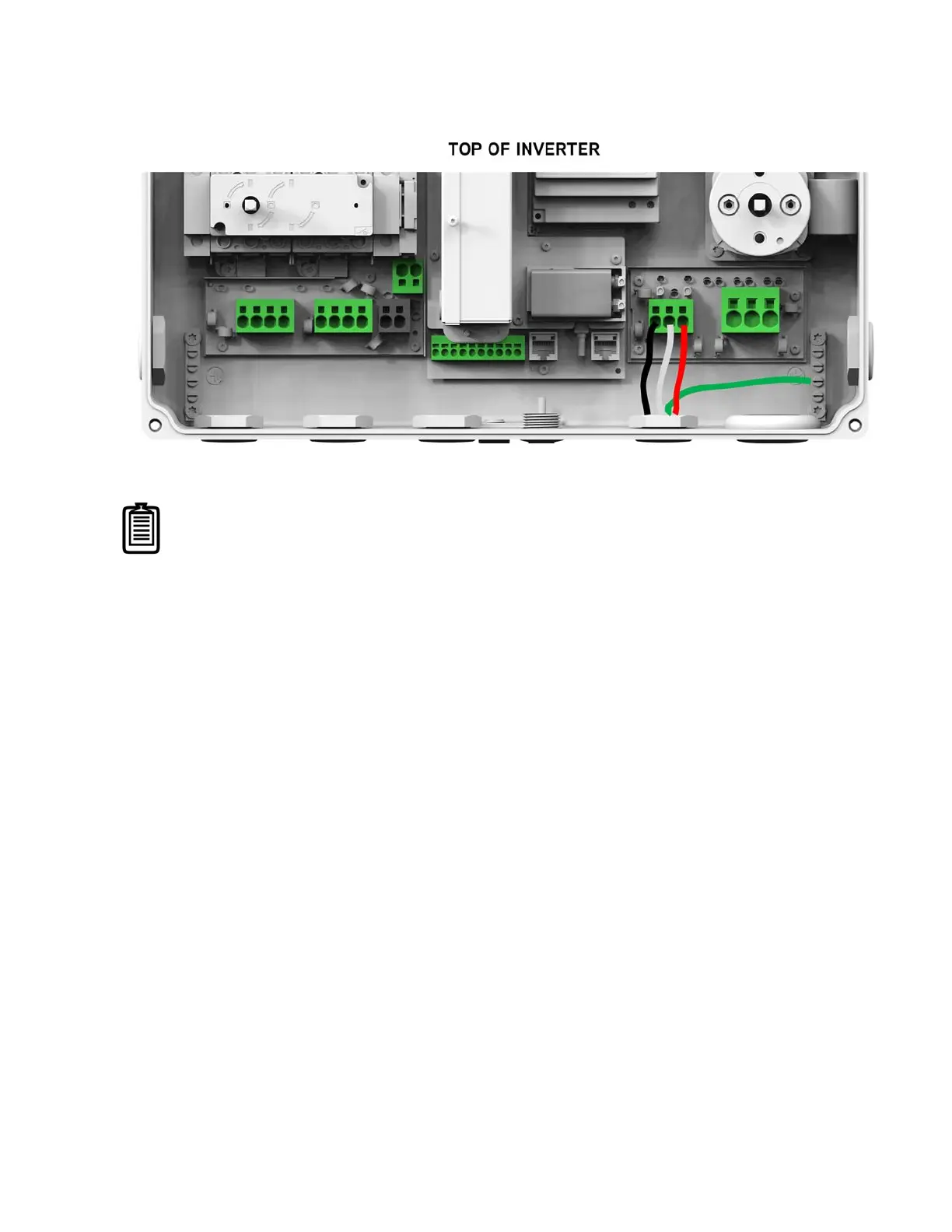

Figure 3-19: Backup load connections
Note: You may be able to route the backup panel and AC grid wiring
together using the 1” conduit opening on the bottom right of the wiring
box.
