3.2 - Dimensions & Clearances
This section displays the physical dimensions of the SolarCity H6 inverter and provides
minimum clearance requirements.
3.2.1 - Inverter Dimensions
Figure 3-2 and Figure 3-3 display the physical dimensions of the SolarCity H6 inverter.

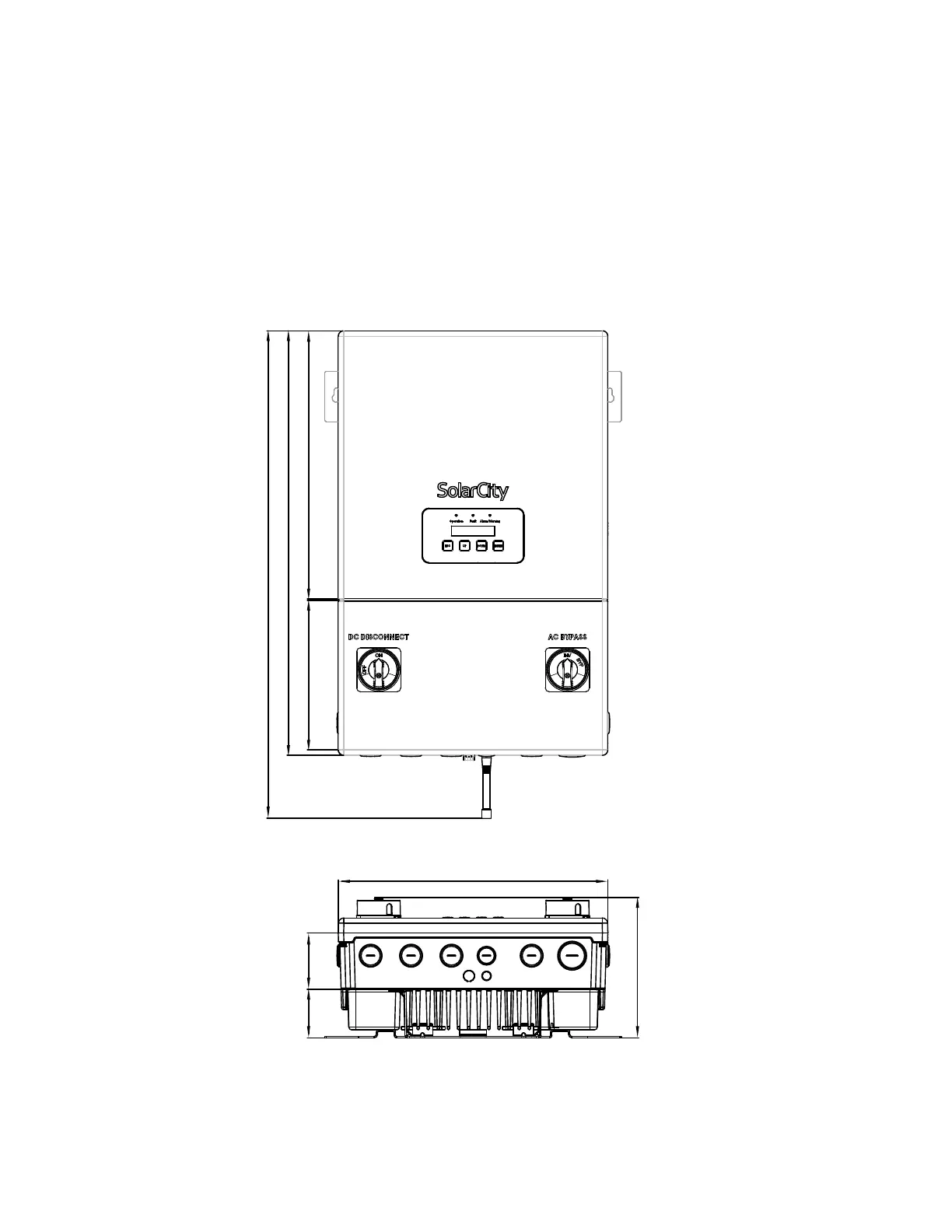

Figure 3-2: SolarCity H6 inverter dimensions (front view)
Figure 3-3: SolarCity H6 inverter dimensions (bottom view)
28.5” (723.5mm)
24.8” (630mm)
15.7” (400mm)
9.1” (230mm)
15.7” (400mm)
2.8”
(72mm)
3.3”
(84mm)
8.2” (208.3mm)
