9.5.3 - PV Input Voltage and Efficiency
The SolarCity H6 inverter achieves maximum efficiency at PV input voltages ranges between
380VDC and 420VDC, as shown in Figure 9-3 .

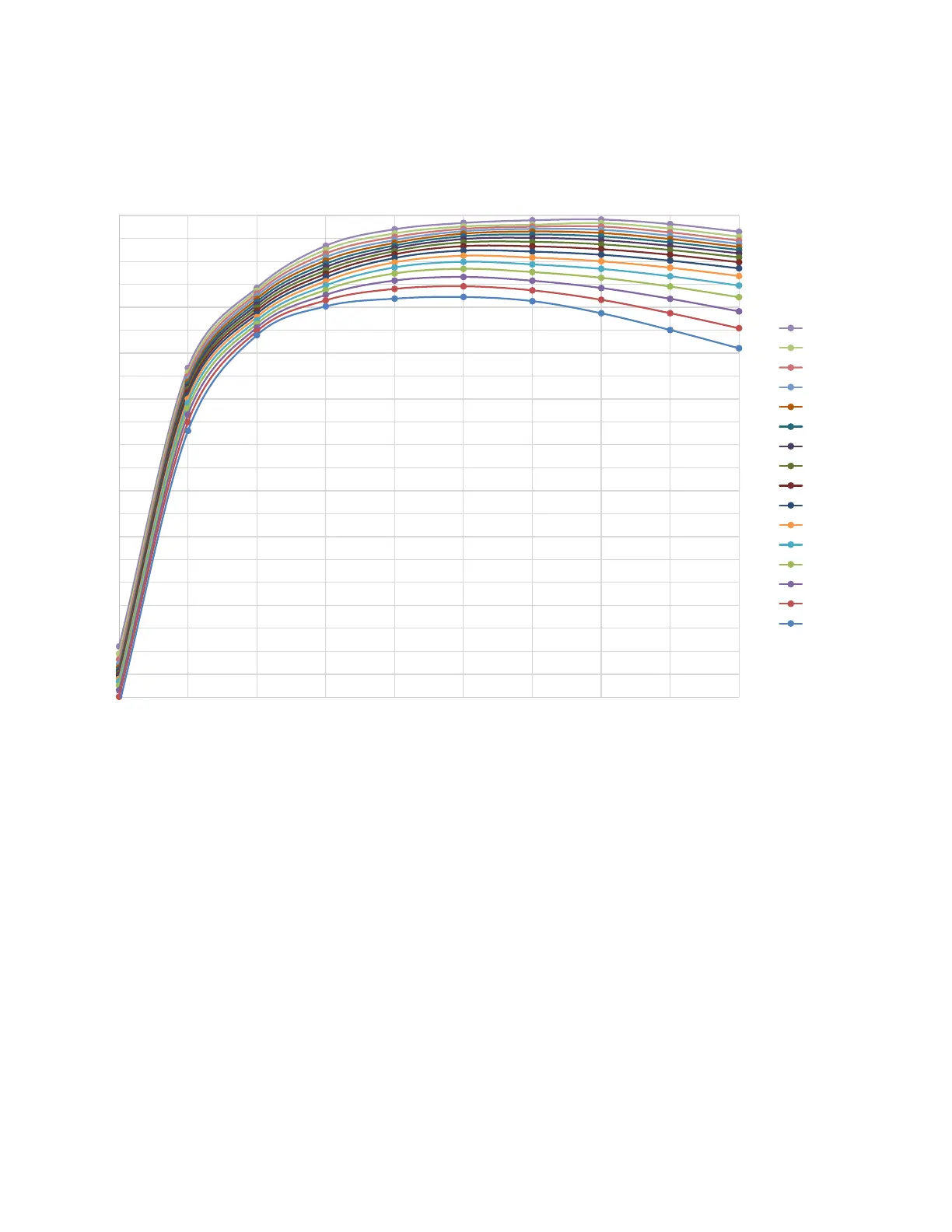

Figure 9-3: CEC Efficiency vs. PV input voltage
92.00%
92.25%
92.50%
92.75%
93.00%
93.25%
93.50%
93.75%
94.00%
94.25%
94.50%
94.75%
95.00%
95.25%
95.50%
95.75%
96.00%
96.25%
96.50%
96.75%
97.00%
97.25%
10 % Pwr 20 % Pwr 30 % Pwr 40 % Pwr 50 % Pwr 60 % Pwr 70 % Pwr 80 % Pwr 90 % Pwr 100 % Pwr
EĸĐienĐLJ
PerĐĞntage of output power
480 V
460 V
440 V
420 V
400 V
380 V
360 V
340 V
320 V
300 V
280 V
260 V
240 V
220 V
200 V
180 V
