SolarCity H6 - Refit Wiring Box Cover; Figure 5-3: Removing the Wiring Box Cover and Close-Up of Screw Head

146 pages

To Next Page

To Previous Page

H6 Hybrid Inverter - Installation & Operation Guide

5. Lift the bottom of the cover up and then move the cover outward and place in a safe

location.

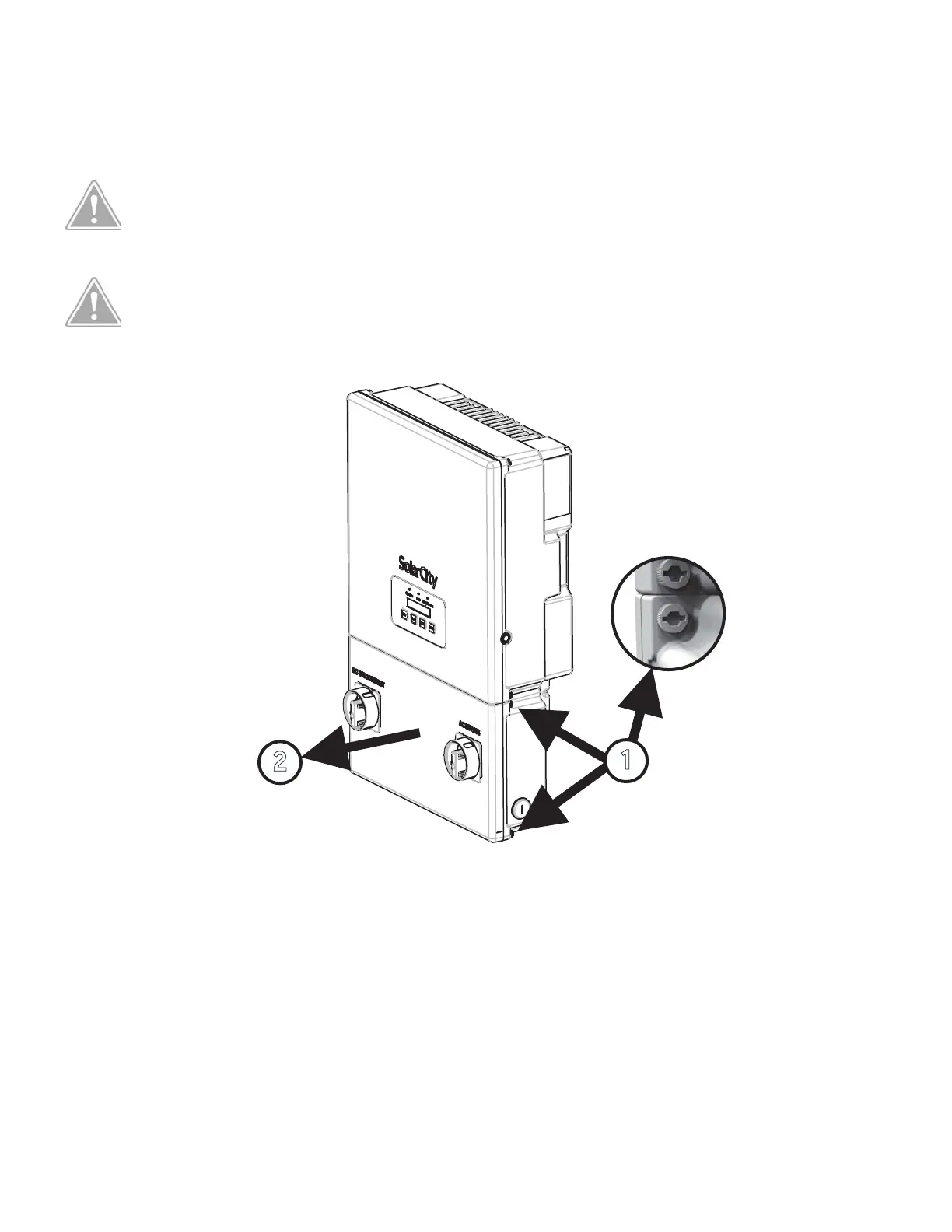

Figure 5-3: Removing the wiring box cover and close-up of screw head

5.2.2 - Refit Wiring Box Cover

To replace the wiring box cover on the SolarCity H6 inverter:

1. Place the cover in position against the inverter, making sure that the DC Disconnect

Switch is in the OFF position.

2. Place the AC Bypass Switch in the INV position.

CAUTION: DO NOT OPEN THE WIRING BOX DURING RAIN, WHEN THE

AMBIENT HUMIDITY EXCEEDS 95%, OR AT TEMPERATURES BELOW -20 °C (-

4 °F).

CAUTION: GROUND YOURSELF BEFORE TOUCHING ANY ELECTRONIC

COMPONENTS WITHIN THE INVERTER.
