Installation 1250 Frequency Response Analyzer
2-6 CWB / 1250_Op / Issue 9A
2.5.1 RACK DIMENSIONS
The internal rack dimensions required for fitting the 1250 are:
610mm (24 ins) deep X 485mm (19 ins) wide for fixed rail mounting, and
760mm (30 ins) deep X 485mm (19 ins) wide for telescopic slide mounting (using either
kit)
2.5.2 VENTILATION
Ensure that the rack in which a 1250 is mounted has adequate ventilation, either by an
extractor fan or by having the rear of the rack open.
2.5.3 FITTING TELESCOPIC SLIDE MOUNTING KIT 12505B (ACCURIDE)
1. Remove the following items from the unit, as shown in Fig. 2.2:
a. Finisher Trim (two off)
Retain the four M4 x 16 panhead screws and M4 crinkle washers for securing the
rack ears.
b. Handle and Handle Trim
c. Side Trim
Located on the opposite side to the handle, it is normally secured by a pip on the
finisher trim, and slides out backwards.
d. Feet (four off) and Tilt Bar
The tilt bar is secured by the two front feet.

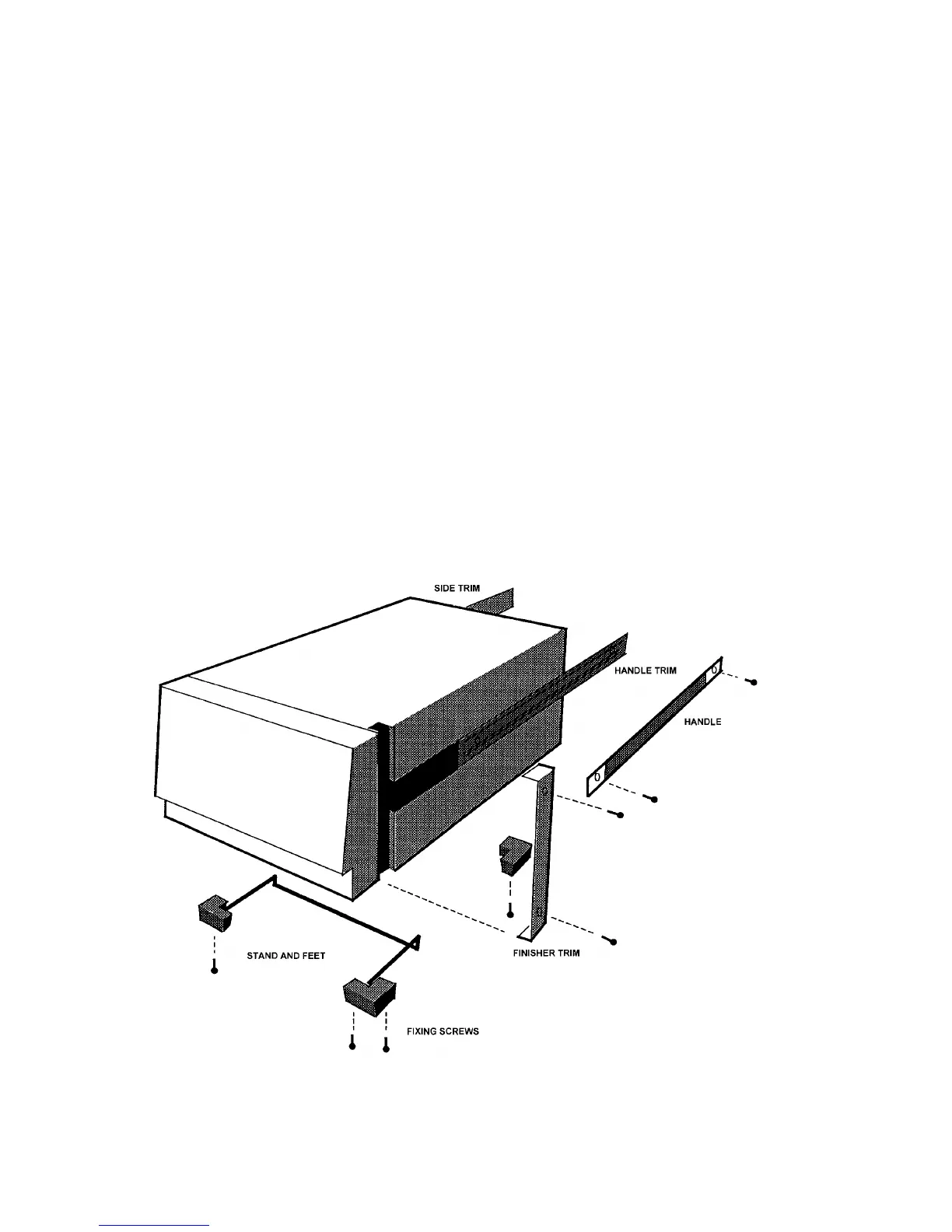

Figure 2.2 - Removal of trims, handle, feet, and tilt bar
