1250 Frequency Response Analyzer Installation
CWB / 1250_Op / Issue 9A 2-7
2. Fit the following items to the unit, as shown in Fig. 2.3:
a. Rack Ears (two off)
Fit the rack ears in place of the finisher trim, using the same fixings.
The ears may he fitted as illustrated, or with their flanges facing the rear of the
1250, which causes the unit to stand out further in the rack, allowing use of racks
too shallow for normal mounting.
b. Slide Mounting Bar
Screw the bar to the chassis in the former position of the handle, using the four
M4x12 csk screws provided. The bar fits correctly only one way round, with
threaded holes nearest the front.
The corresponding mounting bar on the left-hand side of the unit is supplied
already fitted behind the side trim (part no. 12502019B), it is slightly narrower than
the right-hand bar.

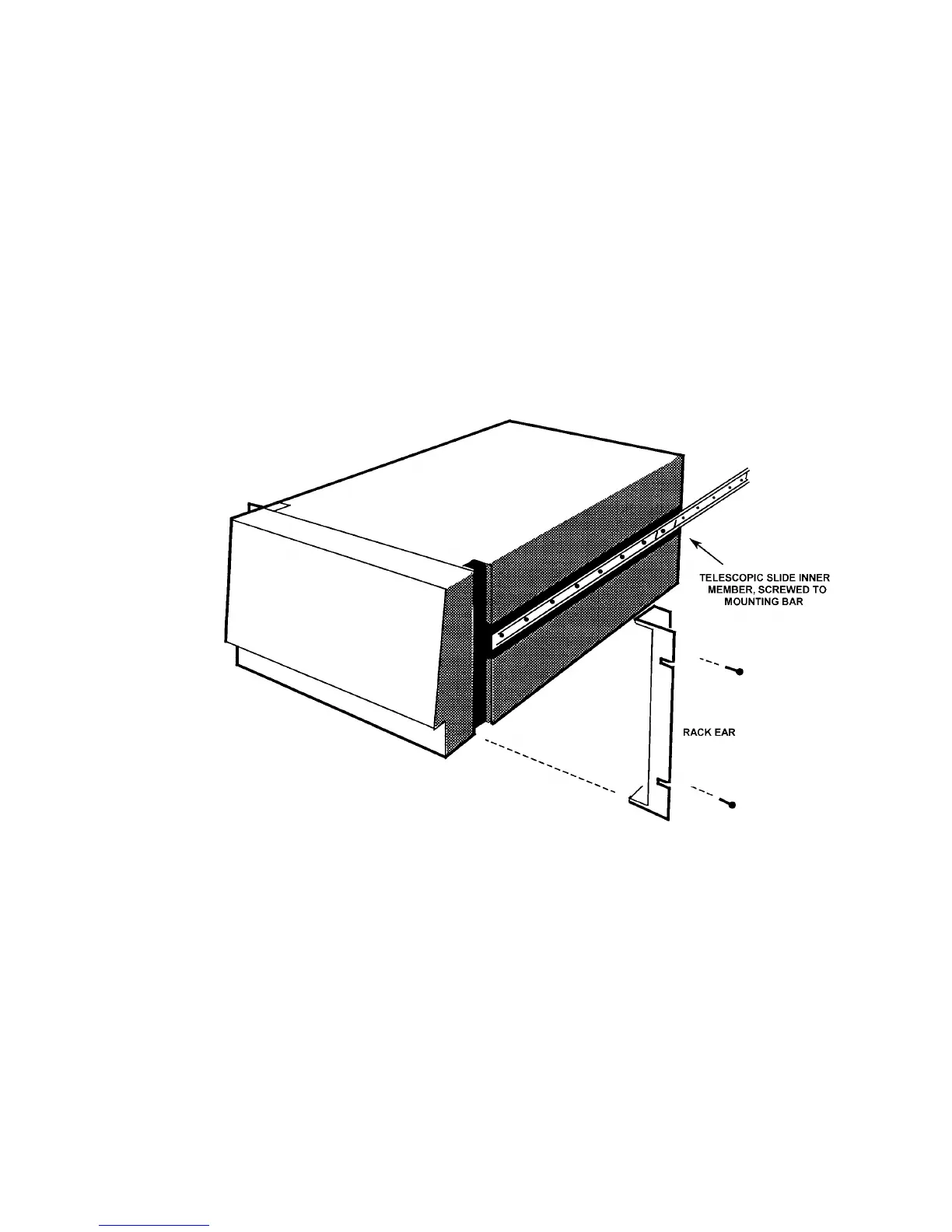

Figure 2.3 - Fitting rack ears and telescopic slide inner members
