Operation 5
Lifting
Lifting
Lifting system variants
Lifting operations are largely dependent on
the following factors:
• The mast with which your truck is equipped.
See ⇒ Chapter "Lift mast versions", P. 5-95.
• The lifting system with which your truck is
equipped. See ⇒ Chapter "Controls, lifting
system", P. 5-98.
Regardless of the individual equipment of
your forklift truck, the basic specifications
and procedures are to be complied with. See
⇒ Chapter "Safety regulations when handling
loads", P. 5-102.
Lift mast versions
The following lift masts may be installed in
your truck:

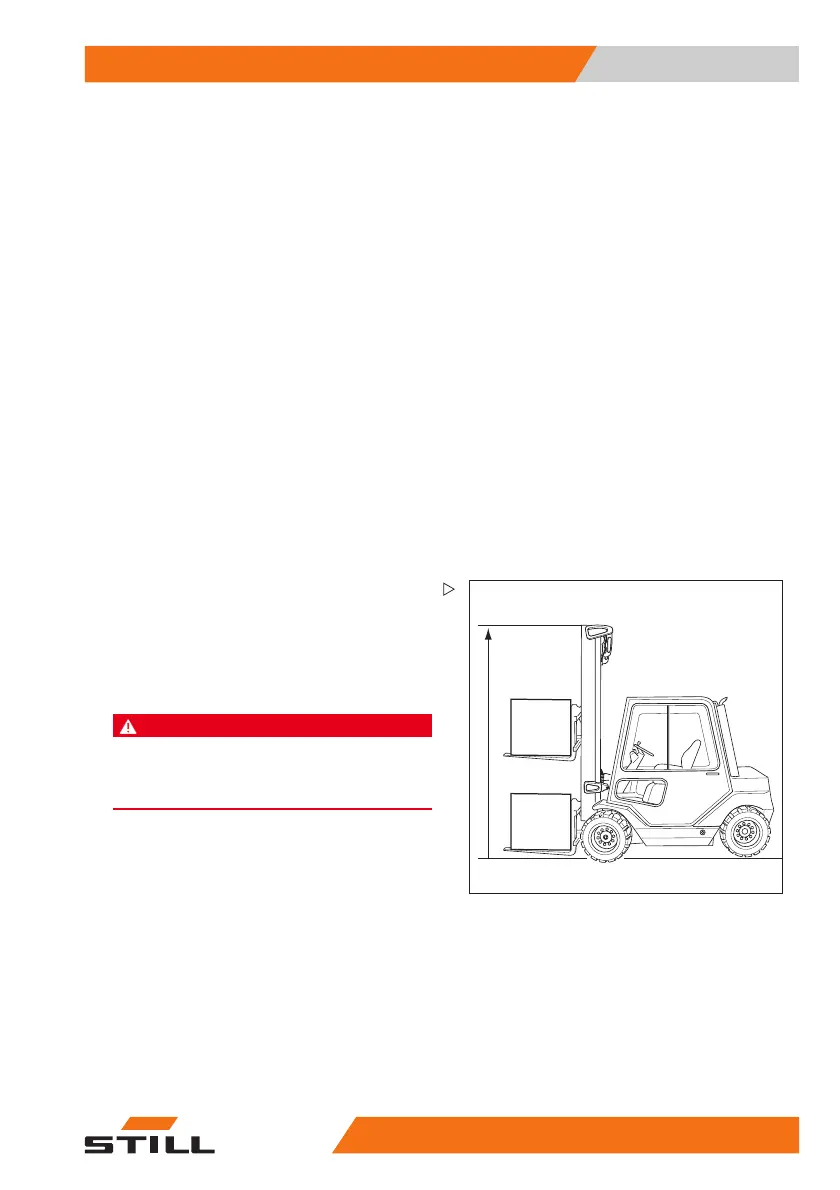

7071_003-058
1
Telescopic mast
When moving the "lift-lower" operating lever
backwards, the mast rises via two outer cylin-
ders and brings the fork carriage with it via
the chains (the fork carriage rises at twice the
speed of the inner mast).
DANGER
Risk of accident!
With low ceilings, be aware that the inner mast lift
(1) can be higher than the fork carriage.
171673 [EN] 95
