Maintenance 6
Maintenance as required
7071_003-124
1
2
3
4
0

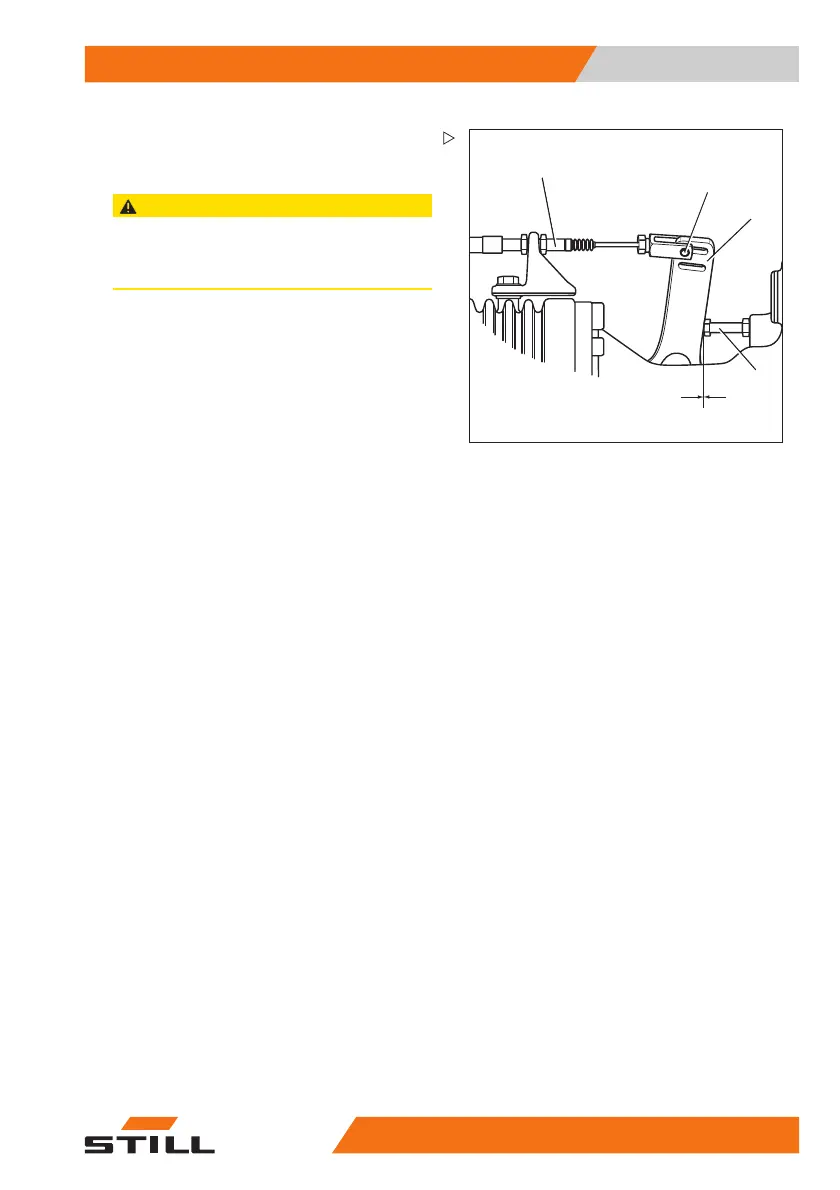

– Check whether the clearance between the
linkage bar (lever) (3) and the adjusting
screw (4) is 0 mm.
CAUTION
Risk of damage to components.
The adjusting screw (4) is set at the factory and may
not be readjusted.
– Check the clearance between the fork clevis
(2) and linkage bar (lever) (3).
Set value: 0–1 mm
– If necessary, adjust the clearance at the
threaded adjusting sleeve (1).
Lubricating joints and controls
– Oil or grease other bearings and joints
according to the maintenance data ta-
ble. See ⇒ Chapter "Maintenance data
table", P. 6-186.
• Driver’s seat guide
• Cab door hinges (lubricate grease nipples
with grease)
• Engine bonnet hinges (lubricate grease
nipples with grease)
• Control linkage for valves
Checking the door latch
– Inspect the condition of the catch bolts and
check for wear.
– Check the lock mechanism for easy opera-
tion.
Maintaining the steering axle
Checking the steering axle
– Check rubber elements of the axle tumbler
bearing for condition and wear.
171673 [EN] 211
