Maintenance 6
1000-hour maintenance/annual maintenance
7071_003-116
1

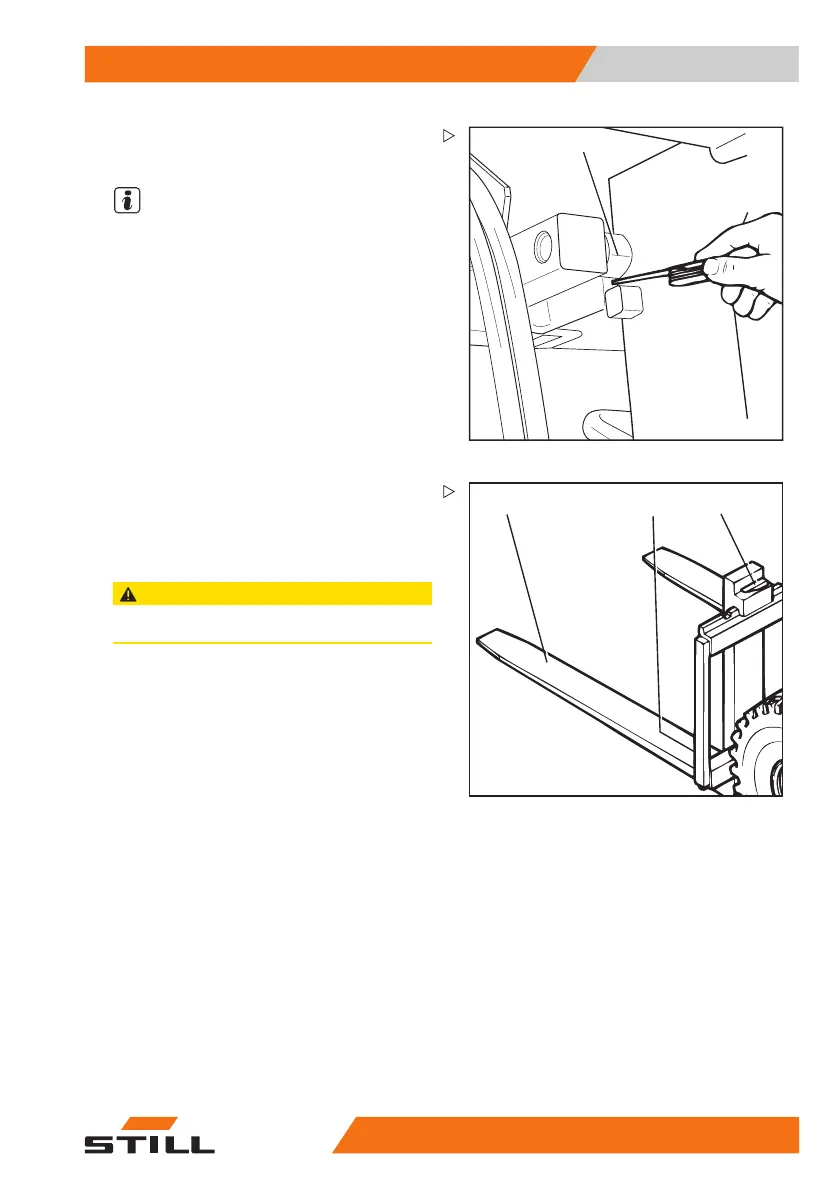

Checking the clearance between
fork carriage stop and run-out stop
NOTE
Always perform this check after making adjust-
ments to the load chains; see ⇒ Chapter "Load
chain maintenance", P. 6-214.
– Extend the fork carriage completely to the
stop in the lift cylinder.
– Check the clearance between the fork car-
riage stop and the roller of the run-out stop
(1) with a feeler gauge.
Clearance: at least 2 mm
1
2 3
7094_842-001
Checking the fork arms
– Check the fork arms (1) for visible deforma-
tions. The wear may not exceed 10% of the
original strength.
CAUTION
Worn fork arms must always be repaired as a pair.
– Check the fork latch (3) function.
– A locking screw (2) against falling out must
be available.
171673 [EN] 233
