Operation 5
Working with loads
2
1
1400
1430
1470
1610
1560 1800 1960 1960
1620 1870 2360
1710 1970 2330 2570
1850 2130 2530
2780
3000
1430
1430
6480
5430
4530
7630
kg
6210_800-003
2730
1610 7080
1610
3780
1000 800
500
1980 2300
3
6030
2220
600
6030
3
2
600
1
2220kg
6210_800-004

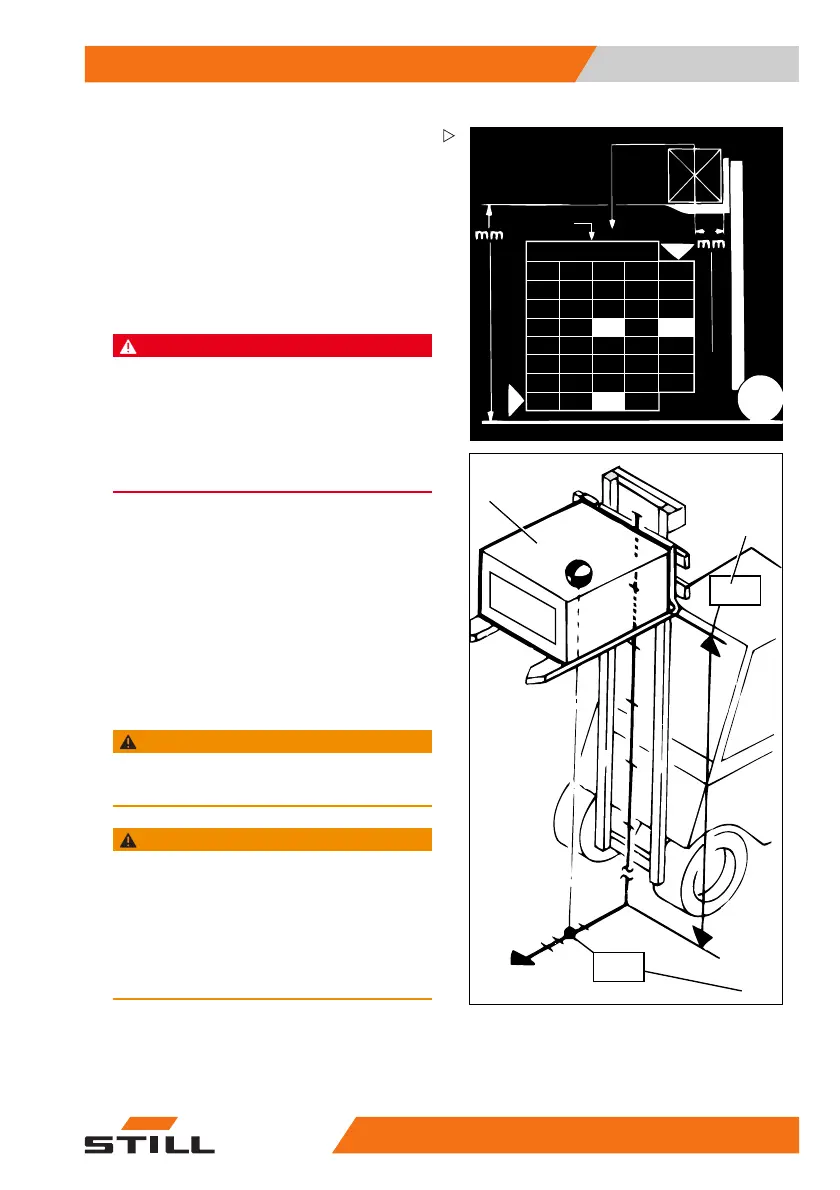

Prior to taking up a load
Load capacity
The load capacity specified for the forklift truck
may not be exceeded. It is affected by the load
centre of gravity and the lift height and possi-
bly the tyres. Observe the capacity plate to the
right of the driver’s compartment. Including
additional weights to increase the load capac-
ity is forbidden.
DANGER
Risk to life
Never exceed the maximum loads indicated there!
These apply for compact and homogenous loads.
Otherwise the stability and strength of the fork arms
and lift mast are not ensured. Improper or false
operation or the boarding of persons to increase
the load capacity is forbidden.
(1) Distance "C" of load centre from fork back
(mm)
(2) Lift height "h" (in mm)
(3) Maximum loads "Q" (in kg)
Example:
Weight of the load to be lifted: 2220 kg (3)
Load distance from the fork back: 600 mm (1)
Permissible lift height: 6030 mm (2)
WARNING
The diagrams show examples. Only the capacity
plates in the vehicle are valid!
WARNING
In the case of attachments (special equipment): do
not exceed the permissible load of the attachments
and the reduced load capacity of the combination of
forklift truck and attachment. Observe the special
capacity plate information specified on the forklift
truck and attachment. Observe the capacity plate
for attachments. The data on the plate is explained
in the example above.
