5 Operation
Driving
Driveways
7071_003-012

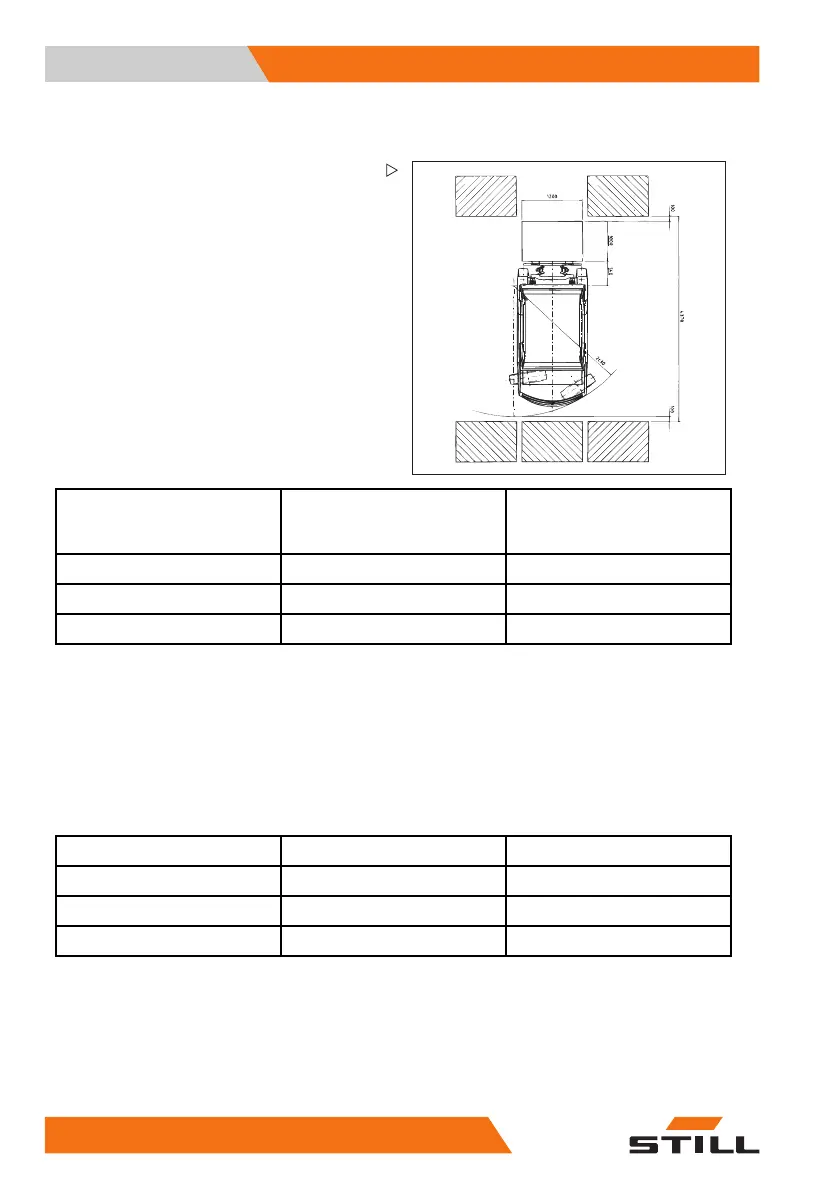

Dimensions of the driveways and aisle
widths
The following dimensions and aisle width
requirements apply under the specified con-
ditions to ensure safe manoeuvring. In each
case, it should be checked whether a larger
aisle width is necessary, e.g. with deviating
load dimensions. Within the EU, there must
be compliance with the 89/654/EEC directive
(minimum safety and health requirements
for the workplace). The respective national
guidelines apply for areas outside of the EU.
The required aisle widths (Ast) depend on the
dimensions of the load. For pallets, these are:
Aisle width (mm)
With pallet
1000x1200
crosswise
With pallet
800x1200
lengthwise
R70-40T 4418 4618
R70-45T 4470 4670
R70-50T 4510 4710
Theforklifttruckmayonlybeusedondrive-
ways with curves that are not too tight, slopes
that are not too steep, and thoroughfares that
are not too narrow or low.
Drivingonslopes
Thetruckmaybedrivenonthefollowingup-
wards or downwards slopes:
Max. gradient in %
With load Without load
R70-40T 23.5 34
R70-45T 21.6 33
R70-50T 20 32
The upwards and downwards slopes may not
exceed the gradient listed above and should
have a rough surface.
Smooth and gradual transitions should be
provided at the top and bottom of the gradient
78 171673 [EN]
