Display and operating unit
2 3 6 0,4 h
2
12 : 15
1 0 0 %
7311_560-001
1
234 5
6
7
8
10
1112
1314
15
16
17
18
19
20
21
22
23
9

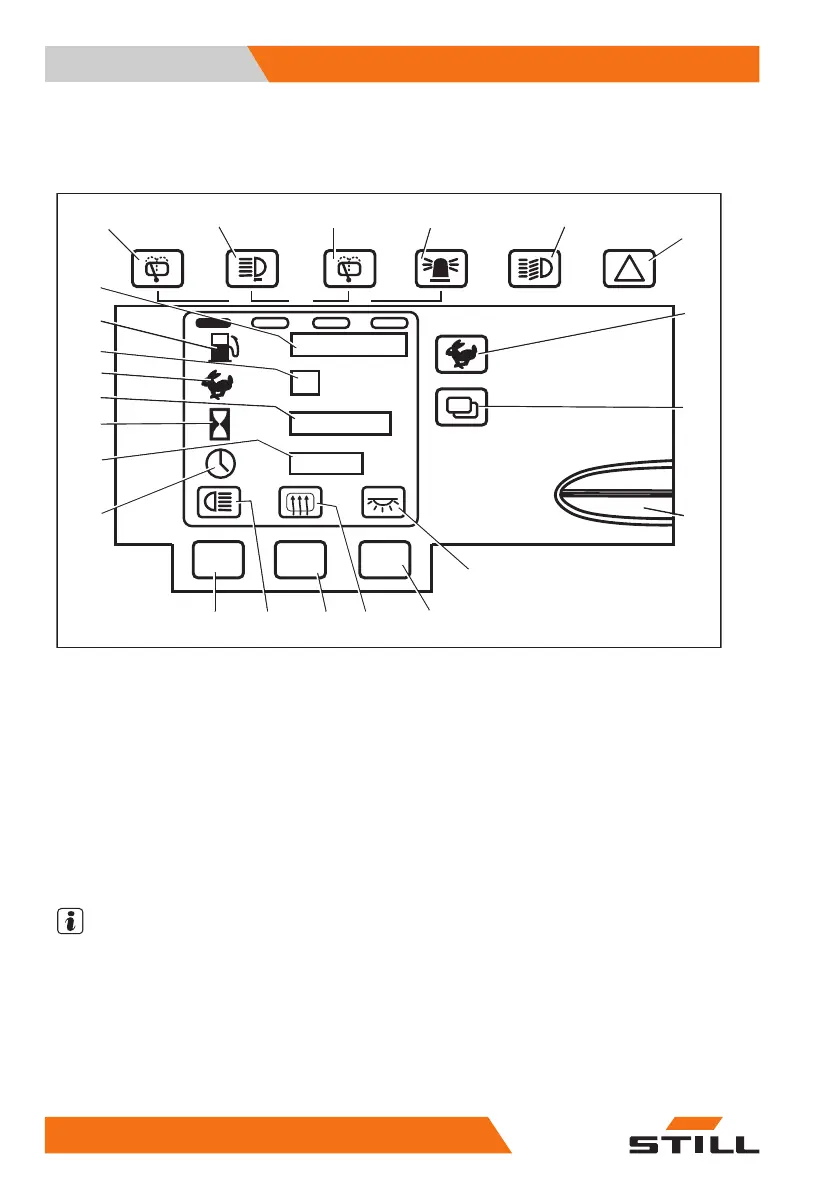

1 Front windscreen wiper switch
2 Work light switch
3 Rear windscreen wiper switch
4 Flashing light switch
5 Lighting switch
6 Switch - hazard warning lights
7 Traction program switch
8 Menu change key
9 Fleet Manager smart card reader
10 Interior light display
11 Interior light switch
12 Rear window heater display
13 Rear window heater switch
14 Rear searchlight display
15 Rear searchlight switch
16 Time symbol
17 Time
18 Operating hours symbol
19 Operating hours display
20 Traction program symbol
21 Current traction program
22 Fuel tank symbol
23 Fuel level in % (special equipment)
NOTE
The displays (10, 12, 14, 23) and buttons
(11, 13, 15) are assigned on the basis of the
additional electrical special equipment.
