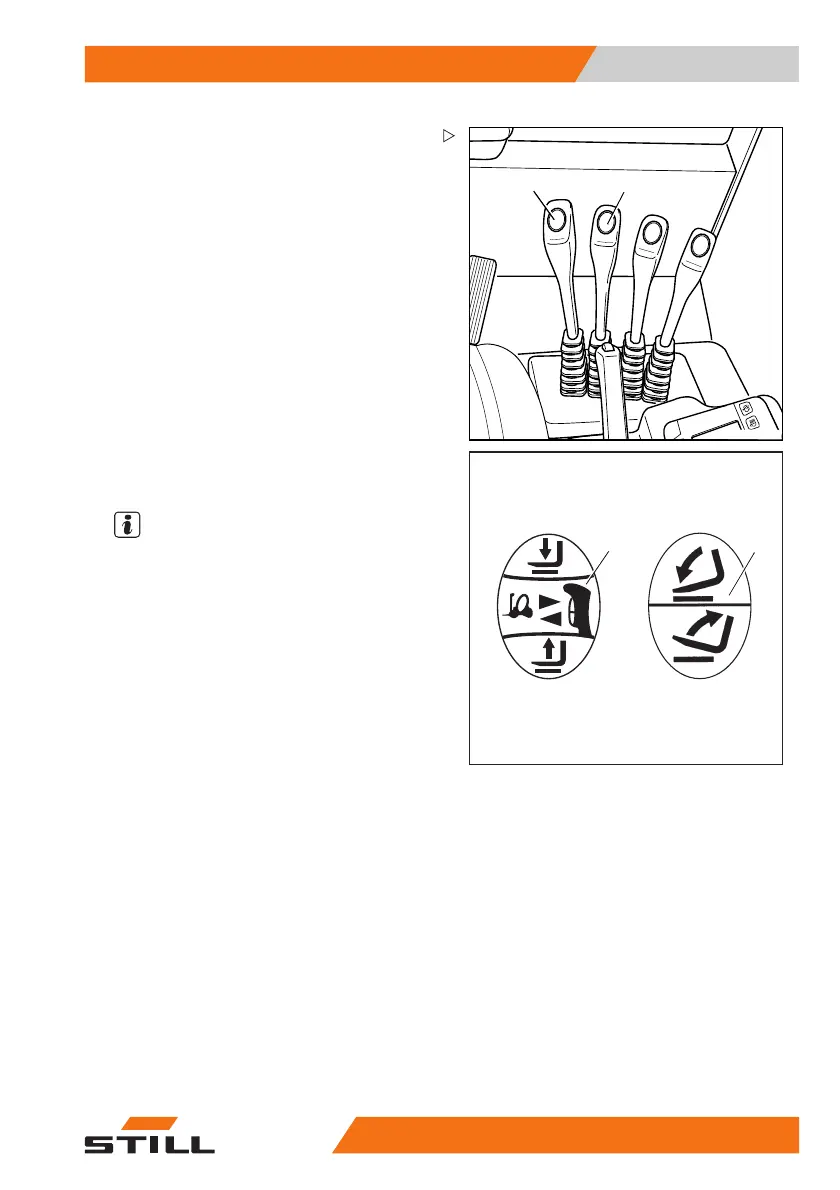

Lifting system, multi-lever operation
Tilt mast
To tilt mast forward:
– Push "Tilt"(2) operating lever forward.
To tilt mast backwards:
– Pull back "Tilt" operating lever (2).
Lift, lower fork carriage
To raise fork carriage:
– Pull back the "Lift-Lower" operating lever
(1).
To lower the fork carriage:
– Push forward the "Lift-Lower" operating
lever(1).
NOTE
The symbols on the levers show the move-
ment direction of the mast when the lever is
pulled or pushed.
