5 Operation
Working with attachments
7081_003-017
1
1
2
7071_003-105
Operating attachments using multi-
lever controls and the 5th function
NOTE
The designation "5th function" refers to the
four functions that can be controlled using
the four operating levers and that the func-
tion which can be controlled using the func-
tion change-over switch then constitutes the
"5th function".
The attachments (special equipment) are
controlled in this version using the operating
levers (1).

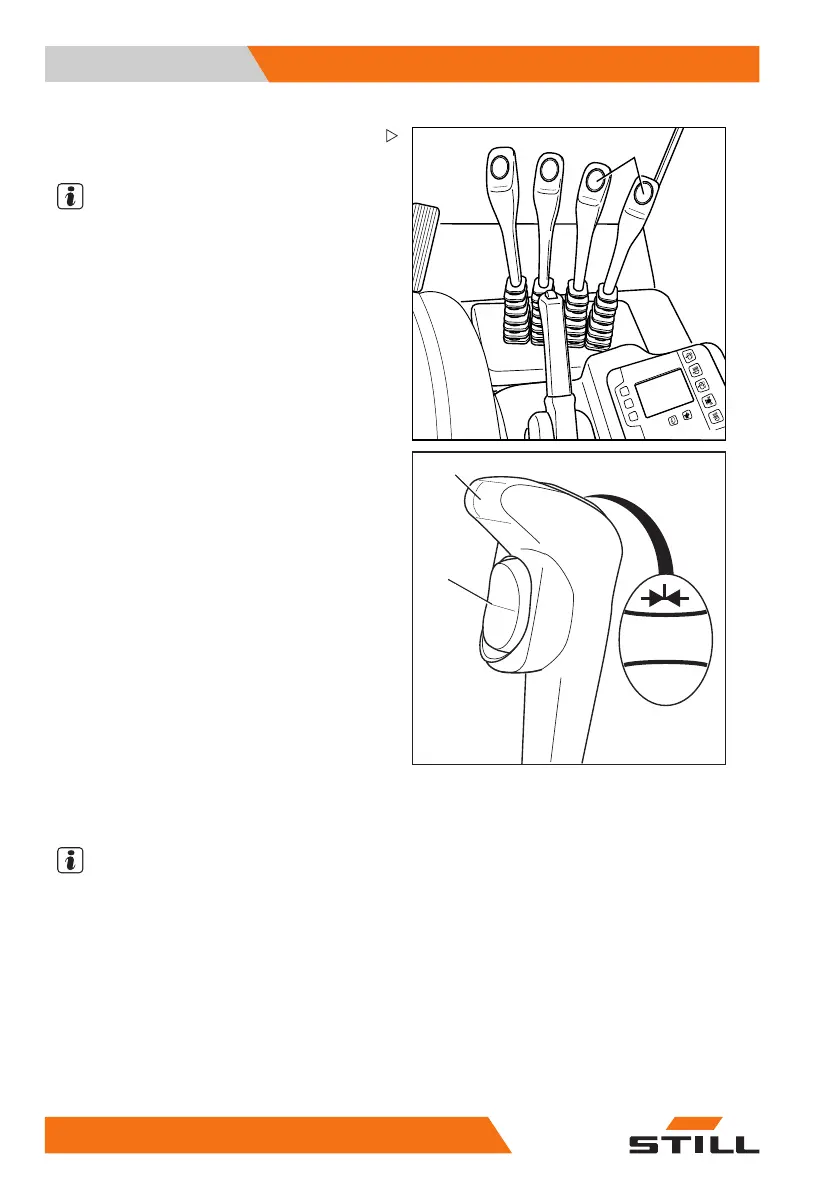

On the operating lever (1) you can, with the aid
of switch (2), initiate a function change-over
so that this operating lever then controls the
"5th function".
The pictograms in the centre and lower parts
of the operating levers always show the func-
tion controlled by that lever. The pictogram in
the upper part shows that the attachment has
the "5th function".
The meanings are as follows:
• Move the operating lever forward: the at-
tachment moves in the direction shown in
the centre of the pictogram.
• Move the operating lever backward: the
attachment moves in the direction shown in
the lower part of the pictogram.
• Actuate the switch: the additional function
of the attachment is activated and can be
controlled as the "5th function" with the op-
erating lever.
NOTE
Please see the operating instructions for the
attachment that is fitted for the movements/ac-
tions resulting from use of this" 5th function".
120 171673 [EN]
