Using Objet Studio
5–12 DOC-34014 Rev. C
OpeningobjdfFiles
Beforeplacingobjdffilesonthebuildtray,ObjetStudiomustextractthe
componentstlfilestogetherwithinformationabouttheirrelativeposition
andmodelmaterials.Todothis,ObjetStudiocreatesafolderwiththesame
nameastheobjdffile,inthesamelocation.

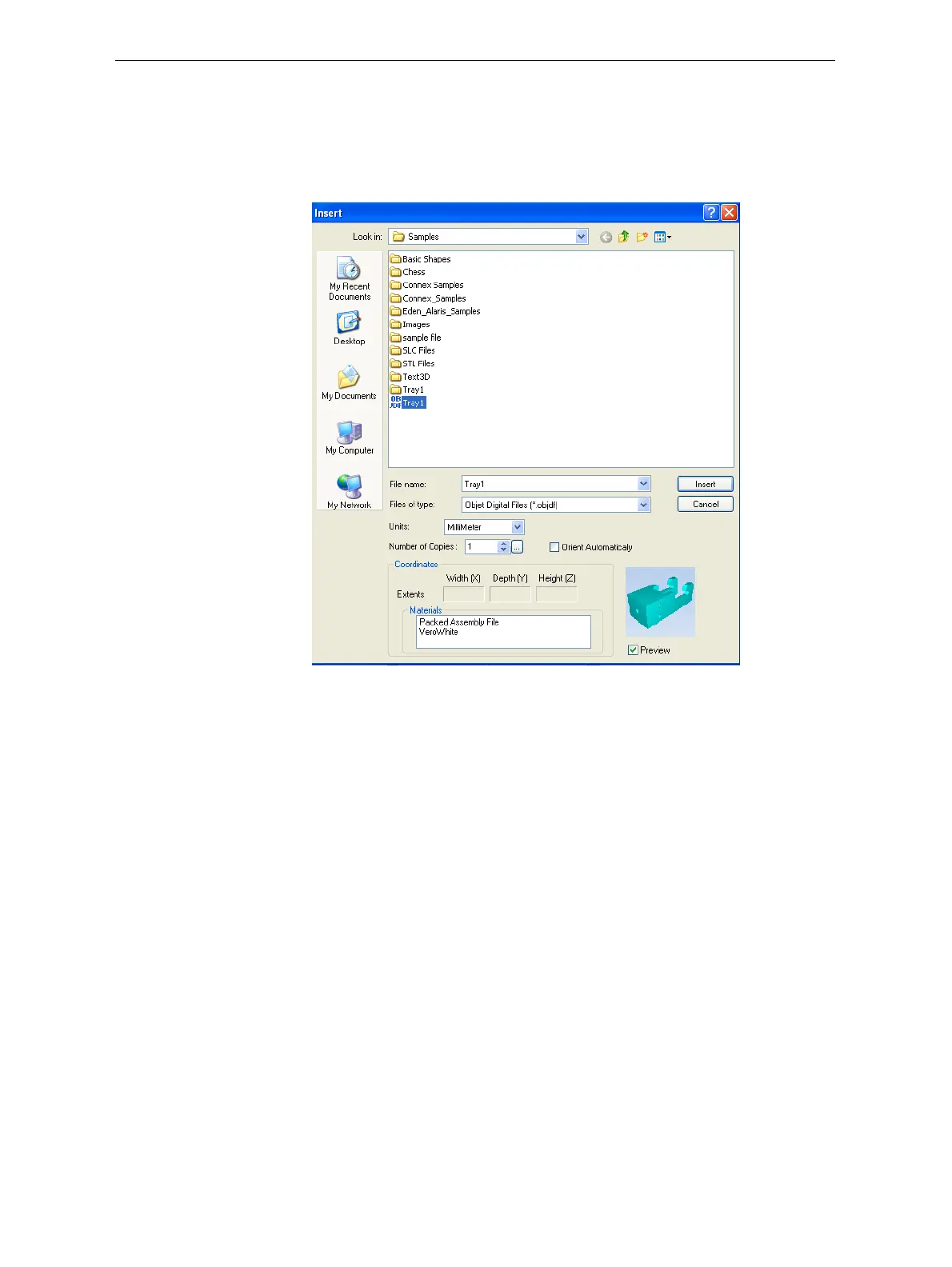

Figure 5-12: Insert dialog box (objdf file)
