Using Objet Studio
5–8 DOC-34014 Rev. C
Objet Studio
Commands
Menu
Clickingtheiconintheupper‐leftcorneropenstheObjetStudio
Commandsmenu.Thismenudisplaysbasicapplicationcommandsand
options.

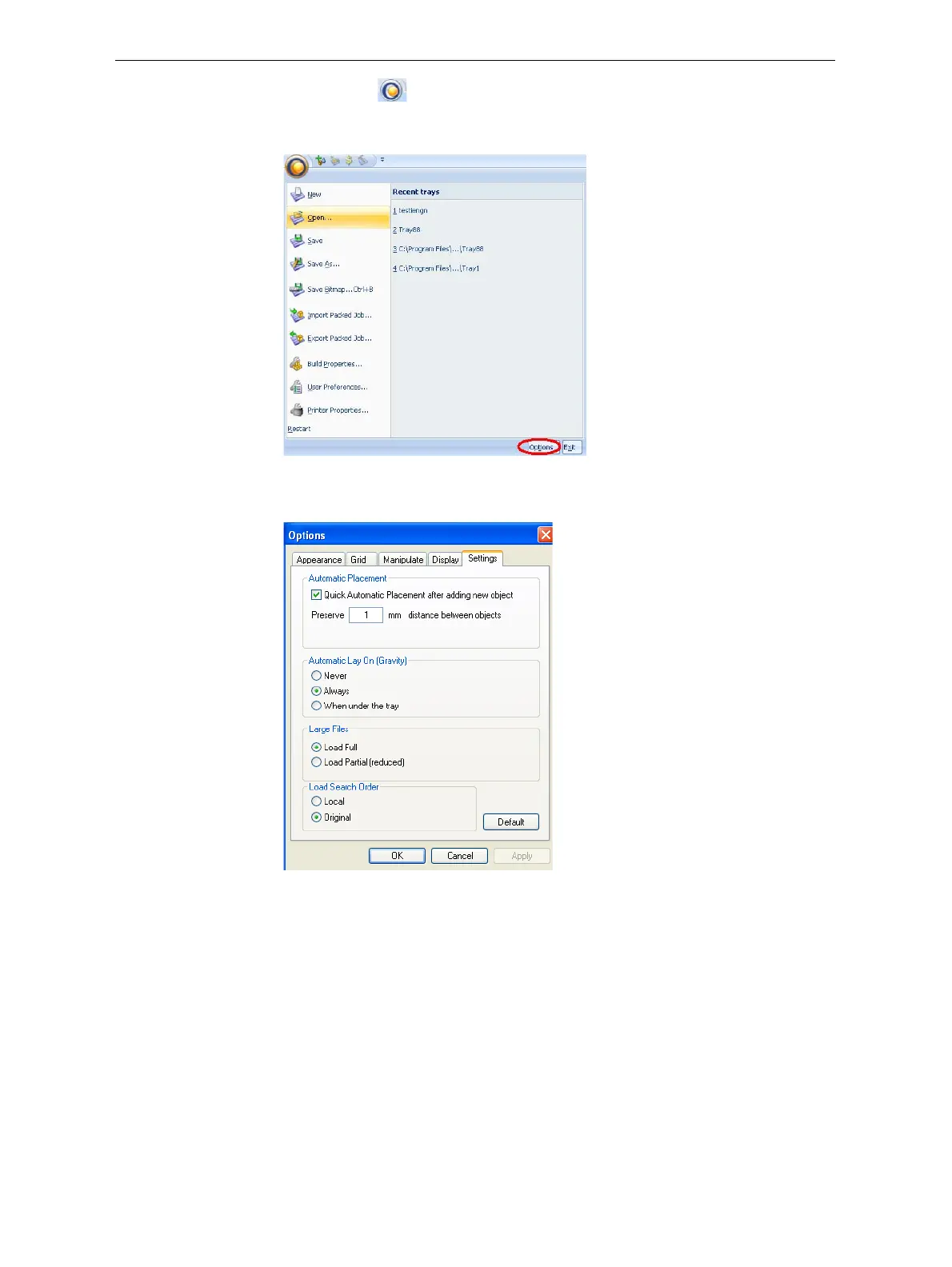

Figure 5-7: Objet Studio Commands menu
TheOptions buttonopensadialogboxforcustomizingObjetStudio.
Figure 5-8: Options dialog box
Model Tree
Pane
TheModelTreepaneliststheobjectsplacedonthebuildtray.Bydefault,the
pane“floats”—thatis,youcanmoveittoanotherpositiononthescreen
andresizeit.Alternatively,youcanfixitspositionattheleftofthe
applicationwindow,andevenhideit.
