Tray
Perspective
Thedefaultperspectiveofthebuildtrayis“isometric.”Youcanchangethe
perspectiveoftheactivewindowwithoneoftenoptions.
To change the perspective of the build tray in the active window:
1. OntheTraySettingsribbon,openthePerspectiveflyouttoolbar.

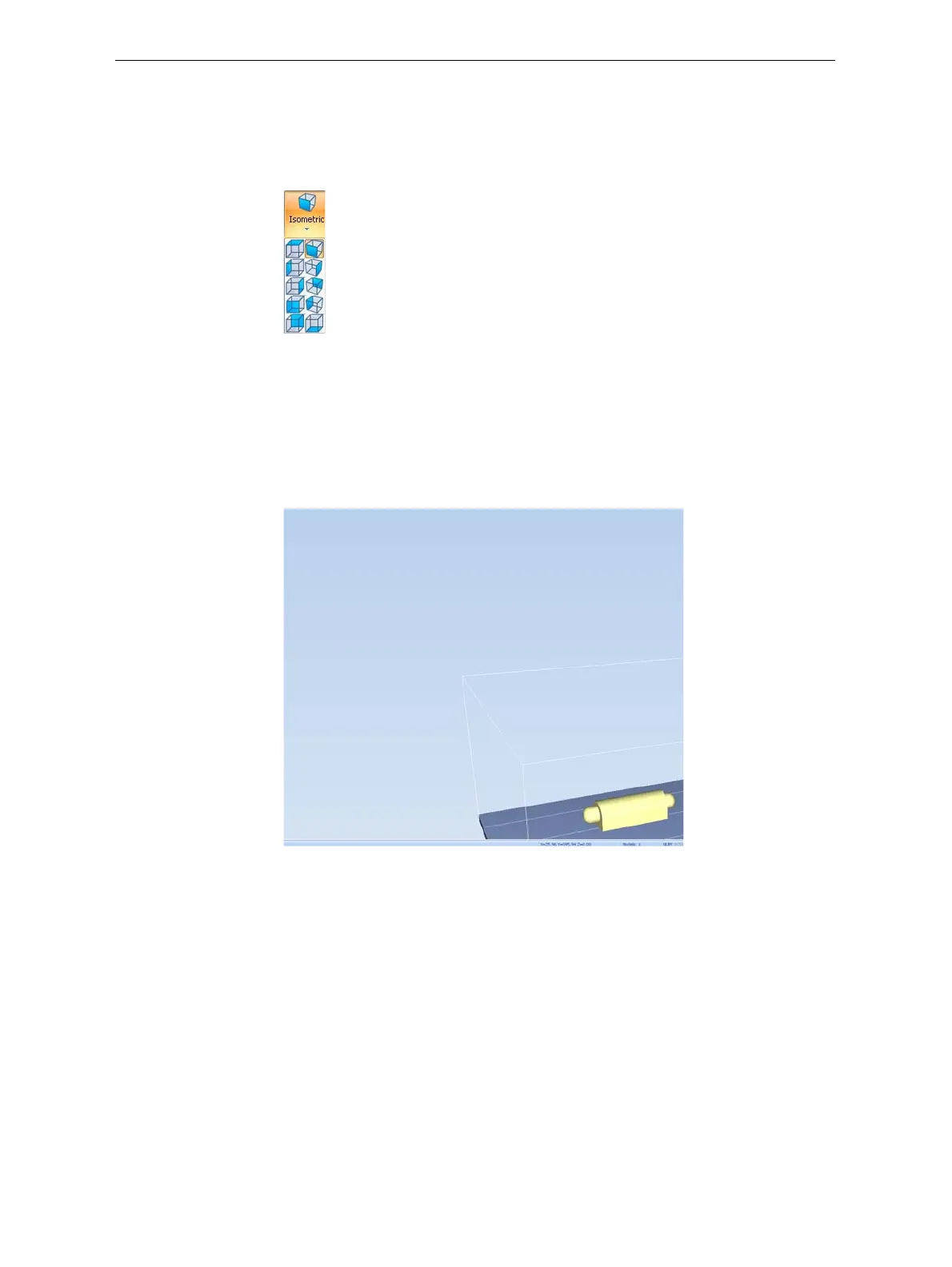

Figure 5-41: Perspective flyout toolbar
2. Clicktheiconthatrepresentsthedesiredperspective.
Tray Positioning Toviewthetrayandmodelsfromdifferentdirections,youcanmovethe
trayaroundthescreenandchangeitsdisplayangle.
To move the tray in the Objet Studio screen:
¾
Pressthemousewheelwhilemovingthemouse.
Figure 5-42: Tray after moving it in the Objet Studio display
