Stratasys Objet24 - Setting Model Dimensions; Repositioning Objects

DOC-34014 Rev. C 5–25
Objet24 User Guide
Setting Model
Dimensions
Youcanchangeanobject’sdimensionsbychangingitssizeontheX‐,Y‐,
andZ‐axes,fromtheDimensionsgroupontheModelSettingsribbon.

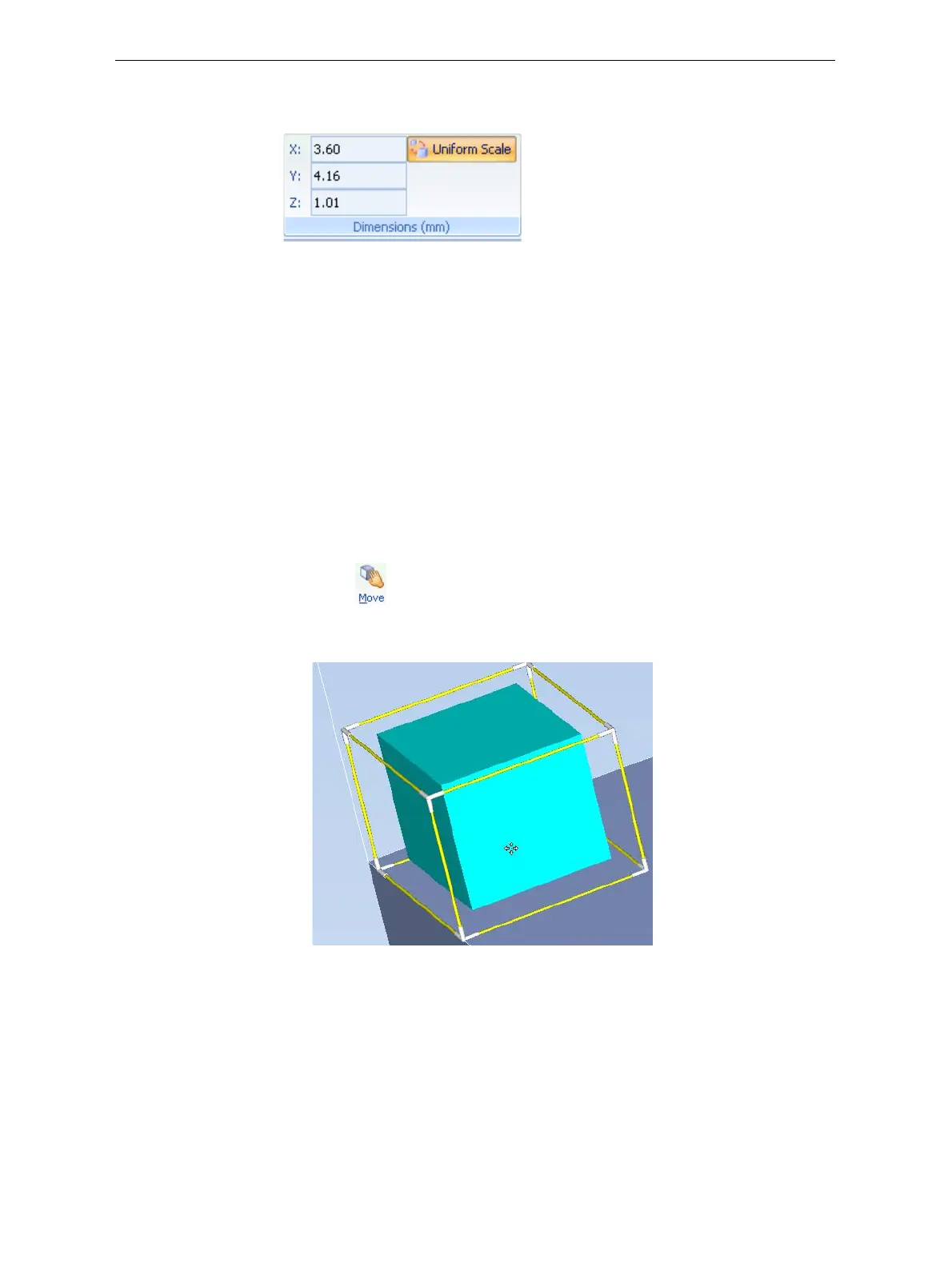

Figure 5-27: Dimensions on the Model Settings ribbon
• IfUniformScaleisenabled,changingtheobject’sdimensionononeaxis
affectstheotherdimensions,proportionately.
• Afterchangingameasurement,pressEnterorclickinanotherfieldin
theDimensionsgroup.
Note: You can change the height of the objects on the build tray only if this
is allowed by the Objet Studio settings (see “Positioning Objects on
the Z-Axis” on page 21).
Repositioning
Objects
Youcanmanuallymoveandrotateanobjectonthebuildtraywiththe
arrowkeys,orbydraggingitwiththemouse.
To manually manipulate an object:
1. Selectanobjectbyclickingitonthebuildtray,orinthemodeltree
pane.
2. ClickontheModelToolbar,orontheModelSettingsribbon.
Aframeappearsaroundtheobject,andthecursorchangestoindicate
thattheobjectcanbemoved.
Figure 5-28: Manually moving an object
