Stratasys Objet24 - Valid Object Placement

Using Objet Studio
5–22 DOC-34014 Rev. C
Valid Object
Placement
Youcanensurethatmodelsdonotoverlapwhenyoupositionthemonthe
buildtray,andthattheydonotextendbeyondthetray.
To ensure valid object placement:
1. FromtheToolsmenu,selectConstraints Settings.

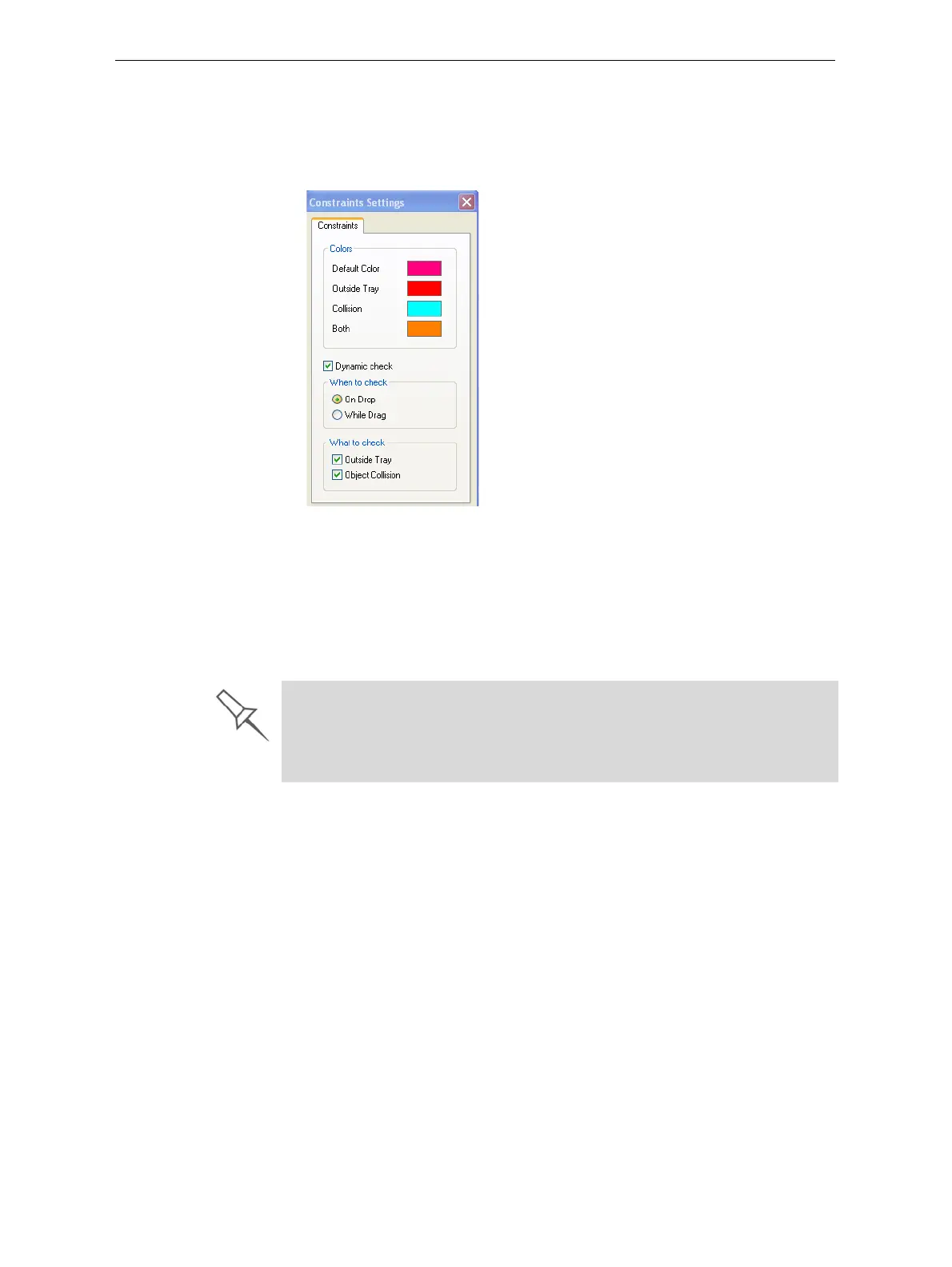

Figure 5-22: Constraints Settings dialog box
2. SelectDynamic checktoidentify—
• invalidobjectplacementwhileplacing objects—OnDropselected.
• invalidobjectplacementaftermovingobjects—WhileDragselected.
• objectsplacedbeyondthetray’sboundaries—OutsideTrayselected.
• objectsthatoverlap—ObjectCollisionselected.
Note: Remember that Objet Studio calculates the space occupied by an
object including the “bounding box” surrounding it (see figure 5-21
on page 33).
Even if you do not use Dynamic Check when placing objects on the build
tray, Objet Studio automatically checks if there is a problem with the
positioning of objects on the tray before sending it to the printer. You can
also manually check for problems after positioning objects (see “Tray
Validation” on page 37).
