Stratasys Objet24 - Page 66

Using Objet Studio
5–30 DOC-34014 Rev. C
To display objects as boxes, showing their maximum dimensions
instead of their shape:
¾
FromtheViewmenu,select Display Bounding Box.

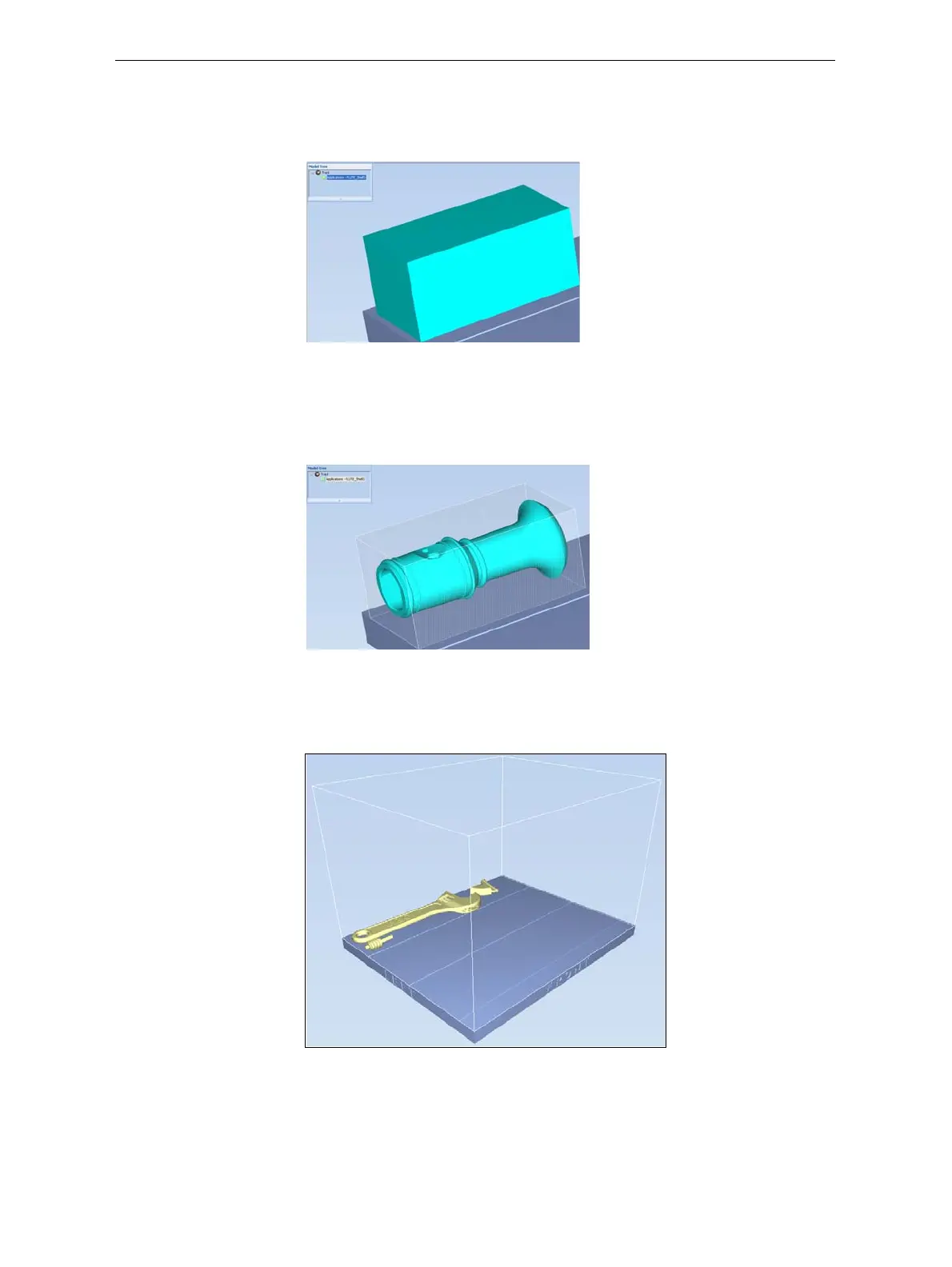

Figure 5-35: Model displayed with bounding box
To display the area around objects needed for support material (to
produce a matte finish):
¾
FromtheViewmenu,select Display Thickening Box.
Figure 5-36: Model displayed with thickening box
To display the maximum build height:
¾
FromtheViewmenu,selectDisplay Tray 3D Box.

Figure 5-37: Tray 3D Box
To display objects without the build tray:
¾
FromtheViewmenu,clear(de‐select)theDisplayTrayoption.
