S CLASS™ cutter User’s Manual
Maintenance 5-2

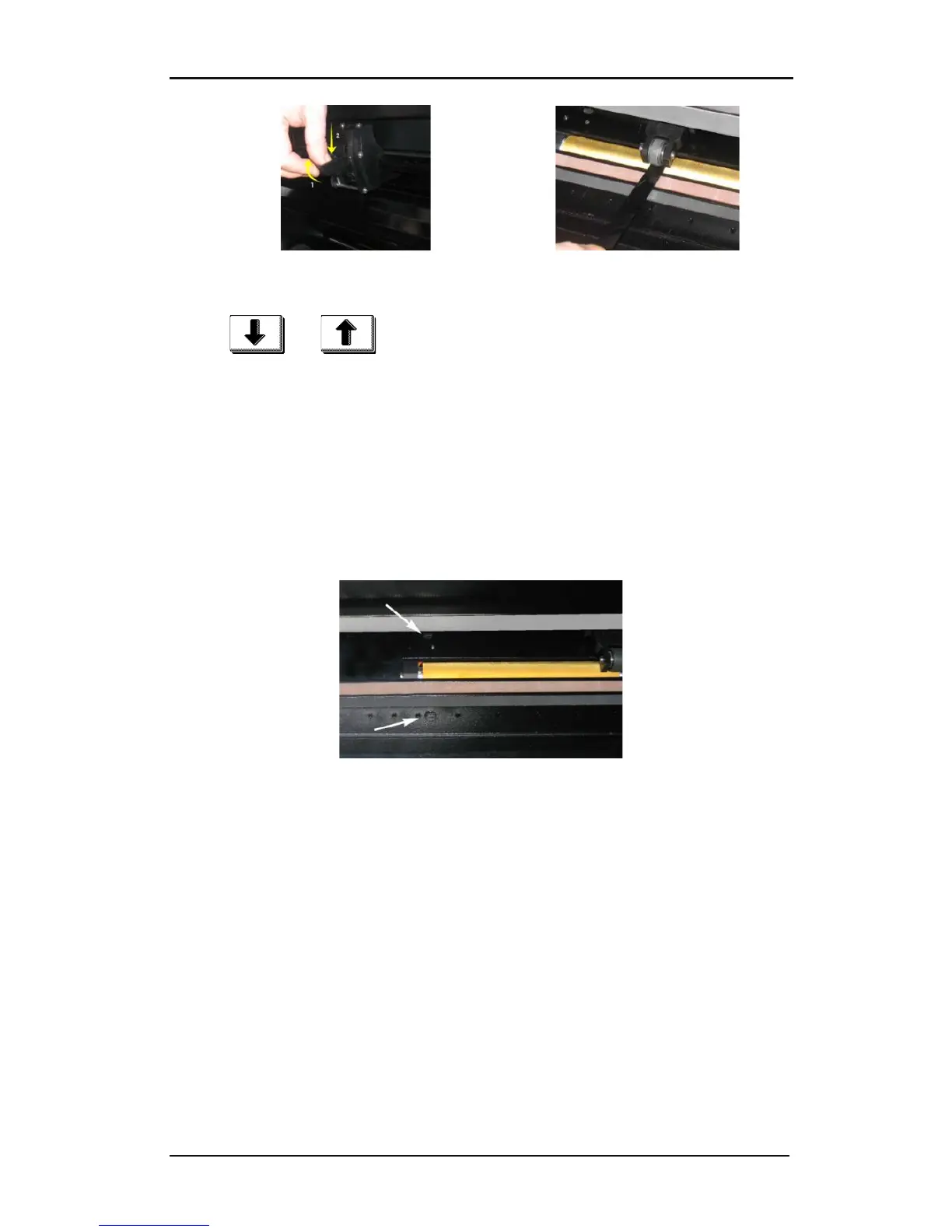

FIG 5-1
5-1 LIFTING THE PINCH ROLLER
FIG 5-2
5-2 PLACEMENT OF VINYL STRIP
8. Use and to move the piece of vinyl back and forth several times until
all residue is removed from the drive sleeves.
9. Repeat for the other drive sleeves.
5.1.2 Cleaning the media sensors
Over time, the media sensors may become dirty with accumulated residue from the media.
This may cause the cutter to malfunction.
Clean the media sensors by wiping them out with cotton swabs.
FIG 5-3
5-3 MEDIA SENSORS S CLASS™ CUTTERS
