S CLASS™ cutter User’s Manual
Setup 1-42

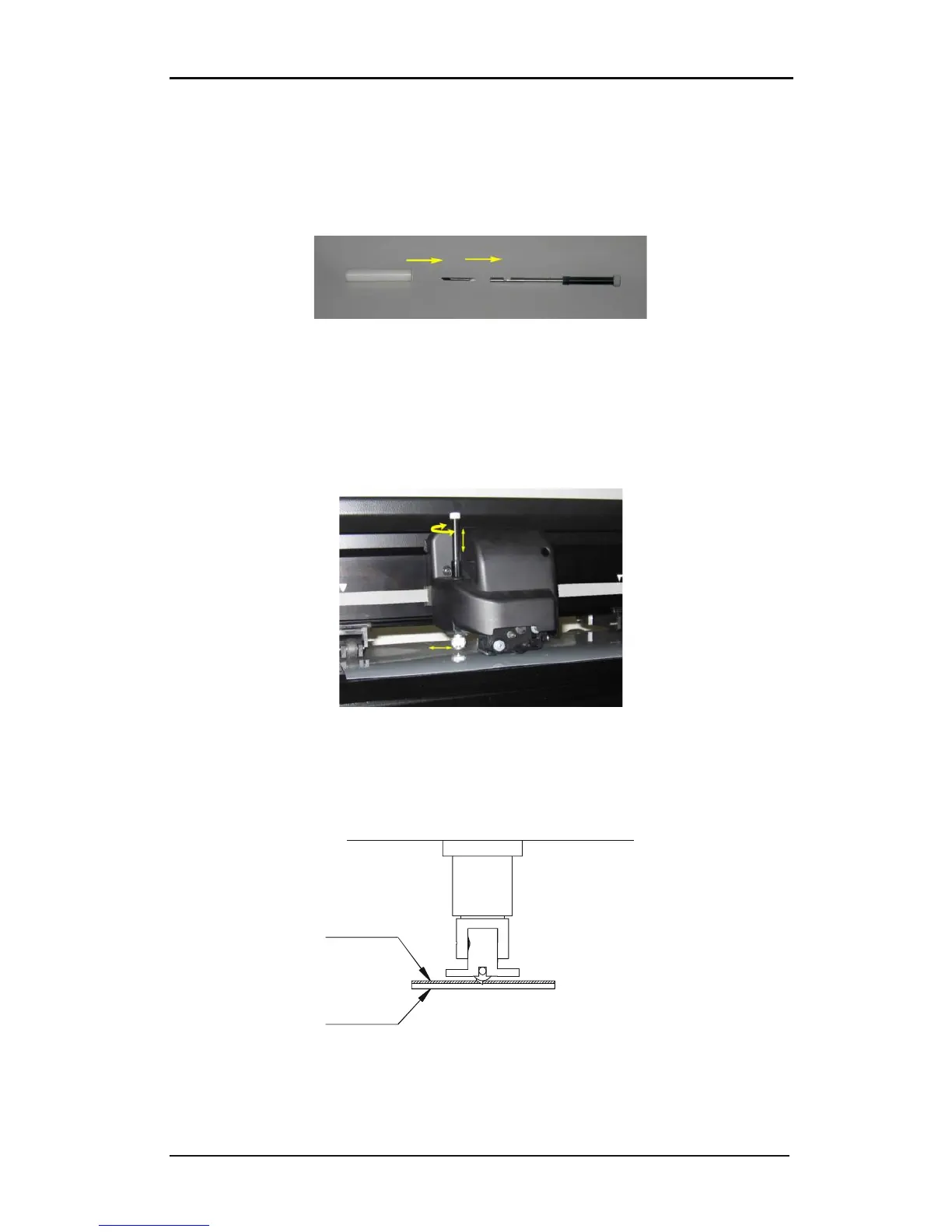

 Installing the tangential knife and setting knife depth
1. Insert the standard knife blade into the knife holder. Make sure the knife blade is firmly
fixed in the holder. The knife is inserted correctly if it cannot be removed manually from
the knife holder. The installation tool can be used to apply enough pressure on the knife
to secure it.
FIG 1-33
1-33 BLADE ASSEMBLY
2. Insert the nosepiece from the side until it snaps into place. Gently insert the knife into
the tool shaft. Hold the nosepiece in place with one hand and, with the other hand, turn
the knife holder counterclockwise until the alignment pin fits into the small notch of the
tool shaft. Now turn the knife holder clockwise until its thread takes hold inside the tool
shaft.
FIG 1-34
1-34 INSERTING THE TANGENTIAL KNIFE HOLDER
3. Holding the nosepiece in place with one hand, adjust the knife depth with the other
hand by turning the knife holder clockwise until the knife tip is just visible from under
the nosepiece.
Film
Backing
FIG 1-35
1-35 KNIFE DEPTH ADJUSTMENT
