S CLASS™ cutter User’s Manual
Basic Operation 2-2

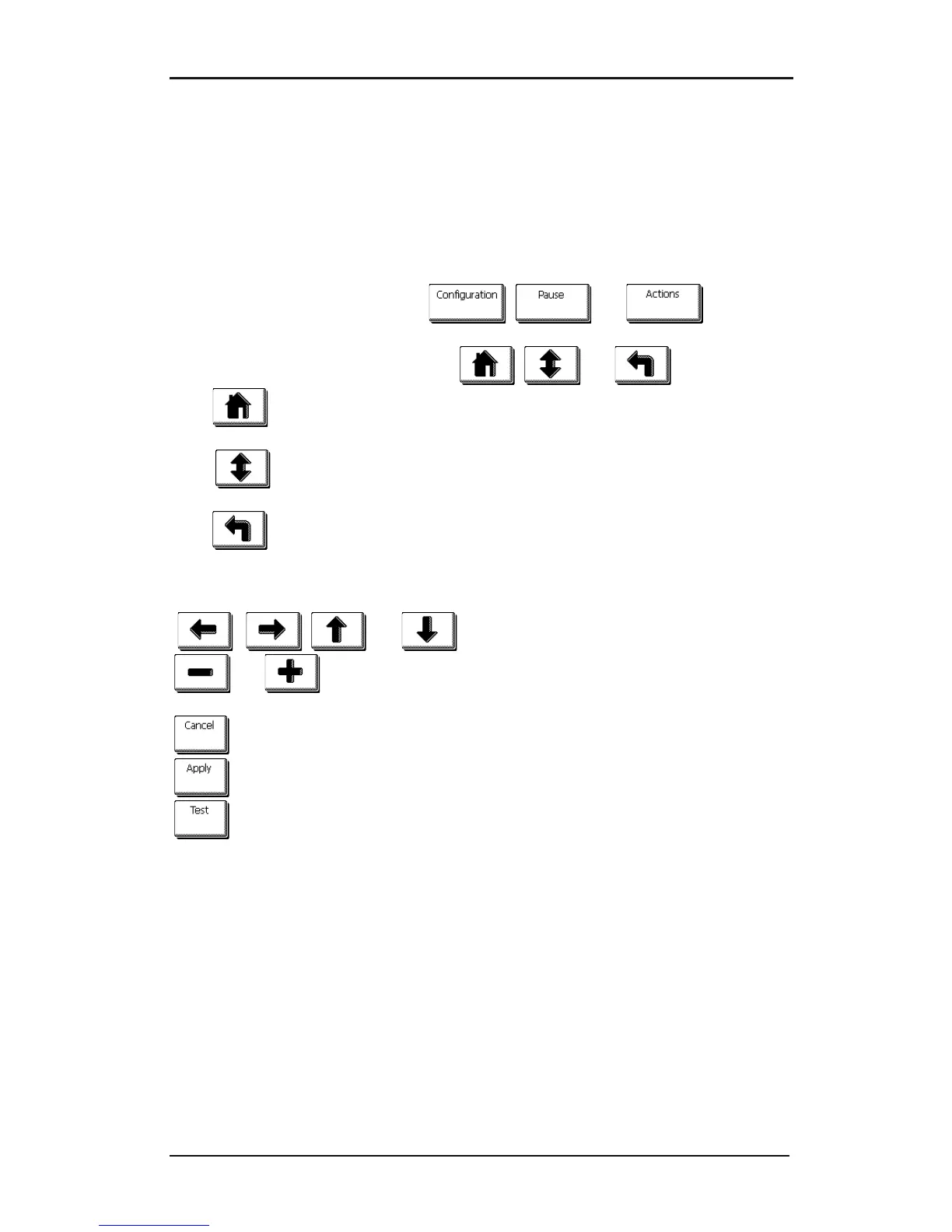

2.1.1 Touch screen
The touch screen provides information and lets the user change the cutter’s parameters.
Most common buttons on touch screen:
Normally, the status or current value is visible on the left side of the screen, while the
control buttons appear on the right side.
There are three main control buttons: ,
and .
If a menu is entered, 3 navigation buttons: , and may appear.
Press to return to the status screen. If media is loaded in the cutter, then the cutter
will come online and be ready to cut a job sent from the computer.
Press for more menu options. If there are more than 6 options for the chosen
menu, then pressing this button will reveal the rest of the options onscreen.
Press to return one step in the menu structure.
Other buttons that will appear on the screen are:
, , and arrow buttons to move tool carriage or media or
and to change the values of parameters.
to cancel an instruction or change in parameter.
to apply a change in parameter.
to initiate an internal test.
Bottom line:
The bottom line gives extra information on the way the cutter can be conected to the
computer.
If a wireless board is installed, then information about the setting is shown (IP address,
signal strength, signal quality and if connected or not).
In other cases, the current USB class is shown.
