S CLASS™ cutter User’s Manual
Contour Cutting 3-16
3.4.3 OPOS Barcode
The S class cutters can also read a barcode. Certain RIP’s have the ability to print a barcode
together with the OPOS markers. This barcode can then be used to identify the job and
retrieve the needed cut data automatically from the computer.
The complete procedure is normally started from the computer. The cutting software will
usually have a button or a command called ‘scan a bar code’. First make sure that the media
is loaded.

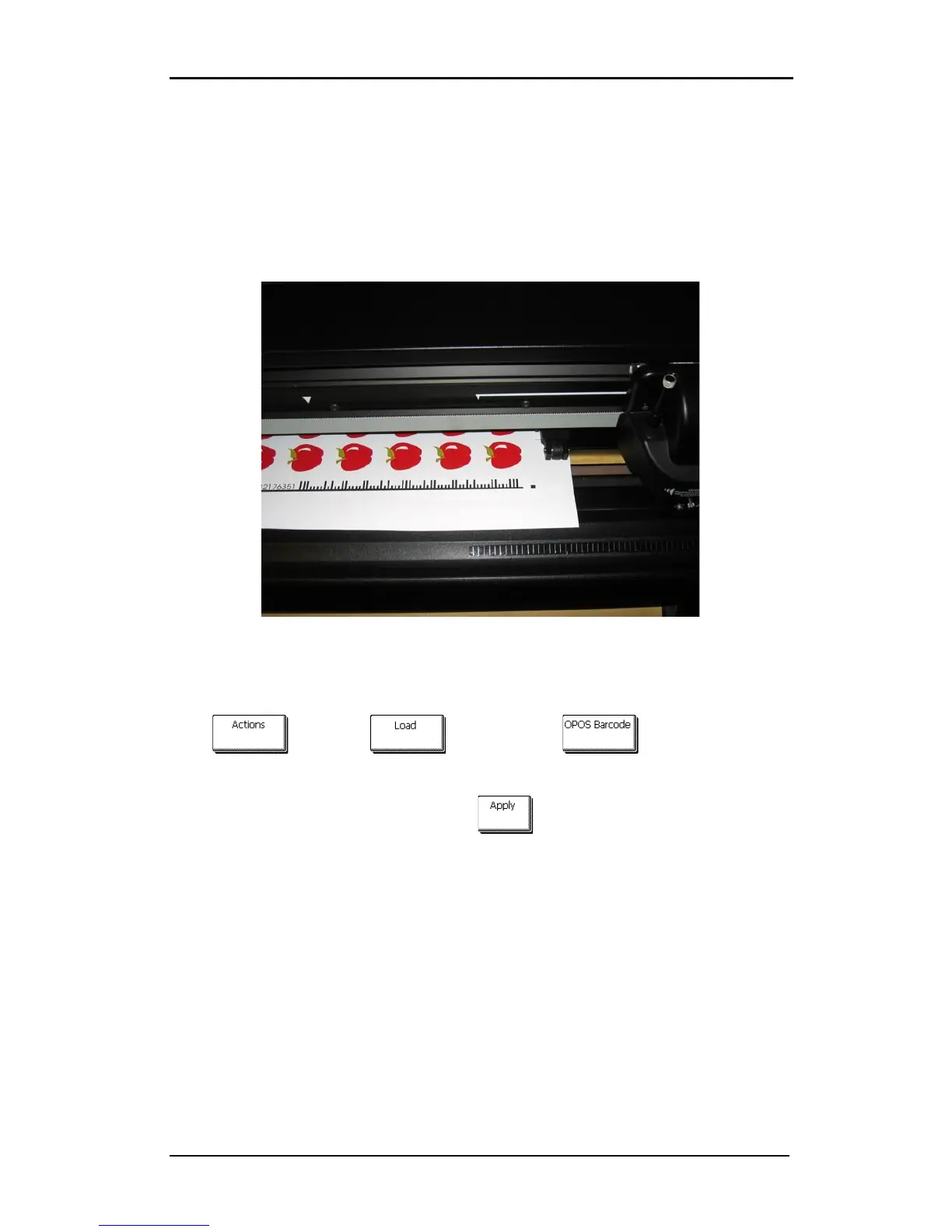

FIG 3-2
3-2 OPOS BARCODE JOB LOADED
Start the procedure from the computer or start from the touch screen.
To start from touch screen:
Press , then press and finally press .
The cutter will prompt the user to put the knife under the barcode.
Do so by using the arrow keys. Then press on .
The cutter will read the barcode and send this data to the computer.
The cutting software will then automatically send the correct cutting data to the cutter.
The cutter will start sensing the OPOS markers and cut out the job.
After that the OPOS sensor will search if there is a job printed after the one that is just
finished and continue to contour-cut..
This will repeated until the all contour-cut jobs on the loaded roll are cut out.
