S CLASS™ cutter User’s Manual
Setup 1-2
1.1.2 Setting up the stand
1. Verify that the stand is complete. The box containing the stand should contain
following:
a. 2 legs, left and right
b. 2 feet, left and right
c. Horizontal panel
d. Media flanges
e. Total of 7 tubes for [media] basket
f. Linen media basket
g. Bag of 4 casters, screws and other accessories to mount the stand

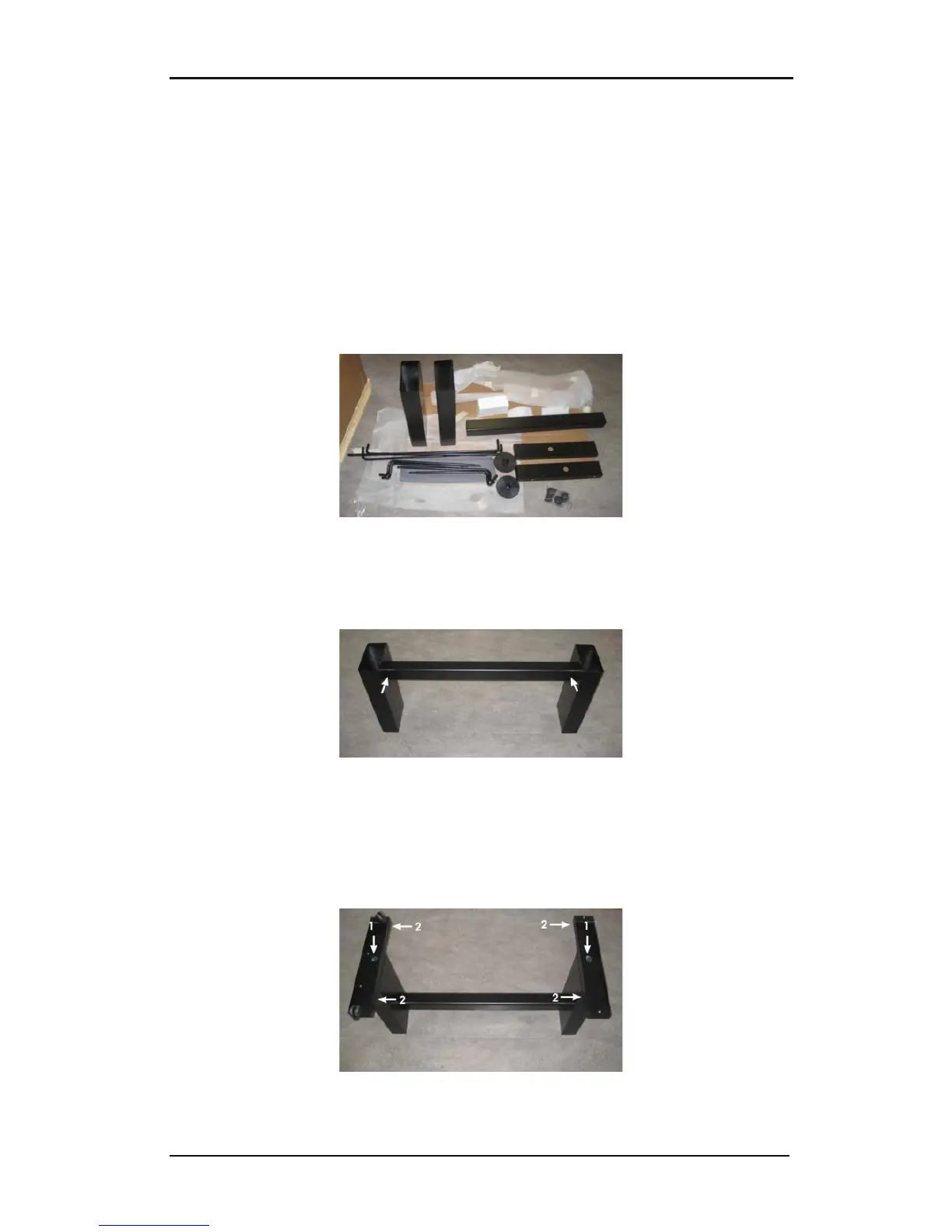

FIG 1-2
1-2 CONTENTS OF BOX STAND
2. Mount the horizontal panel between the two legs of the stand with 4 screws at each
side.
FIG 1-3
1-3 MOUNTING HORIZONTAL PANEL
3. Turn the stand upside down and mount the 2 feet at each side with 4 screws. Take care
to position the feet so that all the holes in the feet corresponds to the holes in the legs
(left and right) as in the picture (1), and the 4 holes in the feet all point towards the
middle (2). Screw in the 4 casters.
FIG 1-4
1-4 MOUNTING FEET AND CASTERS
