S CLASS™ cutter User’s Manual
Basic Operation 2-6

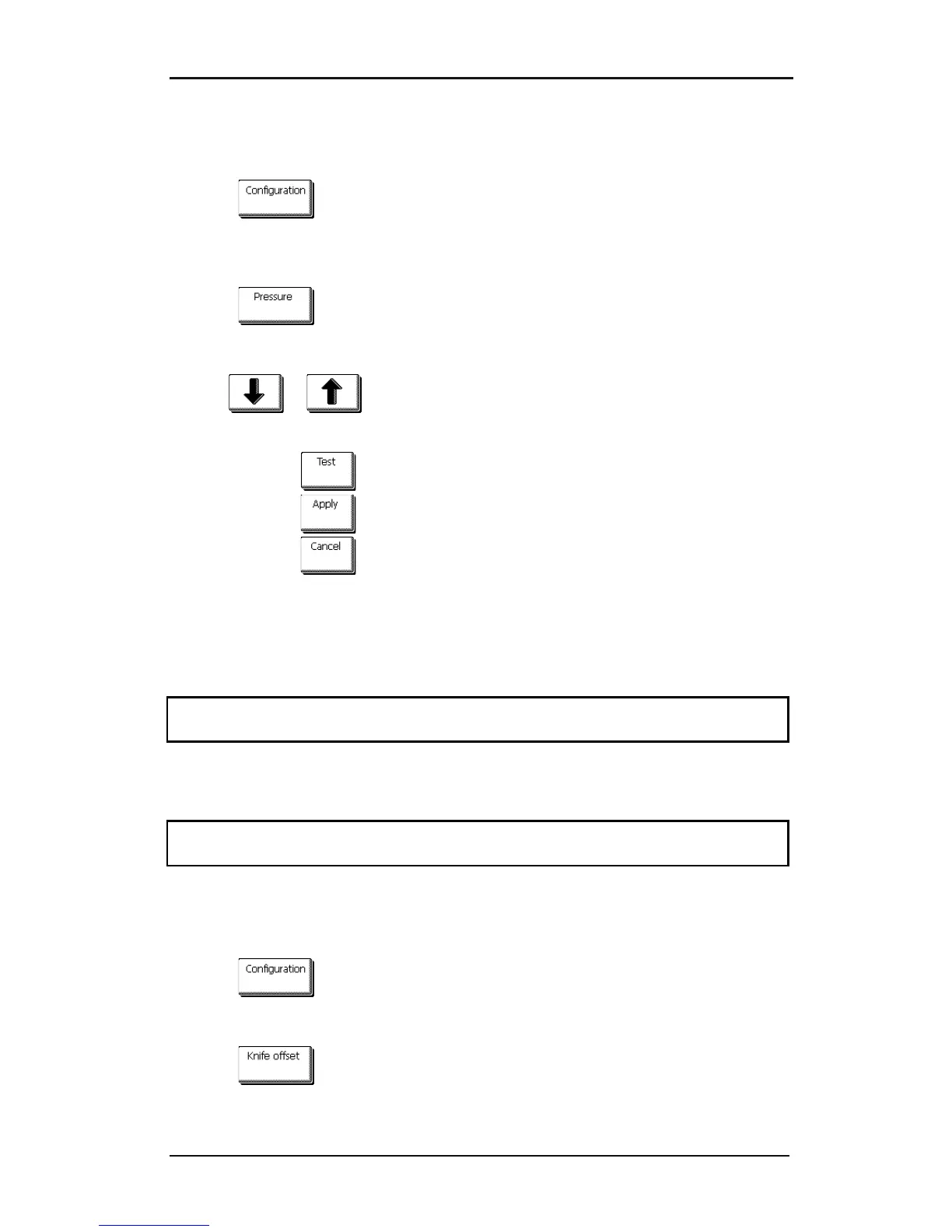

2.2.2 Changing tool pressure
1. Power on the cutter, load media, and mount tool (see section 1).
2. Press .
The main menu will appear on the screen. Buttons may vary according to the chosen tool
type. However, there will always be a button labeled with the word ‘pressure.’
3. Press button.
The current tool pressure will appear on screen.
4. Use or to change the pressure.
The new value (in bold) will change.
1. Press to perform the internal tool pressure test (see 1.6.1.1).
2. Press to confirm and exit the tool pressure menu.
3. Press to leave the pressure unchanged.
2.2.3 Changing drag knife offset
A very important parameter for a drag knife is the offset. The offset is the distance between
the knife center and the knife tip.
NOTE: Knife offset should be set each time the knife is changed and should be checked if
the knife shows signs of wear.
Typical knife offset for Summa knives is between 0.41 and 0.45 for standard knives, and
between 0.9 and 0.97 for sandblast knives.
NOTE: Sandblast knives should be used when the material that needs to be cut is thicker
than 0.25mm.
Changing knife offset:
1. Power on the cutter, load media, and mount drag knife (see section 1).
2. Press .
The main menu will appear on the screen.
3. Press .
The current knife offset will appear on screen.
