Summa S CLASS - Tool Installation; Cutters with Drag Head; Knife Installation; Removing the Drag Knife Holder from the Clamp

S CLASS™ cutter User’s Manual
Setup 1-36
1.6 Tool Installation
SAFETY WARNING: The S CLASS™ cutters use razor-sharp knives. To avoid serious injury, use
caution when installing, removing or otherwise handling the knife!
1.6.1 Cutters with drag head
1.6.1.1 Knife installation
A knife has been pre-installed in the cutter.
For safety reasons, the knife depth has been set to zero. Simply turn out the knife (see FIG
1-24 yellow arrow clockwise) to start cutting. Below is the complete description of the knife
removal and knife installation.
 Removing the drag knife
1. Loosen the head clamp screw (1), swing the clamp arm back and remove the knife
holder from the clamp (2).

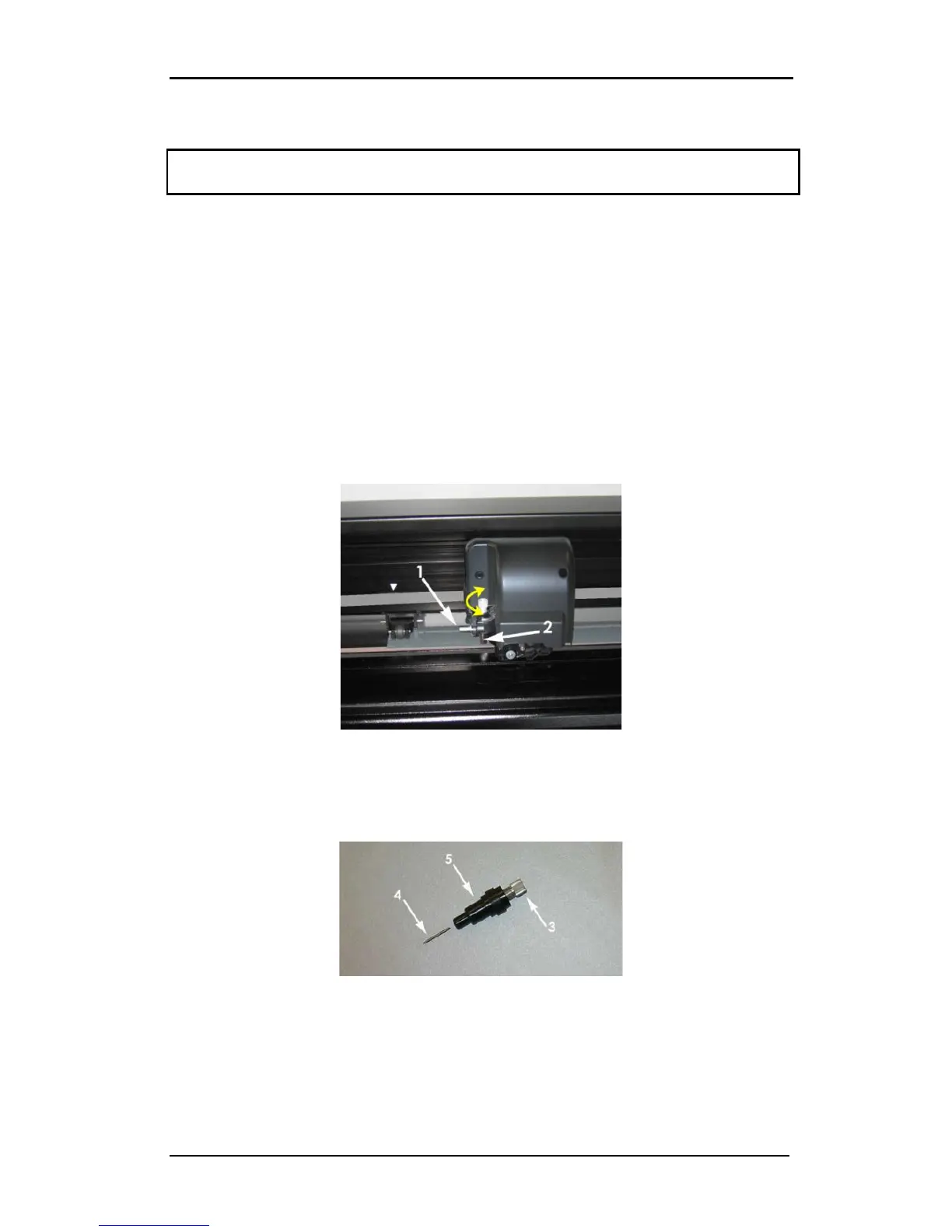

FIG 1-26
1-26 REMOVING THE DRAG KNIFE HOLDER FROM THE CLAMP
2. Turn the knurled adjustment knob (3) clockwise to push the knife (4) out of the holder
(5).
FIG 1-27
1-27 REMOVING THE KNIFE FROM THE STANDARD DRAG KNIFE HOLDER
3. Carefully pull the knife from the holder.
