S CLASS™ cutter User’s Manual
Setup 1-35
Extended load.
The function extended load makes it possible to define the limits of the Y axis so that the
cutter can cut outside the pinch rollers. Media has to loaded before this function can be
used.

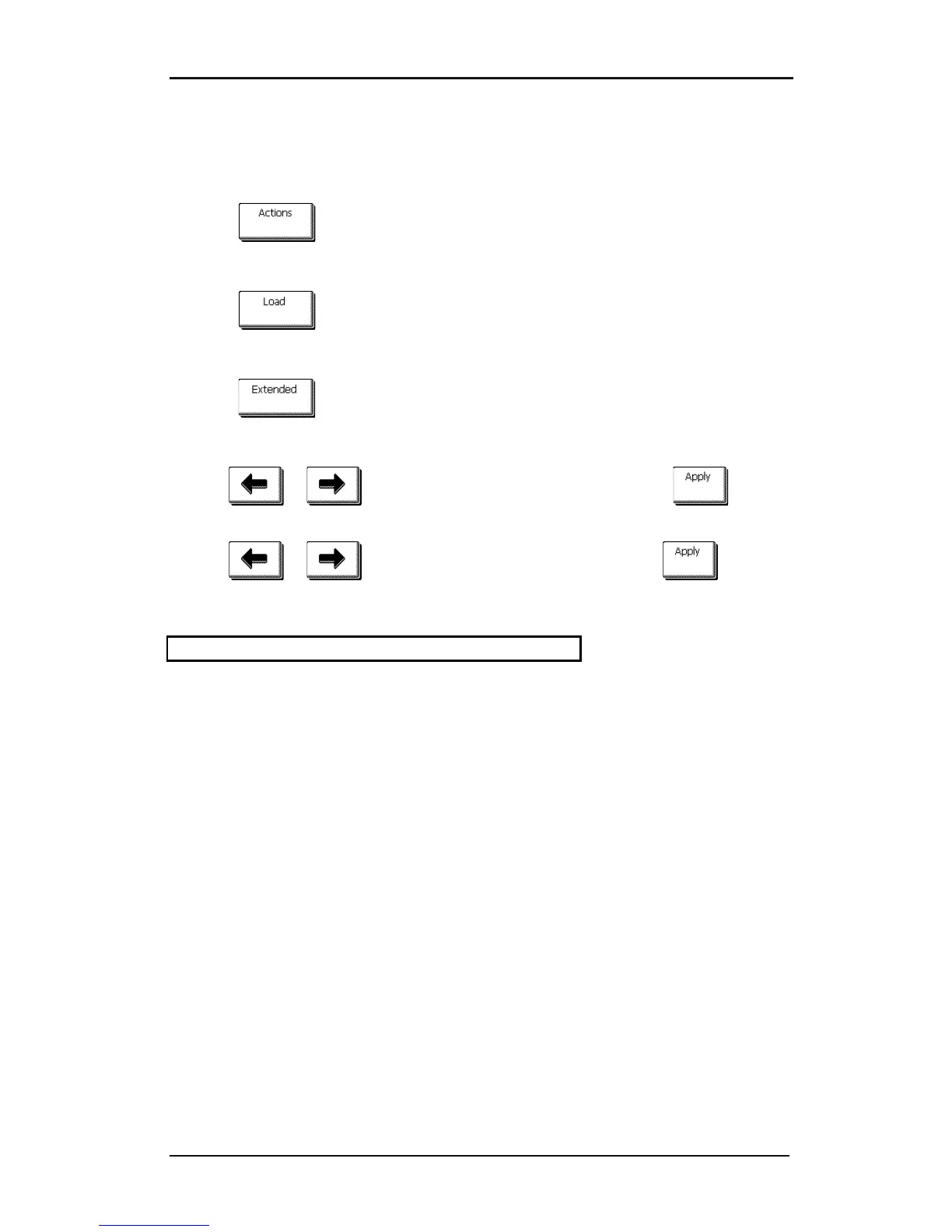

1. Press .
The actions menu will appear on screen.
2. Press .
A message will appear letting the user choose between roll and sheet.
3. Press .
Two arrows will appear, together with an “apply” button.
4. Use or to reposition the right Y-axis limit. Then press .
Two arrows will stay on the screen, the tool carriage will move to the left Y-axis limit.
5. Use or to reposition the left Y-axis limit. Then press .
The cutting area in the Y-axis has now been redefined.
Note: Tracking is not guaranteed when using this mode.
