Appendix B Signal Descriptions B-3

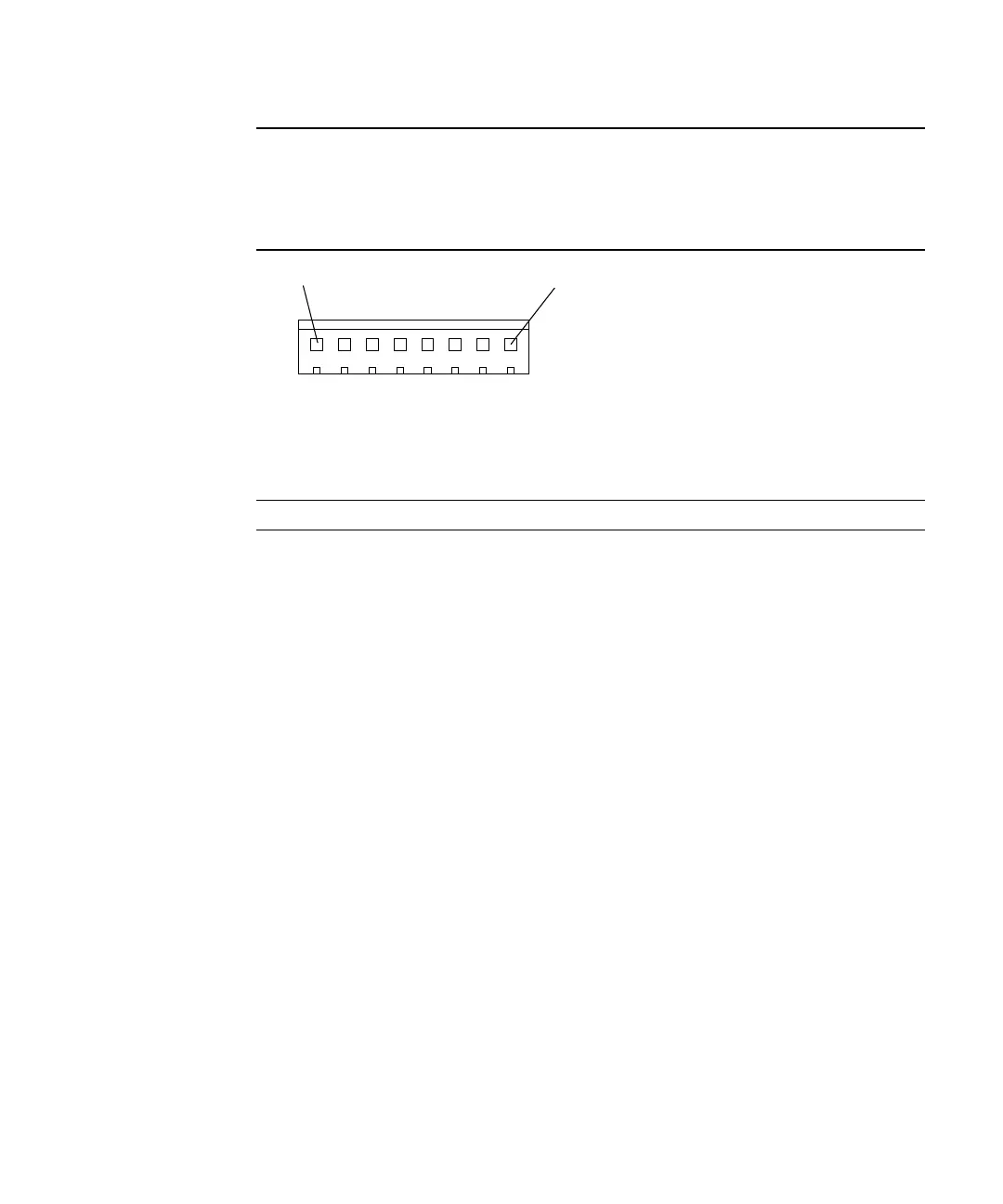

FIGURE B-2 Secondary Power Supply Connector J505 Pin Configuration
18 Open
19 +5V +5 VDC
20 +5V +5 VDC / sense
TABLE B-2 Power Supply Connector J505 Pin Assignments
Pin Signal Description
1 +3.3V +3.3 VDC
2 +3.3V +3.3 VDC
3 +3.3V +3.3 VDC
4 +3.3V +3.3 VDC
5 Gnd Chassis ground
6 Gnd Chassis ground
7 Gnd Chassis ground
8 +12V +12 VDC
TABLE B-1 Power Supply Connector J501 Pin Assignments (Continued)
Pin Signal Description
Pin 1
Pin 8
