Appendix B Signal Descriptions B-15
B.8 Video Connector
The video connector is a 15-pin mini D-sub connector located on the back panel.

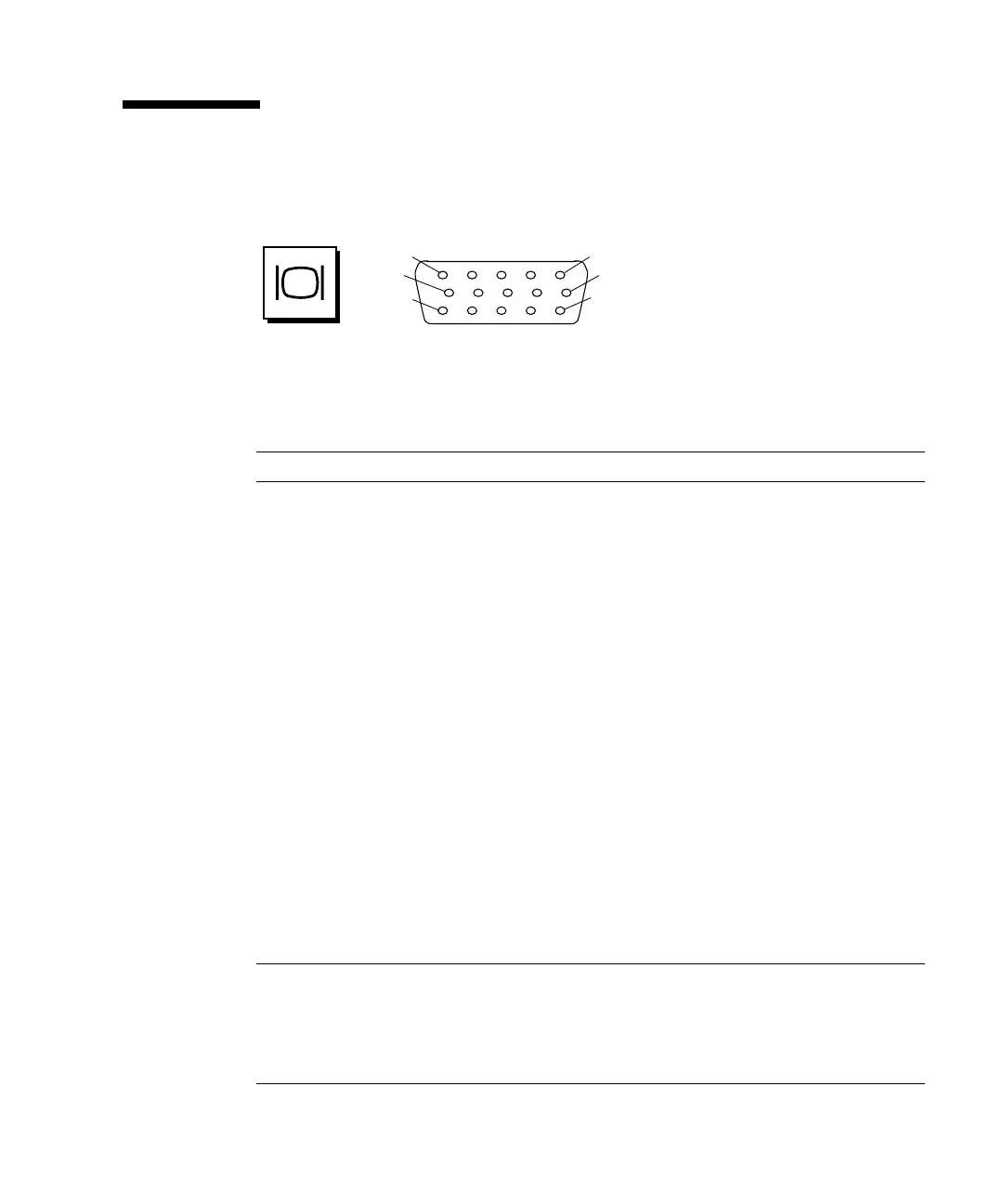

FIGURE B-12 Video Connector J37 Pin Configuration
TABLE B-11 Video Connector J37 Pin Assignments
Pin Signal Description
1 Red Red video signal
2 Green Green video signal
3 Blue Blue video signal
4 Gnd Ground
5 NC Not connected
6 Gnd Ground for red video signal
7 Gnd Ground for green video signal
8 Gnd Ground for green video signal
9 NC Not connected
10 Gnd Ground
11 Gnd Ground
12 SDA Bidirectional data
13 Horizontal sync Horizontal synchronizing signal
14 Vertical sync Vertical sync clock
15 SCL Data clock
1
5
6
11
15
10
