A-4 Sun Blade 150 Service Manual • June 2002

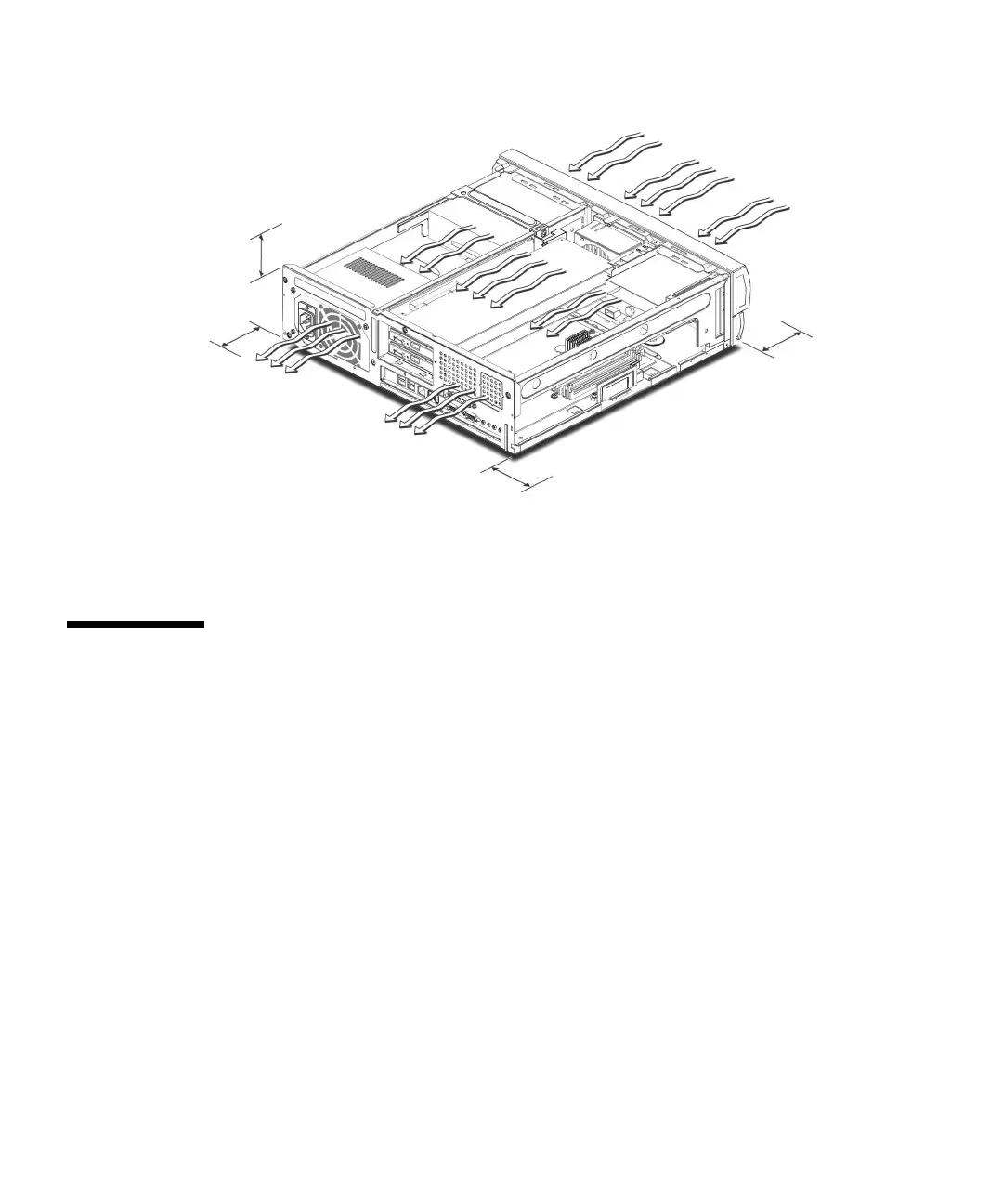

FIGURE A-1 Minimum Clearance for System Cooling
A.5 Reference Information
This section contains the following reference information:
■ Section A.5.1, “IDE Cabling Configuration” on page A-4
■ Section A.5.2, “CD-ROM and DVD-ROM Jumper Settings” on page A-5
■ Section A.5.3, “CD Handling and Use” on page A-5
A.5.1 IDE Cabling Configuration
FIGURE A-2 shows the IDE cabling. The Sun Blade 150 system can support an
optional secondary hard drive. An optional cable with two connectors is shipped
with the secondary drive and is connected as shown in
FIGURE A-2.
4.0 in.
0.0 in.
0.0 in.
2.5 in.
6.35 cm
10.16 cm
