6-4 Sun Blade 150 Service Manual • June 2002

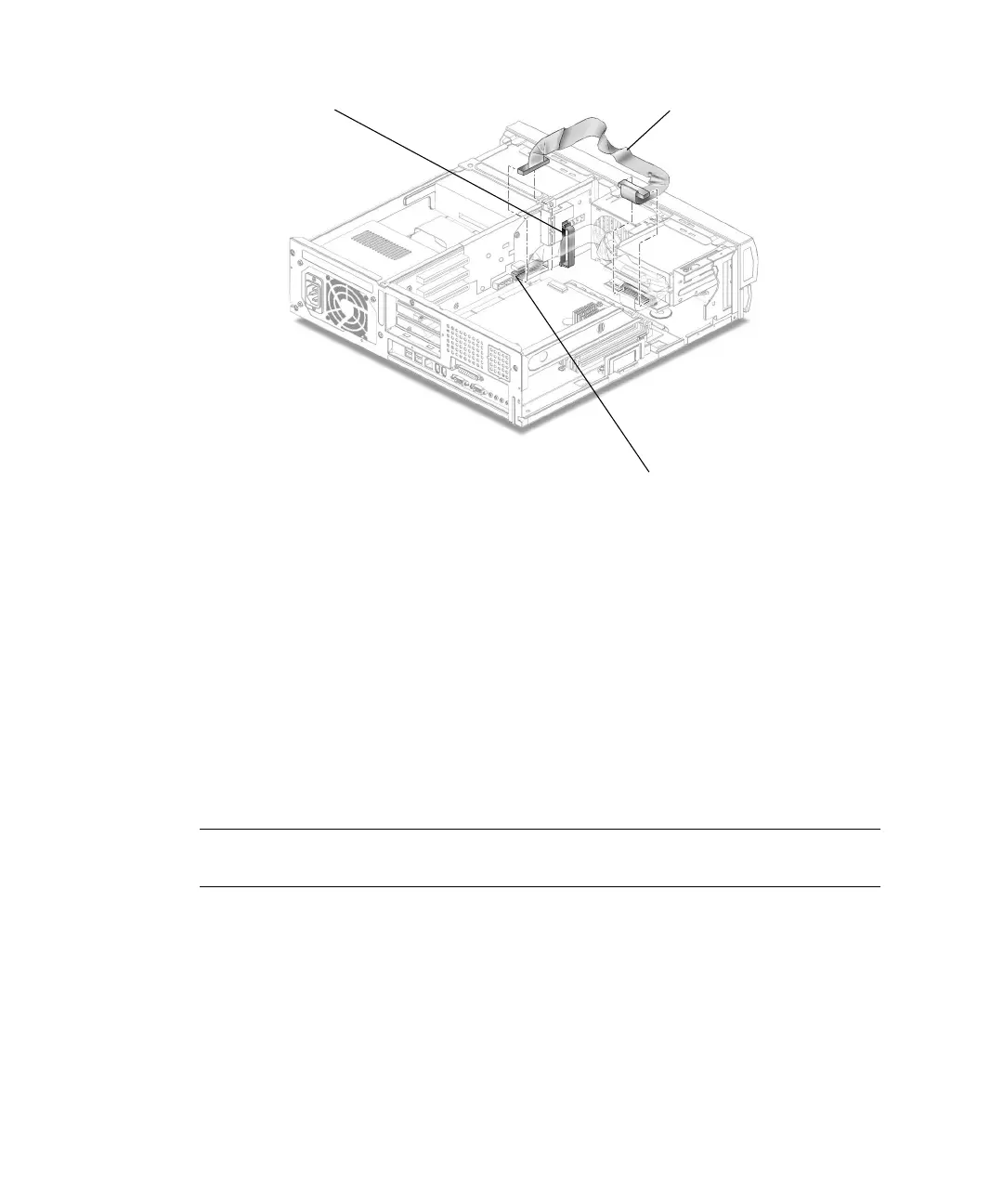

FIGURE 6-2 Removing and Replacing the Diskette Drive Data Cable Assembly
6.2.2 Replacing the Diskette Drive Data Cable
Assembly
1. Position the diskette drive data cable assembly into the chassis (FIGURE 6-2).
2. Close the two cable routing clips (
FIGURE 6-2).
3. Connect the diskette drive data cable assembly connectors to the following:
■ Riser board (J9)
■ Diskette drive
Note – Ensure that the cable assembly connectors are properly oriented by aligning
the connector keys.
4. If you moved the fan assembly, replace it.
See “Replacing the Fan Assembly” on page 6-16.
5. Detach the wrist strap, replace the system cover, and power on the system as
described in Chapter 9.
Diskette drive data cable
Cable routing clip
J9 connector
