C-4 Sun Blade 150 Service Manual • June 2002
C.3 Riser Board
The following figures illustrate the layout diagram of the riser board.

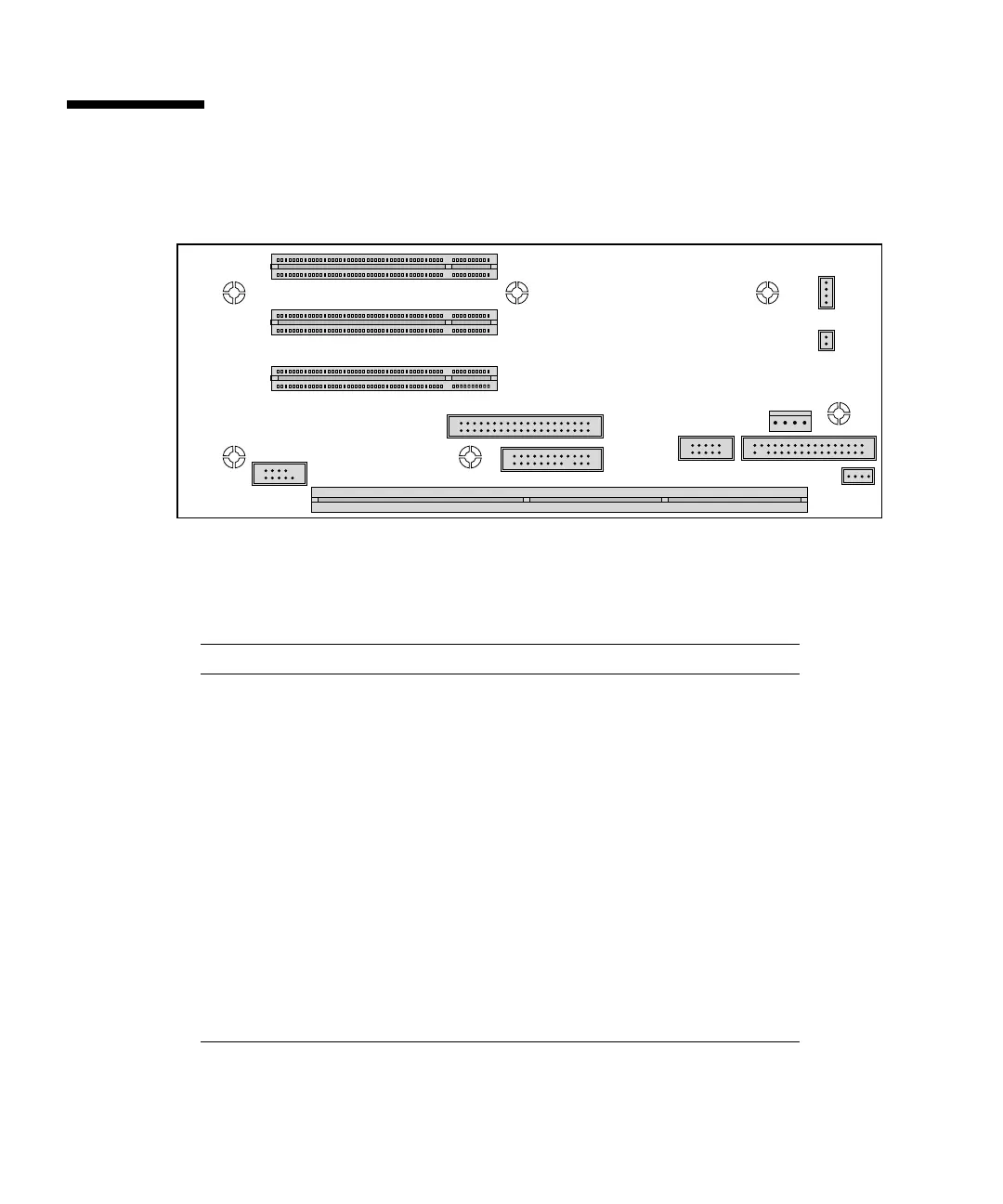

FIGURE C-3 Riser Board Layout Diagram, Side 1
TABLE C-1 Riser Board Connectors, Side 1
Connector Description
J1 PCI connector
J2 Power/LED connector
J3 PCI connector
J4 Fan connector
J5 PCI connector
J6 Debug connector
J7 Debug connector
J8 Smart card connector
J9 Diskette drive data connector
J10 Diskette drive power connector
J12 Speaker connector
13 (Second) Serial Port Connector
J1
J3
J5
J6
J10
J8
J13
J11
J9
J12
J2
J4
J7
PCI
PCI
PCI
