B-4 Sun Blade 150 Service Manual • June 2002
B.2 Universal Serial Bus Connector
Four universal serial bus (USB) connectors are located on the back panel. Two are
used for the Sun USB Type-6 keyboard and the USB mouse.

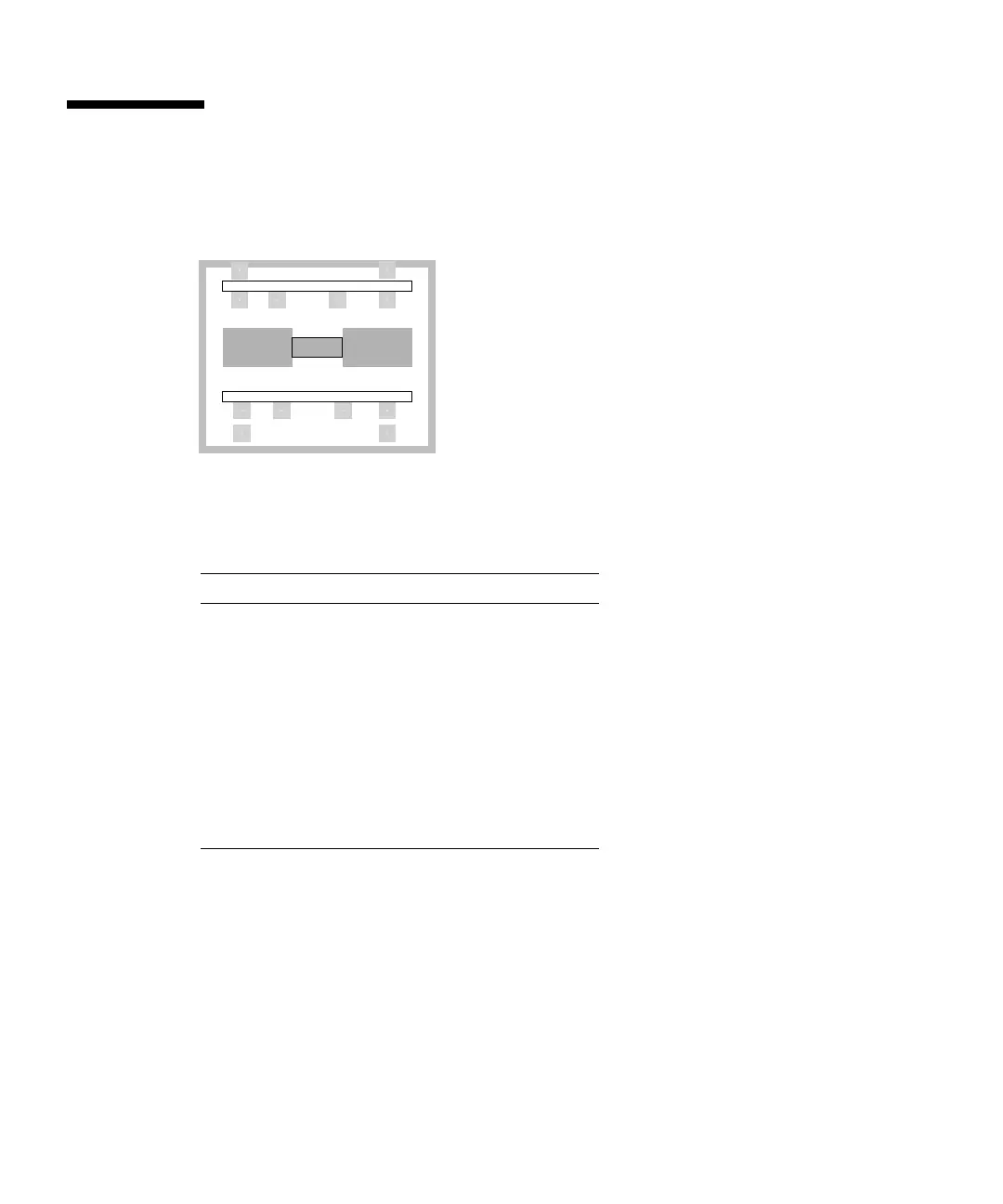

FIGURE B-3 USB Connector J17, J18 Pin Configuration
TABLE B-3 USB Connector J17, J18 Pin Assignments
Pin Signal Name
A1 USB0_VCC
A2 CM_USB_D0_N
A3 CM_USB_D0_P
A4 Gnd
B1 USB1_VCC
B2 CM_USB_D1_N
B3 CM_USB_D1_P
B4 Gnd
1
234
1
234
