B-6 Sun Blade 150 Service Manual • June 2002
B.4 Twisted-Pair Ethernet Connector
The twisted-pair Ethernet (TPE) connector is an RJ-45 type connector located on the
back panel.
Caution – Connect only TPE-type cables into the TPE connector.

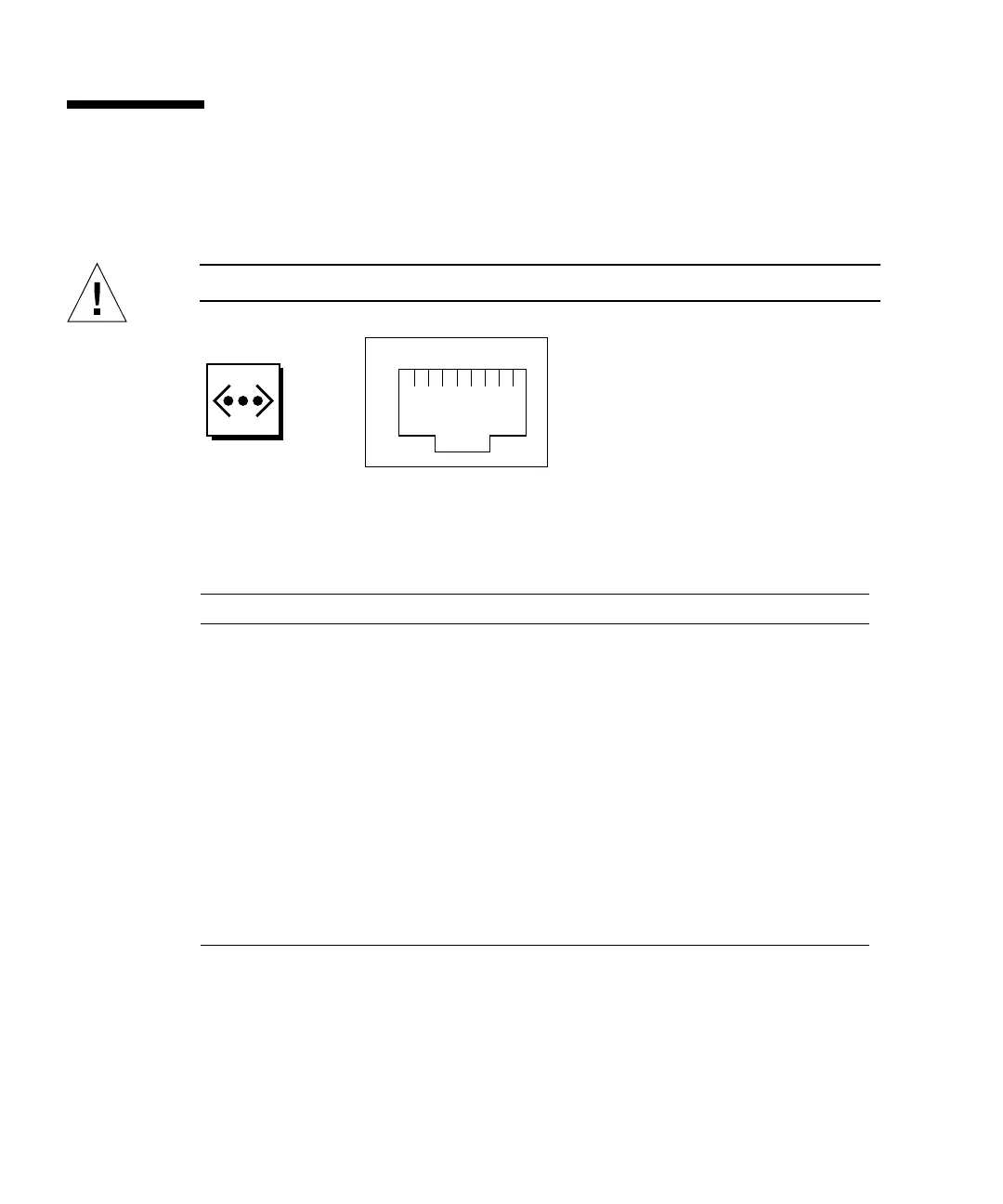

FIGURE B-5 TPE Connector J19 Pin Configuration
TABLE B-5 TPE Connector J19 Pin Assignments
Pin Signal Description
1 tpe0 Transmit data +
2 tpe1 Transmit data -
3 tpe2 Receive data +
4 Common mode termination Termination
5 Common mode termination Termination
6 tpe3 Receive data -
7 Common mode termination Termination
8 Common mode termination Termination
