3-12 IGNITION AND ELECTRICAL
INSTALLATION
Installation is reverse order of removal with the special attention
to the following steps.
Battery & Condenser charge coil/Pulser coil
• Secure coil lead wire with cable ties, then check that coil lead
wire is routed properly and away from hot or rotating parts.

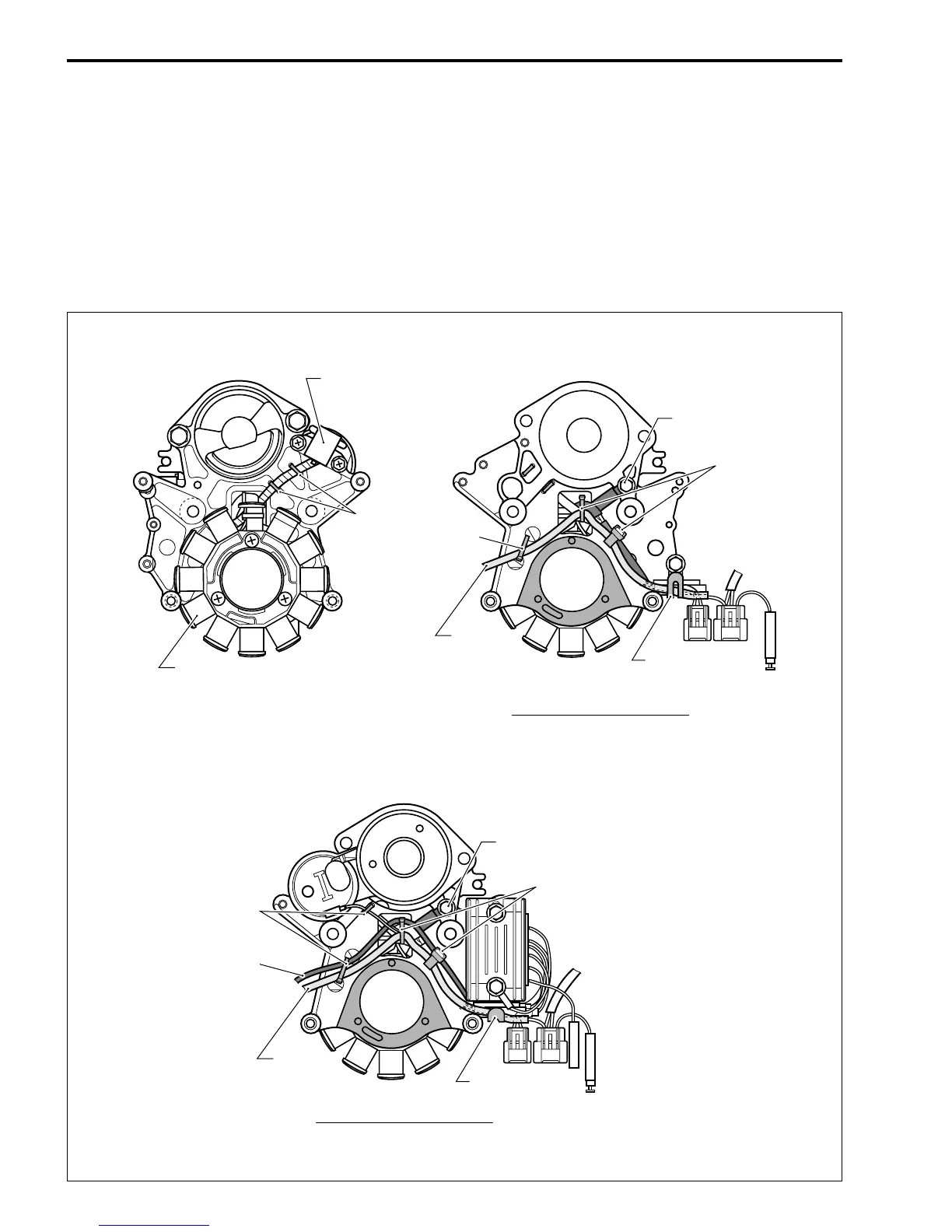

Wire routing
Pulser coil
Pulser coil
ground lead wire/Bolt
Battery & Condenser
charge coil
Main
wiring
harness
Cable tie
Cable tie
Cable tie
Cable tie
Clamp
Pulser coil
ground lead wire/Bolt
Main
wiring
harness
Cable tie
Clamp
Manual starter model
Electric starter model
To PTC heater
(R model)
