Swegon GOLD RX - Dimensions, GOLD CX One-Piece Air Handling Unit with Coil Heat Exchangers

GB.GOLDSKE.160901
110 www.swegon.com
We reserve the right to alter specifications without notice.
76
76
52
52*
200B** 813
GOLD
GOLD
254
28
28*
76
254
76
GOLD
GOLD
B** 200 787

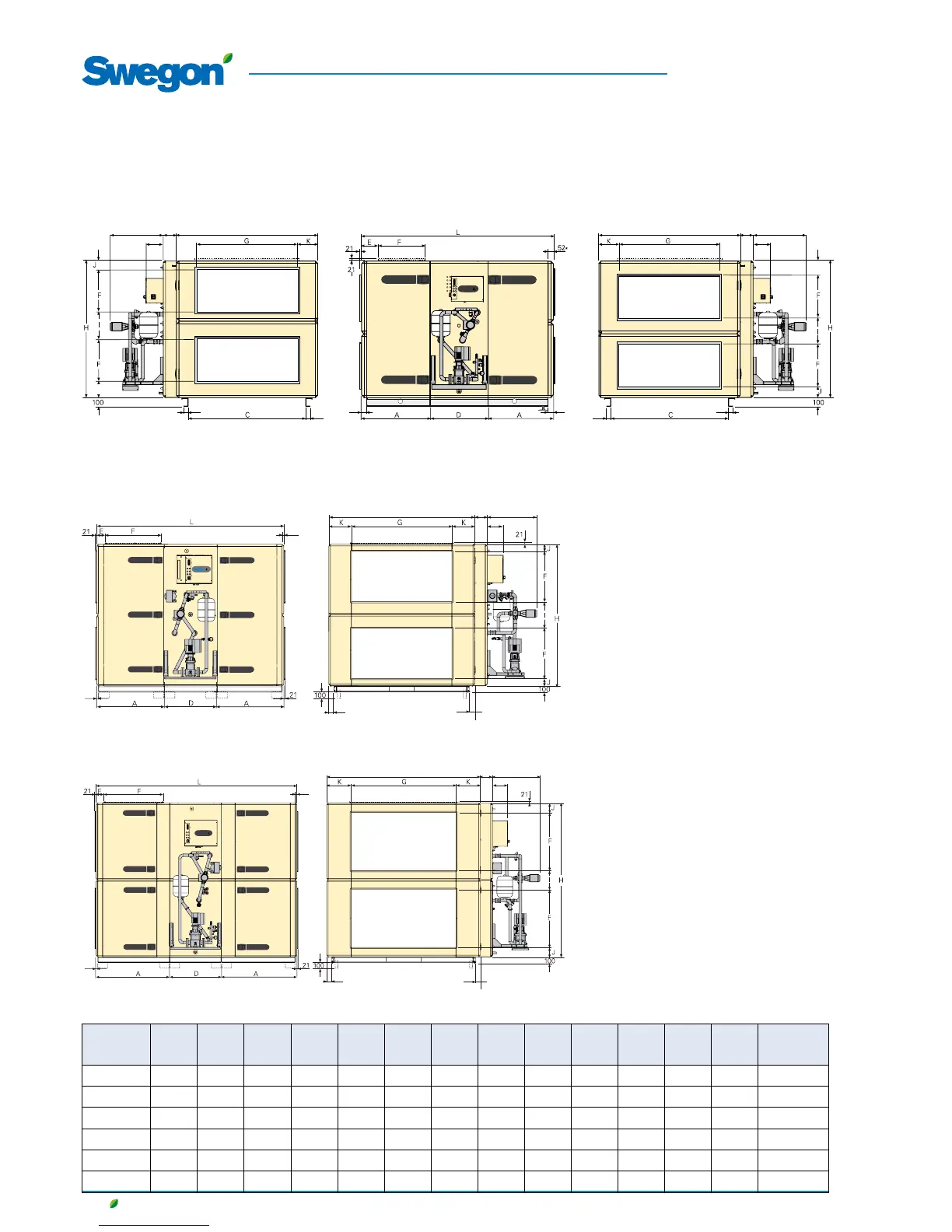

10.3 Dimensions, GOLD CX one-piece air handling unit
with coil heat exchangers
GOLD 35/40
* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.
** Width of centre section's casing = B + 200 mm.
The dimension print shows the connections for Fan Arrangement 1. If the unit has Fan Arrangement 2, the connections are mirror
inverted.
GOLD 70/80
Size A B C D E F G H I J K L N Weight,
kg
35 948 1990 1726 824 200 600 1400 1985 392 153 295 2719 240
1635 -1749
40 948 1990 1726 824 200 600 1400 1985 392 153 295 2719 240
1685-1799
50 1050 2318 – 856 150 800 1600 2253 423 115 360 2956 –
2170-2294
60 1050 2318 – 856 150 800 1600 2253 423 115 360 2956 –
2250-2374
70 1275 2637 – 904 164 1000 1800 2640 319 161 419 3454 –
3156-3308
80 1275 2637 – 904 164 1000 1800 2640 319 161 419 3454 –
3256-3532
* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.
** Width of centre section's casing = B + 200 mm.
GOLD 50/60
* The air handling unit is supplied without end connection panel if a duct accessory housed in an insulated casing will be connected.
** Width of centre section's casing = B + 200 mm.
52
50
50
50
50
52
N
GOLD GOLD
200 771
250
N
200
771
250
B** B**
