7. Maintenance
Warning
Before carrying out any work, make sure that the power
supply to the air handling unit has been switched off.
7.1 Filter Change
Filters made of glass fibre should be replaced, and if a pre-filter
made of woven aluminium is fitted, it should be washed, when
the corresponding filter alarm has been activated.
Order new filters from Swegon or your nearest Swegon rep-
resentative. Specify the size of the GOLD unit, whether the
replacement concerns one or two directions of airflow and if you
are replacing standard filters and/or possibly a pre-filter.
7.1.1 Removing filters
It is advisable to clean inside the filter space while the filters are
removed.
Standard filters:

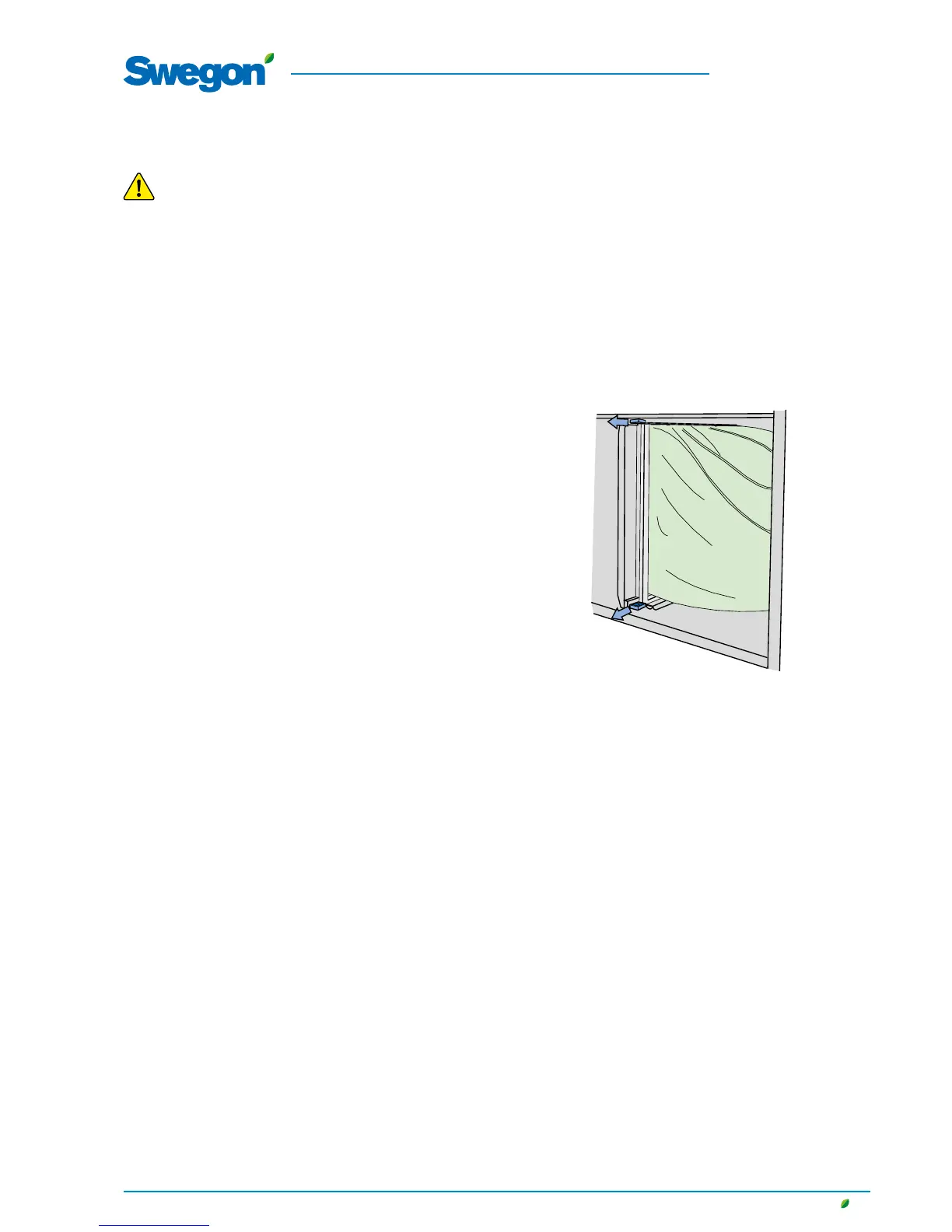

Pull out the handles (A) to free the filters from the filter holder.
Withdraw the filters.
Pre-filters, if required, in the AHU:
Withdraw the filters.
7.1.2 Installing new filters
Standard filter:
Insert the filters into the filter holder At the same time, stretch
the filter bags, so that they will not become caught, damaged or
folded.
Insert the filters as far as possible into the unit and press them
lightly against the filter frames, so that they fit tightly.
Push in the handles (A) to clamp the filters in position in the filter
holder.
Close the inspection doors.
Calibrate the filters as described in Section 6.3.
Possible pre-filters in the AHU:
Insert the filters as far as possible into the unit and press them
lightly against the filter frames, so that they fit tightly
Calibrate the filters as described in Section 6.3.
