2.7.5 GOLD SD separate supply air and extract air handling units, size 11/12

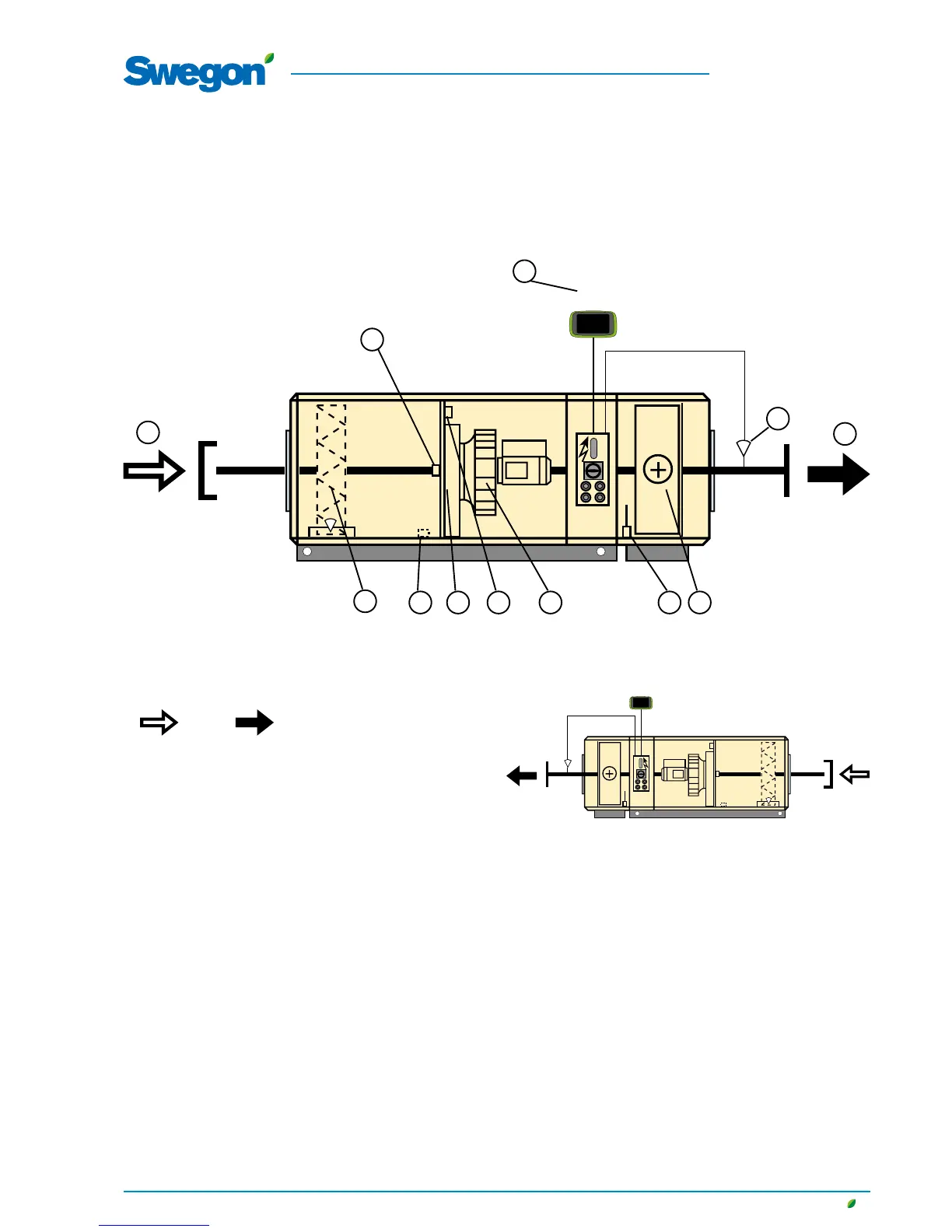

The individual components are each specified below in a simplified and diagrammatical description.
The air handling units can be ordered in the right-hand version
as shown in Fig. 5a or the left-hand version as shown in Fig. 5b.
The air handling units can also consist of filter and fan only or
fan only.
The air handling unit is shown here as a supply air handling unit.
If the unit is used as an extract air handling unit, the components
marked with an asterisk change function and designation (the
components are named according to whether the function is for
supply air or extract air).
The arrangement of the components
and their designations
1 OUTDOOR AIR*
(In extract air units: Extract air)
2 Temperature sensor, outdoor air/air density sensor, supply
air*
(In extract air handling units: Temperature sensor, extract air/
air density sensor, exhaust air)
3 Hand-held terminal
4 Temperature sensor, supply air (to be mounted in supply air
duct)
(Not used in extract air handling units)
5 SUPPLY AIR*
(In extract air handling units: Exhaust air)
6 Coil heat exchanger, supply air*, if applicable
(In extract air handling units: Coil heat exchanger, extract air
)
7 Temperature sensor, outdoor air*
(Only in units with coil heat exchanger)
(In extract air handling units: Temperature/relative humidity
sensor, extract air)
8 Supply air fan* with motor and motor controller
(In extract air handling units: Extract air fan with motor and
motor controller)
9 Pressure sensor, supply air fan* (Position on function selector
switch = 2)
(In extract air handling units: Pressure sensor, extract air fan)
10 Electrical equipm. cubicle with control unit
11 Pressure sensor, supply air filter*, if applicable (Position on
function selecor switch = 3) (In extract air handling units:
Pressure sensor, extract air filter)
12 Supply air filter*, if applicable
(In extract air handling units: Extract air filter)
Outdoor air Supply air
Fig. 5b
Fig. 5a
2
1
3
4
5
89 610 711
12
