6.4.16 ReCO
2
The ReCO
2
function is designed for ensuring the correct
air quality or air temperature, by means of recirculating
extract air and minimizing the infl ow of outdoor air.
The function can be used in ventilation systems in which recircu-
lated air intermixture is acceptable.
The function presupposes that the outdoor air damper and the
damper in the air recirculation section are equipped with modu-
lating damper actuators.
Lower outdoor air and exhaust air fl ows as well as lower extract
air fan speed enable the unit to consume less power. A separate
air quality sensor continuously measures the air quality of the
ventilation system.
The pressure drop across the rotor must then be calibrated to
establish a reference pressure drop for the function. Calibration
is put into effect by setting Calibration to the On position.
For more information, see the ReCO
2
function guide.
Settings:
Value Setting
range
Factory
setting
Regulation mode
CO2/VOC, operating
mode
Inactive/
CO2/VOC /
CO2/VOC and air
fl ow boost
Inactive
Temperature mode Inactive/Heat
sequence/Cool
sequence/Heat and
cool sequence
Inactive
CO2/VOC
Set point 0 - 100% 50%
CO2, set point 0 - 10000 ppm 1000 ppm
VOC, set point 0 - 10000 ppm 1500 ppm
Min. outdoor air
1)
25% of max.
airfl ow for air
handling unit
Min. exhaust air
1)
25% of max.
airfl ow for air
handling unit
Calibration On/Off Off
Temperature
Min. outdoor air
1)
25% of max.
airfl ow for air
handling unit
Min. exhaust air
1)
25% of max.
airfl ow for air
handling unit
Calibration On/Off Off
1)
The setting range is the same as the AHU's min. - max. set-
tings.

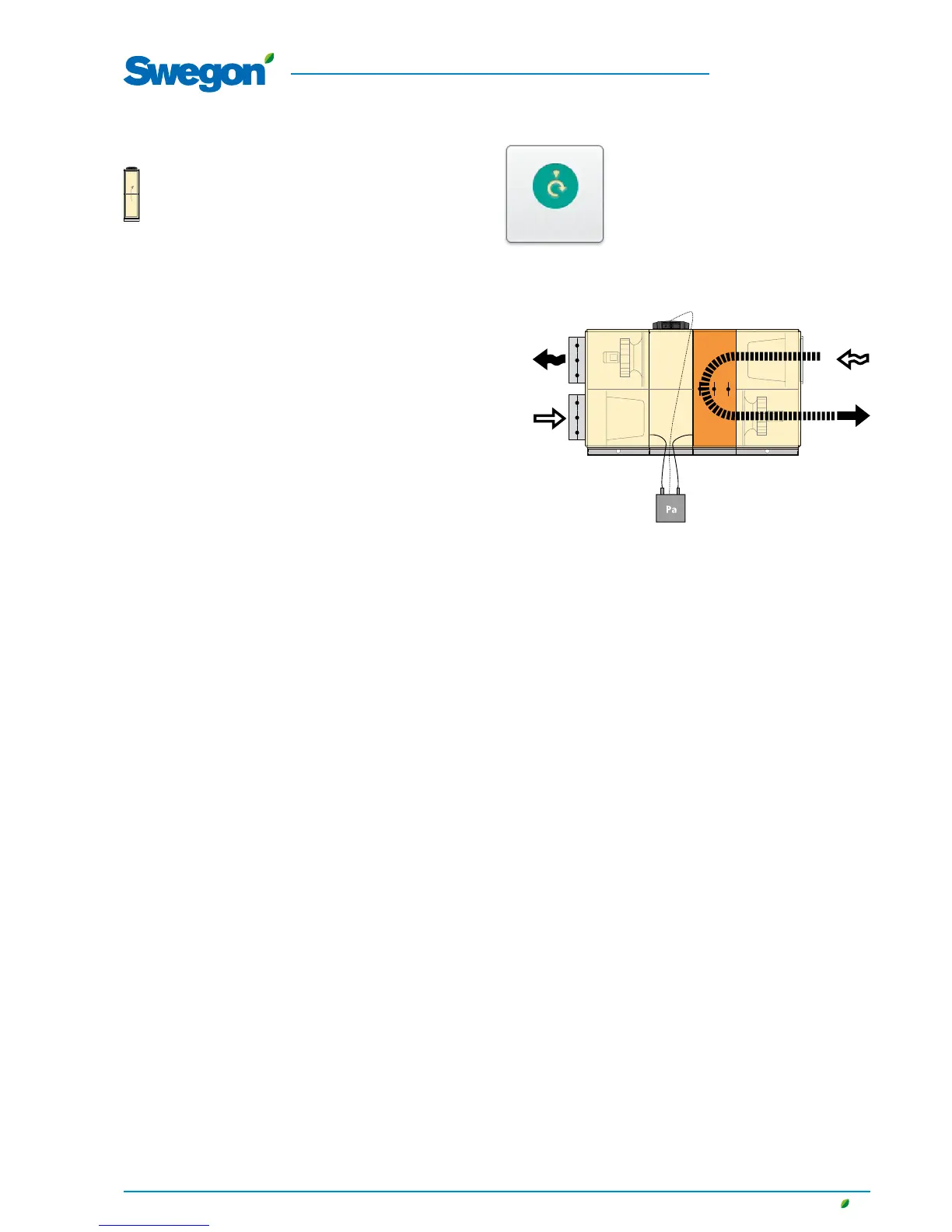

Extract air
Supply air
Exhaust air
Outdoor air
Pressure sensor for outdoor air
measurement
Outdoor airfl ow kept constant by pressure sensor
When the recirculation damper opens the extract air fan speed
decreases and vice versa.
ReCO
2
