Swegon GOLD RX - Connection to Wiring Terminals

GB.GOLDSKE.160901
www.swegon.com 115
We reserve the right to alter specifications without notice.
SD
WLAN
CPU 1
CPU 2
1
A
2
B
3
GND
4
+
5
-
6
+
7
-
8
+
9
-
10
+
11
-
12
+
13
-
SA TempCom 5Com 4Com 3Com 2Com 1
14
+
15
-
16
+
17
-
18
+
19
-
Heat Cool
20
C
21
NO
22
C
23
NO
24
C
25
NO
26
C
27
NO
28
P
29
G
30
G0
31
G
32
G0
24V AC
Sensor 1 Sensor 2 Sensor 4Sensor 3 Com 6 Com 7 Com 8 Com 9 Com 10 Com 11
+
33
-
34
G
35
G0
36
Y
37
U
38 39 40
24V AC In
41 42
18V AC In
45 46
230V AC In
4743 44
230V AC Out

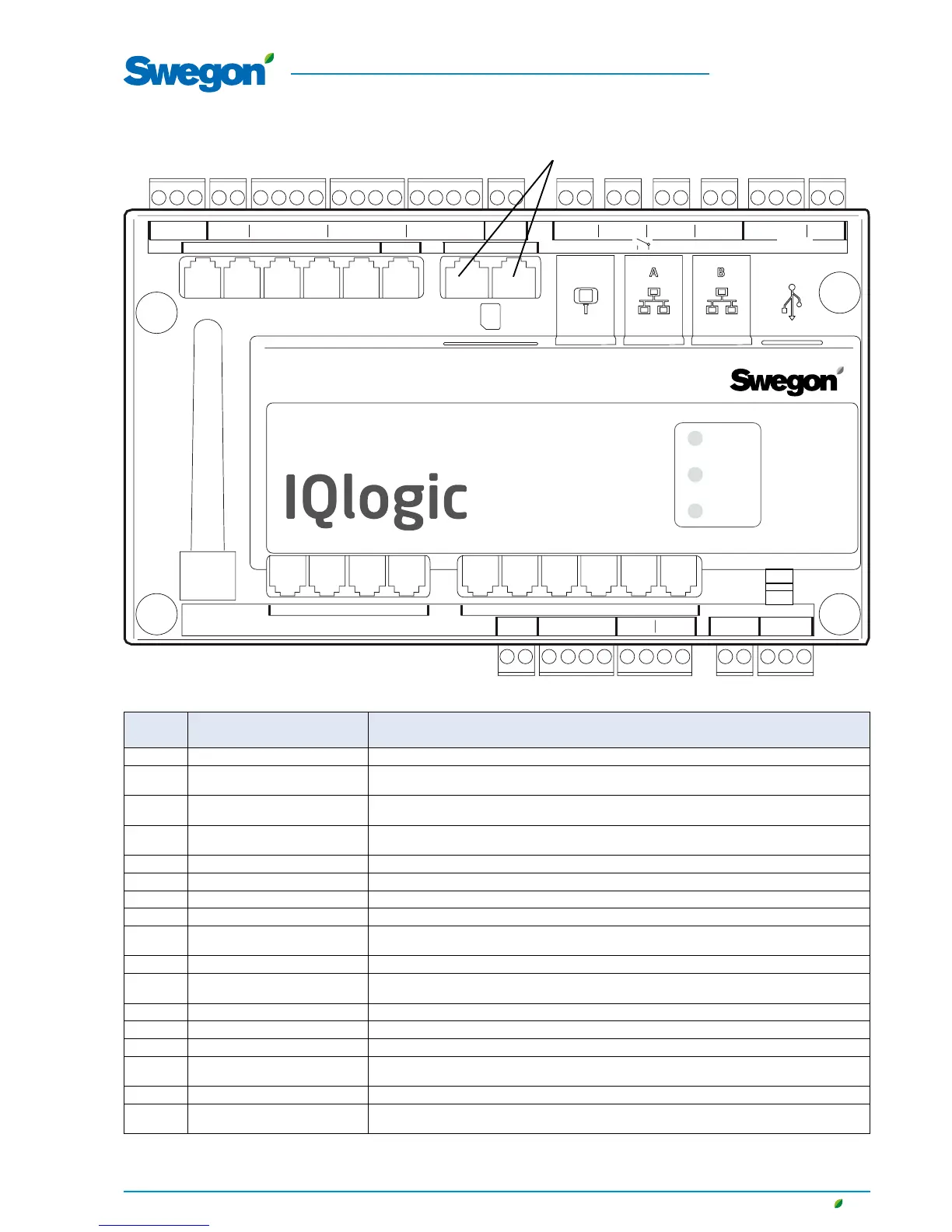

10.5 Connection to wiring terminals
Digital inputs, terminals 4-17, are of extra-low voltage type. Analogue input, terminals 18-19 have an input impedance of 66 kΩ.
230 VAC control voltage is on external terminals 101 (L) and 102 (N).
Wiring
terminal
Function Remarks
1,2,3 Connections for EIA -485 1= Communication connection A/RT+, 2= Communication connection B/RT–, 3= GND/COM.
4,5 External stop Stops the air handling unit by opening the circuit. On delivery, this function is fitted with a jumper. If
the connection is interrupted, the air handling unit will stop.
6,7 External fire/smoke function 1 External fire and smoke function. On delivery, this function is fitted with a jumper. If the connection is
interrupted, the function will trip and initiate an alarm.
8,9 External fire/smoke function 2 External fire and smoke function. On delivery, this function is fitted with a jumper. If the connection is
interrupted, the function will trip and initiate an alarm.
10,11 External alarm 1 External contact function. Optional: Normally open/normally closed.
12,13 External alarm 2 External contact function. Optional: Normally open/normally closed.
14,15 External low speed External contact function. Oversteers the timer from stop to low speed operation.
16,17 External high speed External contact function. Oversteers the timer from stop or low speed to high speed operation.
18,19 Demand control Input for 0-10 VDC. The input signal influences the supply air/extract airflow set point if the unit is
operating in the demand control mode. For connection of a sensor, for example CO
2
, CO and VOC
20,21 Circulation pump, heating circuit Independent contact, max. 5 A/AC1, 2 A/AC3, 250 VAC. Closes on a heating load.
22,23 Circulation pump, cooling circuit or
cooling on/off, 1-step operation
Independent contact, max. 5 A/AC1, 2 A/AC3, 250 VAC. Closes on a cooling load.
24,25 Cooling, on/off, 2-step operation Independent contact, max. 5 A/AC1, 2 A/AC3, 250 VAC. Closes on a cooling load.
26,27 In-operation indication Independent contact, max. 5 A/AC1, 2 A/AC3, 250 VAC. Closes when the unit is operating.
28,29,30 Damper control 24 VAC. 28= Controlled 24 VAC (G), 29= 24 VAC (G), 30= 24 VAC (G0).
31,32 Control voltage
1)
24 VAC control voltage. Terminals 31-32 are loaded with a total of 16 VA. Opened by means of the
safety isolating switch.
33,34 Reference voltage Output for constant 10 VDC. Max. permissible load: 8 mA.
35,36,37,38 Control, recirculation damper The recirculation damper can be loaded with max. 2 mA at 10 VDC. 35= 24 V AC (G), 36= 24 V AC (G0),
37= 0-10 V DC control signal, 38= 0-10 VDC feedback signal.
The max. permissible load on the cor-
responding connection is 16 VA.
Glass fuse, 3.15A
The max permissible common load on terminals 31-32, outputs for Heat/Cool and damper output (terminals 28-30) is max 32 VA (SD) eller 50 VA
(RX/PX/CX).
1)
GOLD 100/120: If more than 16 VA is required, use wiring terminals 201 (G) and 202 (G0). Terminals 201-202 can be loaded with a total of max.
48 VA.
