X = Outdoor air temperature °C
Y = Extract air temperature set point °C
ORE regulation, example
Supply air regulation
Supply air regulation involves maintaining a constant supply air
temperature without consideration to the load in the premises.
Settings:
Value Setting
range
Factory
setting
Supply air (temp. set point) 0-40 °C 21 °C
Extract air regulation
Extract air regulation involves maintaining a constant tempera-
ture in the extract air duct (the premises), by regulating the
supply air temperature.
Settings:
Value Setting
range
Factory
setting
Extract air (temp. set point) 0-40 °C 21 °C
Supply air, min. 0-20 °C 15 °C
Supply air, max. 8-50 °C 28 °C

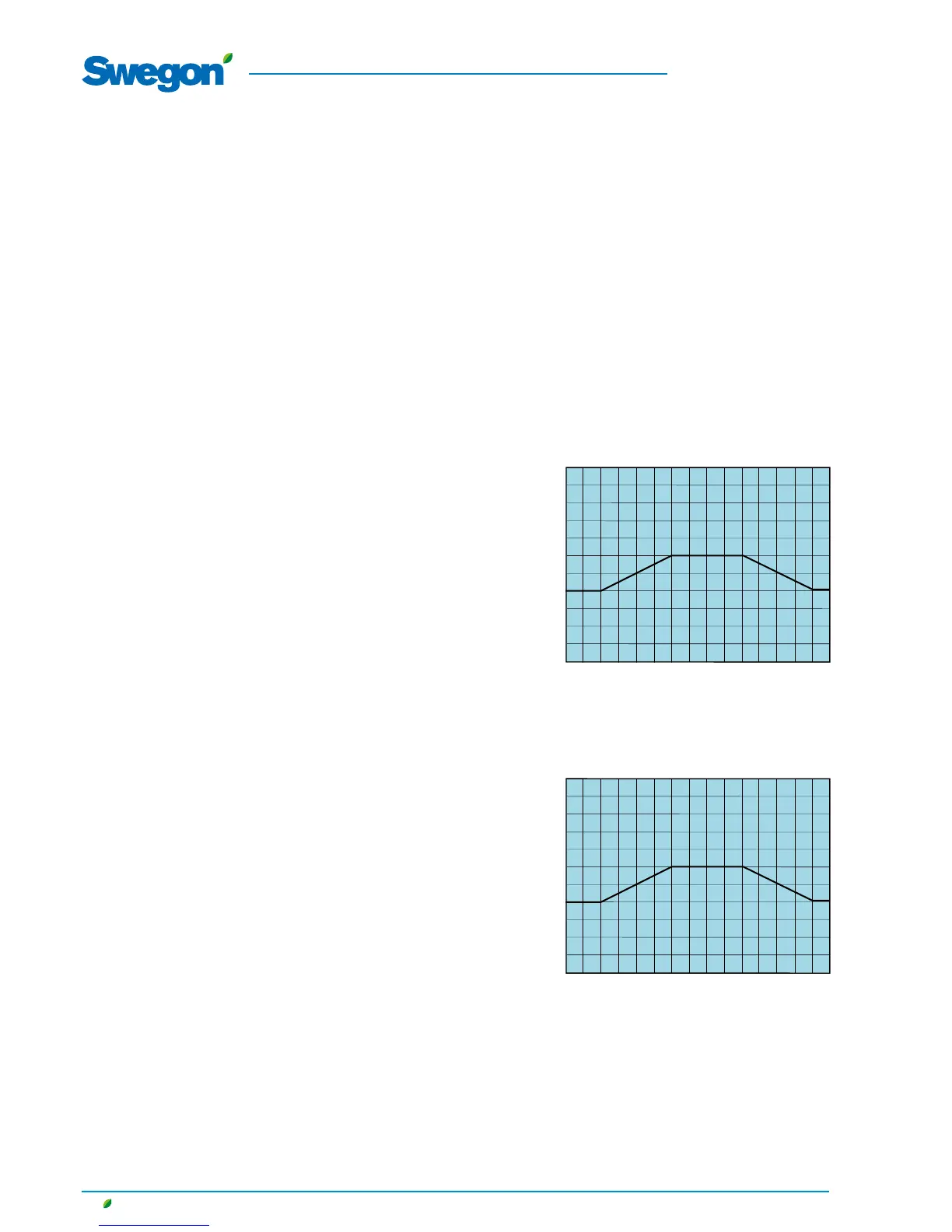

ORS regulation
An individually adjusted curve regulates the ratio between the
outdoor air and the supply air temperature. The curve has four
adjustable breakpoints.
Settings (see also diagram to the right):
Value Setting
range
Factory
setting
Outdoor air temperature
Outdoor related supply air X1 -50 – +50 °C -20 °C
Outdoor related supply air X2 -50 – +50 °C -10 °C
Outdoor related supply air X3 -50 – +50 °C 10 °C
Outdoor related supply air X4 -50 – +50 °C 20 °C
Supply air temperature set point
Outdoor related supply air Y1 10 – 40 °C 21.5 °C
Outdoor related supply air Y2 10 – 40 °C 21.5 °C
Outdoor related supply air Y3 10 – 40 °C 21.5 °C
Outdoor related supply air Y4 10 – 40 °C 21.5 °C
ORE regulation
An individually adjusted curve regulates the ratio between the
outdoor air and the extract air temperature. The curve has four
adjustable breakpoints.
Settings (see also diagram to the right):
Value Setting
range
Factory
setting
Supply air, min. 0 – 20 °C 16 °C
Supply air, max. 16 – 50 °C 28 °C
Outdoor air temperature
Outdoor related extract air X1 -50 – +50 °C -20 °C
Outdoor related extract air X2 -50 – +50 °C -10 °C
Outdoor related extract air X3 -50 – +50 °C 10 °C
Outdoor related extract air X4 -50 – +50 °C 20 °C
Extract air temperature set point
Outdoor related extract air Y1 10 – 40 °C 21.5 °C
Outdoor related extract air Y2 10 – 40 °C 21.5 °C
Outdoor related extract air Y3 10 – 40 °C 21,5 °C
Outdoor related extract air Y4 10 – 40 °C 21,5 °C
X = Outdoor air temperature °C
Y = Supply air temperature set point °C
ORS regulation, example
1
23
4
15
20
25
-30 -20 -10 0 +30+20+10
1
23
4
15
20
25
-30 -20 -10 0 +30+20+10
