X = Outdoor air temperature °C
Y = Extract air temperature set point °C
ORE regulation
ORS regulation
ORS regulation refers to Outdoor air temperature-Related Supply
air temperature regulation. This means that the temperature of
the supply air is regulated in relation to the temperature of the
outdoor air.
An individually adjusted curve regulates the ratio between the
supply air and the outdoor air temperature. The curve has four
adjustable breakpoints.

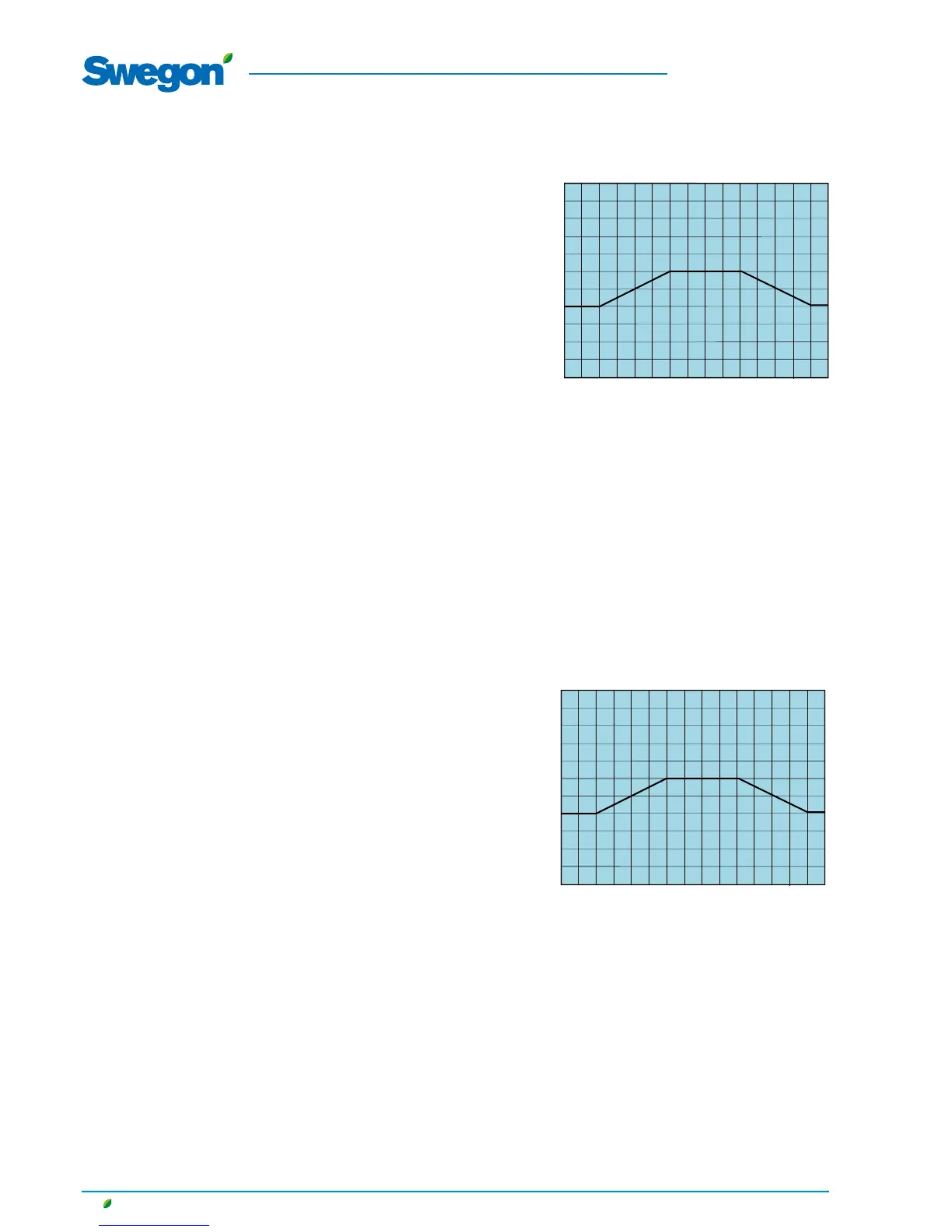

Settings (see also diagram to the right):
Value Setting
range
Factory
setting
Outdoor air temperature
Outdoor related supply air X1 -50 – +50 °C -20 °C
Outdoor related supply air X2 -50 – +50 °C -10 °C
Outdoor related supply air X3 -50 – +50 °C 10 °C
Outdoor related supply air X4 -50 – +50 °C 20 °C
Supply air temperature set point
Outdoor related supply air Y1 10 – 40 °C 21.5 °C
Outdoor related supply air Y2 10 – 40 °C 21.5 °C
Outdoor related supply air Y3 10 – 40 °C 21.5 °C
Outdoor related supply air Y4 10 – 40 °C 21,5 °C
X = Outdoor air temperature °C
Y = Supply air temperature set point °C
ORS regulation
1
23
4
15
20
25
-30 -20 -10 0 +30+20+10
1
23
4
15
20
25
-30 -20 -10 0 +30+20+10
Example:
If the outdoor air temperature is under -30 °C (X1), the supply
air temperature set point will constantly be 18 °C (Y1).
If the outdoor air temperature is between -30 °C (X1) and -10
°C (X2), the supply air temperature set point is regulated from
18 °C (Y1) up to 20 °C (Y2) as shown in the curve.
If the outdoor temperature is between -10 °C (X2) and +10 °C
(X3) the supply air set point will constantly be 20 °C (Y3).
If the outdoor air temperature is between +10 °C (X3) and +30
°C (X4), the supply air temperature set point is regulated from
20 °C (Y3) down to 18 °C (Y4) as shown in the curve.
If the outdoor air temperature is over 30 °C (X4), the supply air
temperature set point will constantly be 18 °C (Y4).
Example:
If the outdoor air temperature is under -30 °C (X1), the extract
air temperature set point will constantly be 18 °C (Y1).
If the outdoor air temperature is between -30 °C (X1) and -10
°C (X2), the extract air temperature set point is regulated from
18 °C (Y1) up to 20 °C (Y2) as shown in the curve.
If the outdoor temperature is between -10 °C (X2) and +10 °C
(X3) the extract air set point will constantly be 20 °C (Y3).
If the outdoor air temperature is between +10 °C (X3) and +30
°C (X4), the extract air temperature set point is regulated from
20 °C (Y3) down to 18 °C (Y4) as shown in the curve.
If the outdoor air temperature is over 30 °C (X4), the extract air
temperature set point will constantly be 18 °C (Y4).
ORE regulation
ORE regulation refers to Outdoor air temperature-Related Extract
air temperature regulation. This means that the extract air tem-
perature is regulated in relation to the outdoor air temperature.
An individually adjusted curve regulates the ratio between the
extract air and the outdoor air temperature. The curve has four
adjustable breakpoints.
Settings (see also diagram to the right):
Value Setting
range
Factory
setting
Supply air, min. 0 – 20 °C 16 °C
Supply air, max. 16 – 50 °C 28 °C
Outdoor air temperature
Outdoor related extract air X1 -50 – +50 °C -20 °C
Outdoor related extract air X2 -50 – +50 °C -10 °C
Outdoor related extract air X3 -50 – +50 °C 10 °C
Outdoor related extract air X4 -50 – +50 °C 20 °C
Extract air temperature set point
Outdoor related extract air Y1 10 – 40 °C 21.5 °C
Outdoor related extract air Y2 10 – 40 °C 21,5 °C
Outdoor related extract air Y3 10 – 40 °C 21,5 °C
Outdoor related extract air Y4 10 – 40 °C 21,5 °C
