Symmetricom TimeSource 3100 User Guide

097-72020-01 Revision K – December 2005 TimeSource 3100 User’s Guide 179
Chapter 6 Specifications
Time of Day Outputs
Time of Day Outputs
Network Time Protocol (NTP) Type 4, Format 2 Driver Format
Connector Type: RJ-45
Connector Label: TOD
Connector Location: Connector panel
Electrical Interface: RS-485
Baud Rate: 9600 b/s
Data Bits: 8
Parity Bit: None
Stop Bit: 1
Data Format: See Figure 6-1

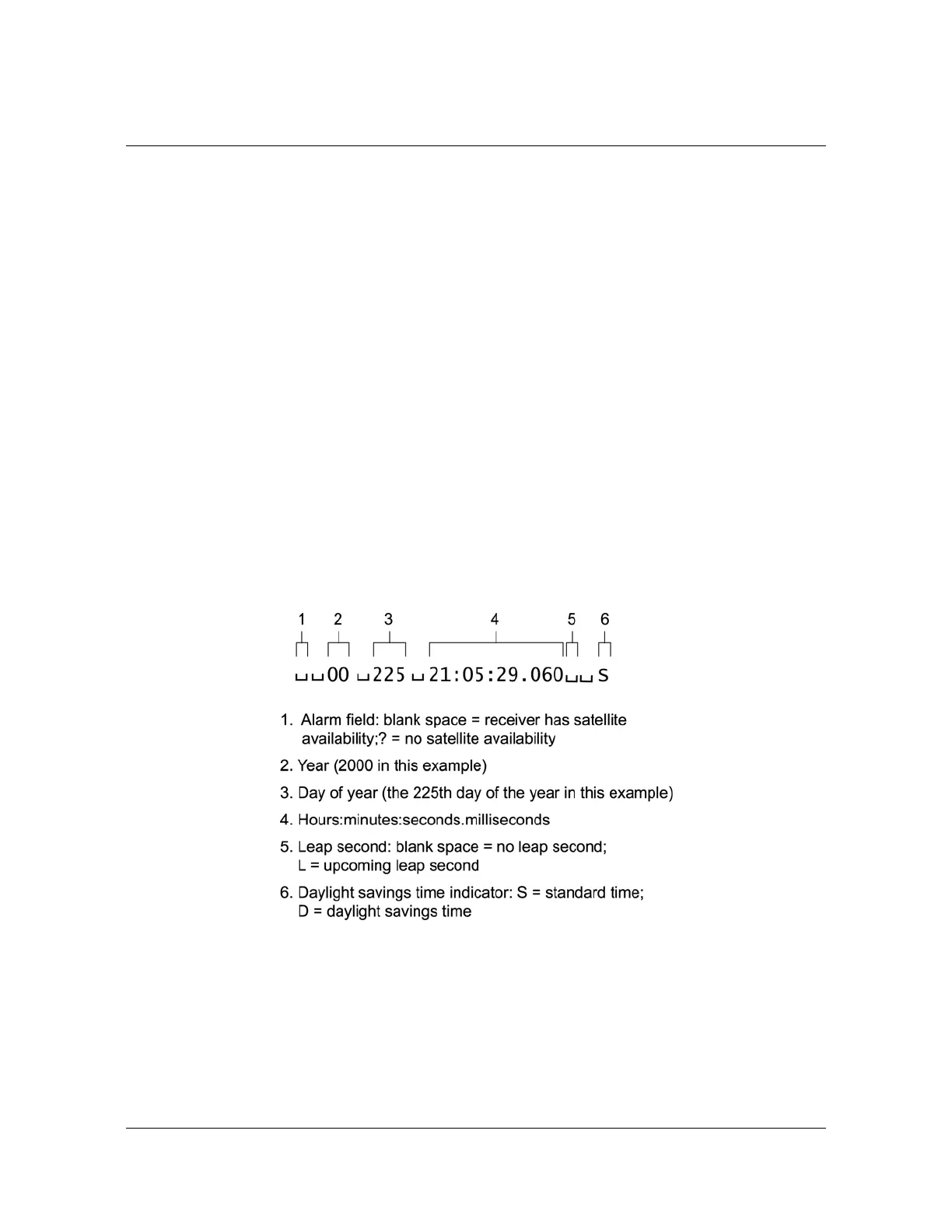

Figure 6-1. NTP Type 4 Data Format
