Symmetricom TimeSource 3100 User Guide

Chapter 3 Installing the TimeSource 3100
Making Cable Connections
62 TimeSource 3100 User’s Guide 097-72020-01 Revision K – December 2005
Installing the Mixed E1/T1 Output Module
Connect the optional eight mixed El/T1 outputs with the wire-wrap output module.
See Figure 3-8 for the connector location, and Figure 3-14 for the connections.

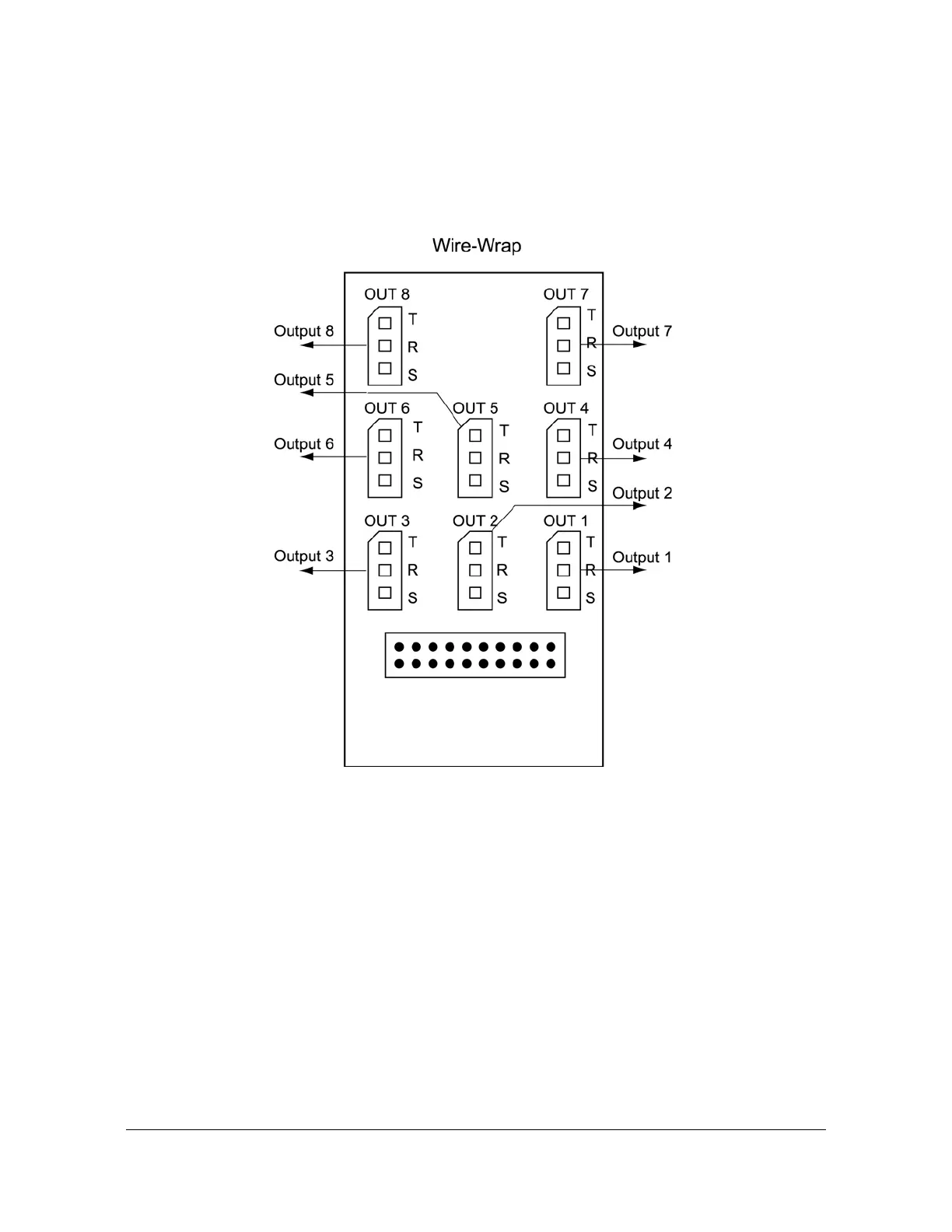

Figure 3-14. Eight Mixed E1/T1 Output Connections
Installing the IRIG-B TOD Output Module
Connect the four optional IRIG-B TOD outputs with the IRIG-B output module. See
Figure 3-8 for the connector location, and Figure 3-15 for the connections.
