Chapter 3 Installing the TimeSource 3100
Making Cable Connections
60 TimeSource 3100 User’s Guide 097-72020-01 Revision K – December 2005

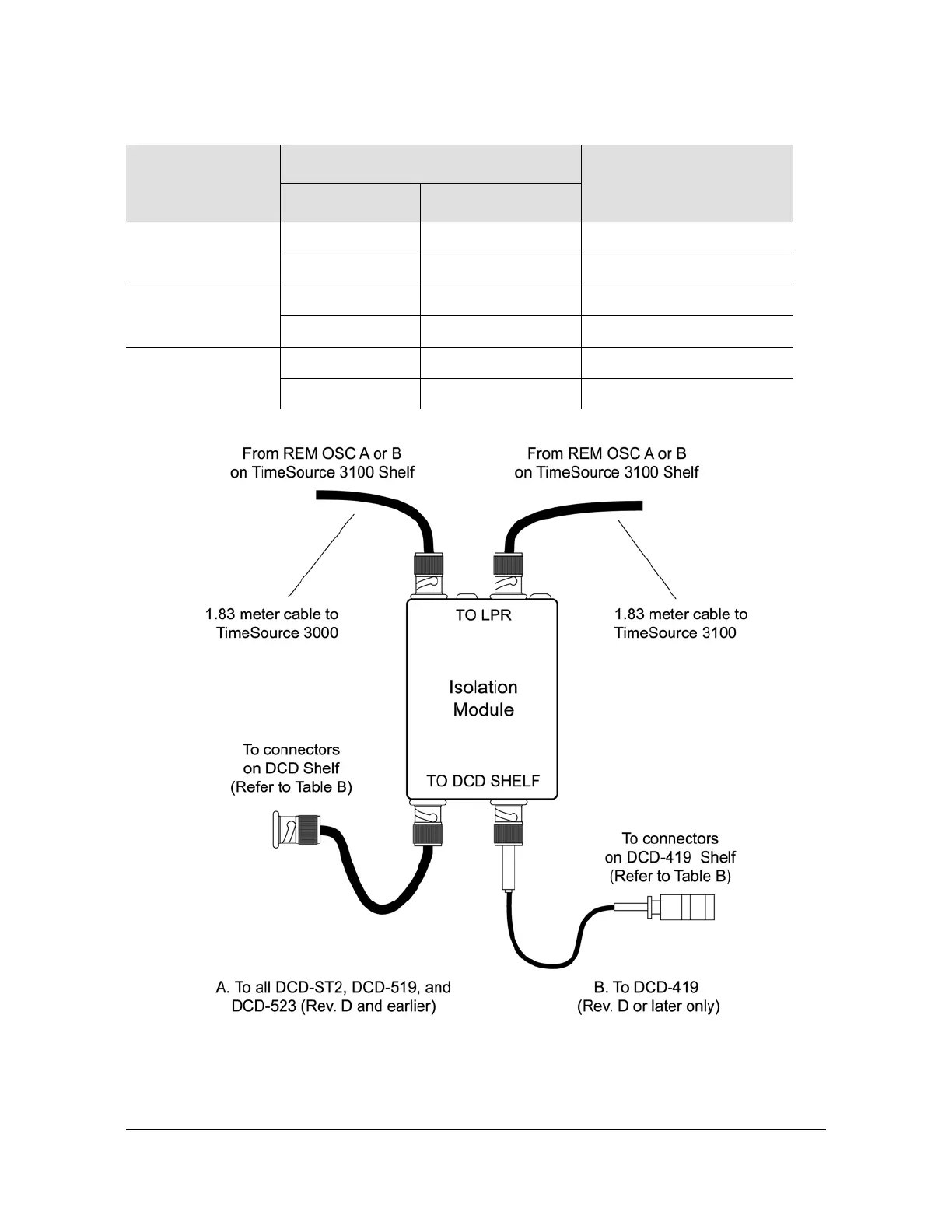

Figure 3-12. DCD Shelf, Isolation Module, and TimeSource 3100 Connections
DCD-419
J35 Not Labeled REM OSC A
J36 Not Labeled REM OSC B
DCD-523
J61 OSC A OUT REM OSC A
J62 OSC B OUT REM OSC B
DCD-519
J44 OSC A OUT REM OSC A
J45 OSC B OUT REM OSC B
Table 3-1. DCD Connections to the TimeSource 3100 (Continued)
DCD Shelf Type
From DCD Shelf
To TimeSource 3100
Connector
Connector Label
