Symmetricom TimeSource 3100 User Guide

Chapter 3 Installing the TimeSource 3100
Making Cable Connections
72 TimeSource 3100 User’s Guide 097-72020-01 Revision K – December 2005

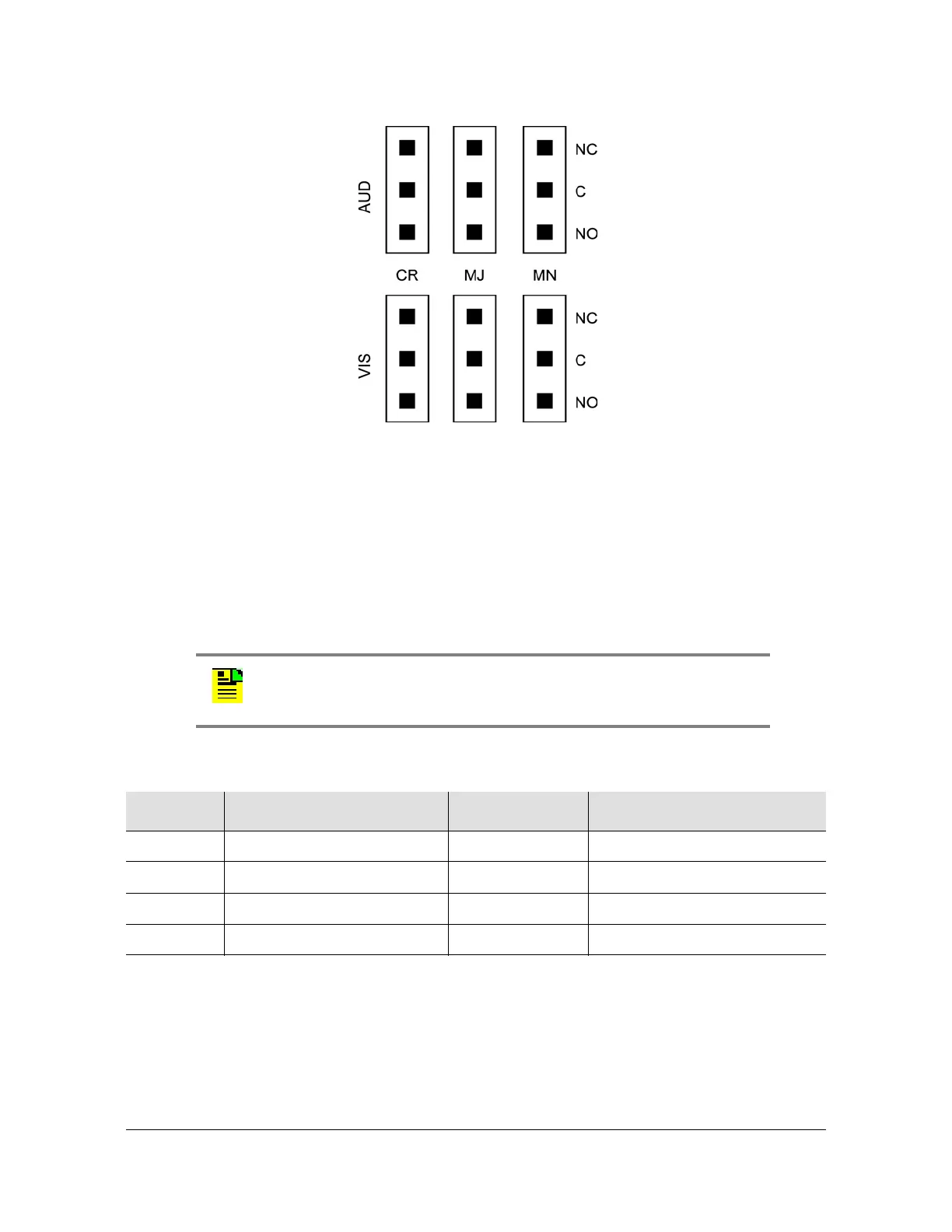

Figure 3-21. Alarm Connector
Making Craft Port Connections
To provide an RS-232 link for TL1 command access to the TimeSource 3100,
connect to the craft port at the female RJ-45 connector labeled Craft on the front
panel. A Craft-port-to-PC cable is supplied with the TimeSource 3100 for making
this connection. See Figure 3-8 for the location of the connector, and Table 3-7 for
the connector pinouts.
Note: Pins not listed are reserved for future use.
Note: The Craft connector transmits data on pin 2 and receives data
on pin 3. Be sure the other equipment receives data from the
transmitting pin, and transmits data to the receiving pin.
Table 3-7. COM 1 Connector Pinout
Pin Signal Abbreviation Direction
2 Transmit data TXD From TimeSource 3100
3 Receive data RXD To TimeSource 3100
5 Signal ground GND —
6 Data terminal ready DTR From TimeSource 3100
